Overview

Avenue Metro Vitality's modular design and replaceable components make upgrades and regeneration possible. Designed for circular buildings of the future it is supported by independent accreditation achieving Cradle to Cradle® certification at the bronze level along with a material passport to aid reuse, regeneration and recycling at the end of the product's life.

Optics

Opal optic for general, circulation and feature areas
Hexaprism and Pod optics for visual comfort and optimum glare control in office environments and EN12464-1 and LG compliant schemes
TP(a) rated polycarbonate diffusers
White pod optic (RAL 9003)
4000K 'cool' white LEDs
Ra80 standard, Ra90 available on request
E-Light LEDS
Medium (Hexaprism and Pod) and high (Opal) outputs available
Typical lumens per metre (based on 3m luminaire length:)
- Pod - Medium Output - 1933 lumens
- Prismatic - Medium Output - 1610 lumens
- Opal - High Output - 2840 lumens

For specific product variant information, including lifetime, efficacy, power, output and electrical data, please click on the individual part number under 'Order Codes' and view the datasheet

Luminaire Outputs
	Pod	Hexaprism	Opal
	(Medium Output)	(Medium Output)	(High Output)
1250mm	2416lm (20W)	2012lm (18.5W)	3550lm (28.6W)
1500mm	2900lm (28W)	2415lm (22.4W)	4260lm (36.4W)
2000mm	3866lm (28W)	3220lm (30W)	5680lm (50W)
3000mm	5799lm (28W)	4830lm (44.3W)	8520lm (70W)
Emergency Outputs
	Pod	Hexaprism	Opal
	300lm	270lm	360lm

Body

Modular design to support future upgrades and regeneration
IP44
Extruded aluminium body with die cast end caps
Integral emergency options; 3 hour and addressable COMEPS, using Lithium Ion Phosphate batteries

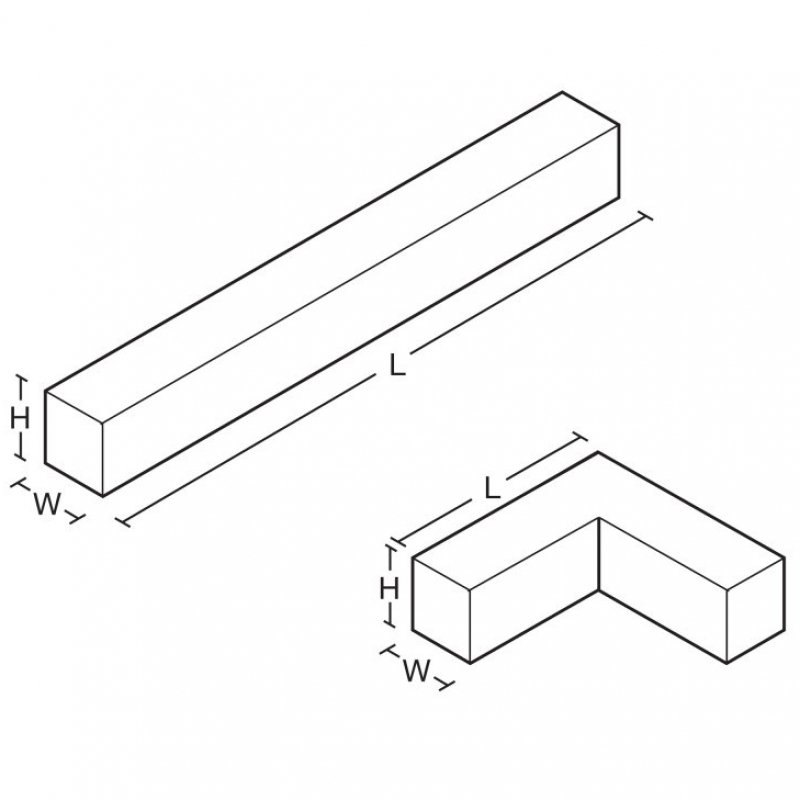

Body lengths up to 3m, a 1.25m body allows any length over 2m to be achieved in 0.25m increments
Corner units for creating signature shapes*
Optional integral Organic Response® wireless sensor that communicates with its neighbouring luminaires, automatically controlling light across the area†
Recessed mounting kit supplied with luminaire
End caps and continuous joining kits supplied separately
Suspended and Surface options also available

Accessories

White End Cap Kit (Pair) AORENDCW
Continuous Mounting Kit AOCMOKIT

* Corner units for the Pod optic system are blank infills and not illuminated

† Every luminaire within an area to be controlled must have an integral Organic Response® detector. Wall switch and dongle are also available (supplied separately)

Note: DALI luminaires require 1 DALI address per driver. COMEPS addressable emergency variants will require an additional DALI address.

Enquire about this product

Family Datasheet

Product Downloads

Customise your solution

Explore custom made

Create your own

Customise this product

Enquire now Find out more

Looking for a custom made solution?

Our Custom Made facility caters to your unique requirements, whether you need completely bespoke luminaires or adaptations to standard products. Please complete the form below and we will be in touch to discuss your unique requirements.

full width image

Continuous POD 1.25m Number of Parts 6

Click on part code below for downloads

Part Code	Product Colour	Colour Temperature	Optic	Length (mm)	Nominal Lumens (per m)	Output (lm)	Power (W)	Emergency Type	Integral Controls
AOVPRYA24KW	White	4000K, Ra80	Pod	1250	1501 - 2500	2416	20.8	N/A	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2416},{"Name":"Circuit Watts","Value":20.800000000000000710542735760100185871124267578125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":116.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRYA24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRYA24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRYA24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVPRYA24KWEM	White	4000K, Ra80	Pod	1250	1501 - 2500	2416	20.8	3 hr EM LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":300},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2416},{"Name":"Circuit Watts","Value":20.800000000000000710542735760100185871124267578125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":116.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRYA24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRYA24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRYA24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVPRYA24KWEP	White	4000K, Ra80	Pod	1250	1501 - 2500	2416	20.8	3 hr EP LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":300},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2416},{"Name":"Circuit Watts","Value":20.800000000000000710542735760100185871124267578125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":116.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRYA24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRYA24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRYA24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVPRRG3YA24KW	White	4000K, Ra80	Pod	1250	1501 - 2500	2416	20.8	N/A	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2416},{"Name":"Circuit Watts","Value":20.800000000000000710542735760100185871124267578125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":116.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRYA24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRYA24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRYA24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVPRRG3YA24KWEM	White	4000K, Ra80	Pod	1250	1501 - 2500	2416	20.8	3 hr EM LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":300},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2416},{"Name":"Circuit Watts","Value":20.800000000000000710542735760100185871124267578125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":116.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRYA24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRYA24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRYA24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVPRRG3YA24KWEP	White	4000K, Ra80	Pod	1250	1501 - 2500	2416	20.8	3 hr EP LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":300},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2416},{"Name":"Circuit Watts","Value":20.800000000000000710542735760100185871124267578125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":116.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRYA24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRYA24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRYA24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}

Continuous POD 1.5m Number of Parts 6

Click on part code below for downloads

Part Code	Product Colour	Colour Temperature	Optic	Length (mm)	Nominal Lumens (per m)	Output (lm)	Power (W)	Emergency Type	Integral Controls
AOVPRYB24KW	White	4000K, Ra80	Pod	1500	1501 - 2500	2900	24.7	N/A	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2900},{"Name":"Circuit Watts","Value":24.699999999999999289457264239899814128875732421875},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":117.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRYB24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRYB24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRYB24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVPRYB24KWEM	White	4000K, Ra80	Pod	1500	1501 - 2500	2900	24.7	3 hr EM LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":300},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2900},{"Name":"Circuit Watts","Value":24.699999999999999289457264239899814128875732421875},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":117.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRYB24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRYB24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRYB24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVPRYB24KWEP	White	4000K, Ra80	Pod	1500	1501 - 2500	2900	24.7	3 hr EP LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":300},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2900},{"Name":"Circuit Watts","Value":24.699999999999999289457264239899814128875732421875},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":117.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRYB24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRYB24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRYB24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVPRRG3YB24KW	White	4000K, Ra80	Pod	1500	1501 - 2500	2900	24.7	N/A	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2900},{"Name":"Circuit Watts","Value":24.699999999999999289457264239899814128875732421875},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":117.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRYB24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRYB24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRYB24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVPRRG3YB24KWEM	White	4000K, Ra80	Pod	1500	1501 - 2500	2900	24.7	3 hr EM LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":300},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2900},{"Name":"Circuit Watts","Value":24.699999999999999289457264239899814128875732421875},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":117.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRYB24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRYB24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRYB24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVPRRG3YB24KWEP	White	4000K, Ra80	Pod	1500	1501 - 2500	2900	24.7	3 hr EP LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":300},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2900},{"Name":"Circuit Watts","Value":24.699999999999999289457264239899814128875732421875},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":117.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRYB24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRYB24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRYB24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}

Continuous POD 2m Number of Parts 6

Click on part code below for downloads

Part Code	Product Colour	Colour Temperature	Optic	Length (mm)	Nominal Lumens (per m)	Output (lm)	Power (W)	Emergency Type	Integral Controls
AOVPRY224KW	White	4000K, Ra80	Pod	2000	1501 - 2500	3866	33.2	N/A	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3866},{"Name":"Circuit Watts","Value":33.2000000000000028421709430404007434844970703125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":116.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRY224KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRY224KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRY224KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVPRY224KWEM	White	4000K, Ra80	Pod	2000	1501 - 2500	3866	33.2	3 hr EM LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":300},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3866},{"Name":"Circuit Watts","Value":33.2000000000000028421709430404007434844970703125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":116.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRY224KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRY224KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRY224KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVPRY224KWEP	White	4000K, Ra80	Pod	2000	1501 - 2500	3866	33.2	3 hr EP LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":300},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3866},{"Name":"Circuit Watts","Value":33.2000000000000028421709430404007434844970703125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":116.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRY224KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRY224KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRY224KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVPRRG3Y224KW	White	4000K, Ra80	Pod	2000	1501 - 2500	3866	33.2	N/A	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3866},{"Name":"Circuit Watts","Value":33.2000000000000028421709430404007434844970703125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":116.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRY224KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRY224KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRY224KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVPRRG3Y224KWEM	White	4000K, Ra80	Pod	2000	1501 - 2500	3866	33.2	3 hr EM LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":300},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3866},{"Name":"Circuit Watts","Value":33.2000000000000028421709430404007434844970703125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":116.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRY224KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRY224KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRY224KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVPRRG3Y224KWEP	White	4000K, Ra80	Pod	2000	1501 - 2500	3866	33.2	3 hr EP LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":300},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3866},{"Name":"Circuit Watts","Value":33.2000000000000028421709430404007434844970703125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":116.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRY224KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRY224KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRY224KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}

Continuous POD 3m Number of Parts 6

Click on part code below for downloads

Part Code	Product Colour	Colour Temperature	Optic	Length (mm)	Nominal Lumens (per m)	Output (lm)	Power (W)	Emergency Type	Integral Controls
AOVPRY324KW	White	4000K, Ra80	Pod	3000	1501 - 2500	5799	48.5	N/A	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5799},{"Name":"Circuit Watts","Value":48.5},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":119.599999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRY324KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRY324KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRY324KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVPRY324KWEM	White	4000K, Ra80	Pod	3000	1501 - 2500	5799	48.5	3 hr EM LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":300},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5799},{"Name":"Circuit Watts","Value":48.5},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":119.599999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRY324KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRY324KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRY324KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVPRY324KWEP	White	4000K, Ra80	Pod	3000	1501 - 2500	5799	48.5	3 hr EP LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":300},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5799},{"Name":"Circuit Watts","Value":48.5},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":119.599999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRY324KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRY324KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRY324KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVPRRG3Y324KW	White	4000K, Ra80	Pod	3000	1501 - 2500	5799	48.5	N/A	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5799},{"Name":"Circuit Watts","Value":48.5},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":119.599999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRY324KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRY324KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRY324KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVPRRG3Y324KWEM	White	4000K, Ra80	Pod	3000	1501 - 2500	5799	48.5	3 hr EM LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":300},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5799},{"Name":"Circuit Watts","Value":48.5},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":119.599999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRY324KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRY324KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRY324KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVPRRG3Y324KWEP	White	4000K, Ra80	Pod	3000	1501 - 2500	5799	48.5	3 hr EP LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":300},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5799},{"Name":"Circuit Watts","Value":48.5},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":119.599999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-pod-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVPRY324KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVPRY324KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVPRY324KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}

Corner POD Number of Parts 1

Click on part code below for downloads

Part Code	Product Colour	Colour Temperature	Optic	Length (mm)	Nominal Lumens (per m)	Output (lm)	Power (W)	Emergency Type	Integral Controls
AOPRCW	White	N/A	N/A	520	N/A	N/A	N/A	N/A	N/A	[{"Name":"LED Life Performance","Value":"N\/A"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":"N\/A"},{"Name":"Circuit Watts","Value":"N\/A"},{"Name":"LOR","Value":"N\/A"},{"Name":"Lumen per circuit watt","Value":"N\/A"},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"N\/A"},{"Name":"Gear","Value":"N\/A"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-pod-corner-p1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}

Continuous Hexaprism 1.25m Number of Parts 6

Click on part code below for downloads

Part Code	Product Colour	Colour Temperature	Optic	Length (mm)	Nominal Lumens (per m)	Output (lm)	Power (W)	Emergency Type	Integral Controls
AOVHRYA24KW	White	4000K, Ra80	Hexaprism Diffuser	1250	1501 - 2500	2012	18.5	N/A	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2012},{"Name":"Circuit Watts","Value":18.5},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":108.7999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRYA24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRYA24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRYA24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVHRYA24KWEM	White	4000K, Ra80	Hexaprism Diffuser	1250	1501 - 2500	2012	18.5	3 hr EM LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":270},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2012},{"Name":"Circuit Watts","Value":18.5},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":108.7999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRYA24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRYA24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRYA24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVHRYA24KWEP	White	4000K, Ra80	Hexaprism Diffuser	1250	1501 - 2500	2012	18.5	3 hr EP LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":270},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2012},{"Name":"Circuit Watts","Value":18.5},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":108.7999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRYA24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRYA24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRYA24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVHRRG3YA24KW	White	4000K, Ra80	Hexaprism Diffuser	1250	1501 - 2500	2012	18.5	N/A	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2012},{"Name":"Circuit Watts","Value":18.5},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":108.7999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRYA24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRYA24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRYA24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVHRRG3YA24KWEM	White	4000K, Ra80	Hexaprism Diffuser	1250	1501 - 2500	2012	18.5	3 hr EM LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":270},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2012},{"Name":"Circuit Watts","Value":18.5},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":108.7999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRYA24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRYA24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRYA24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVHRRG3YA24KWEP	White	4000K, Ra80	Hexaprism Diffuser	1250	1501 - 2500	2012	18.5	3 hr EP LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":270},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2012},{"Name":"Circuit Watts","Value":18.5},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":108.7999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRYA24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRYA24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRYA24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}

Continuous Hexaprism 1.5m Number of Parts 6

Click on part code below for downloads

Part Code	Product Colour	Colour Temperature	Optic	Length (mm)	Nominal Lumens (per m)	Output (lm)	Power (W)	Emergency Type	Integral Controls
AOVHRYB24KW	White	4000K, Ra80	Hexaprism Diffuser	1500	1501 - 2500	2415	22.4	N/A	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2415},{"Name":"Circuit Watts","Value":22.39999999999999857891452847979962825775146484375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":107.7999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRYB24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRYB24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRYB24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVHRYB24KWEM	White	4000K, Ra80	Hexaprism Diffuser	1500	1501 - 2500	2415	22.4	3 hr EM LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":270},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2415},{"Name":"Circuit Watts","Value":22.39999999999999857891452847979962825775146484375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":107.7999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRYB24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRYB24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRYB24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVHRYB24KWEP	White	4000K, Ra80	Hexaprism Diffuser	1500	1501 - 2500	2415	22.4	3 hr EP LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":270},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2415},{"Name":"Circuit Watts","Value":22.39999999999999857891452847979962825775146484375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":107.7999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRYB24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRYB24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRYB24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVHRRG3YB24KW	White	4000K, Ra80	Hexaprism Diffuser	1500	1501 - 2500	2415	22.4	N/A	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2415},{"Name":"Circuit Watts","Value":22.39999999999999857891452847979962825775146484375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":107.7999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRYB24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRYB24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRYB24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVHRRG3YB24KWEM	White	4000K, Ra80	Hexaprism Diffuser	1500	1501 - 2500	2415	22.4	3 hr EM LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":270},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2415},{"Name":"Circuit Watts","Value":22.39999999999999857891452847979962825775146484375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":107.7999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRYB24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRYB24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRYB24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVHRRG3YB24KWEP	White	4000K, Ra80	Hexaprism Diffuser	1500	1501 - 2500	2415	22.4	3 hr EP LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":270},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2415},{"Name":"Circuit Watts","Value":22.39999999999999857891452847979962825775146484375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":107.7999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRYB24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRYB24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRYB24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}

Continuous Hexaprism 2m Number of Parts 6

Click on part code below for downloads

Part Code	Product Colour	Colour Temperature	Optic	Length (mm)	Nominal Lumens (per m)	Output (lm)	Power (W)	Emergency Type	Integral Controls
AOVHRY224KW	White	4000K, Ra80	Hexaprism Diffuser	2000	1501 - 2500	3220	30	N/A	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3220},{"Name":"Circuit Watts","Value":30},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":107.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRY224KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRY224KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRY224KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVHRY224KWEM	White	4000K, Ra80	Hexaprism Diffuser	2000	1501 - 2500	3220	30	3 hr EM LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":270},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3220},{"Name":"Circuit Watts","Value":30},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":107.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRY224KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRY224KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRY224KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVHRY224KWEP	White	4000K, Ra80	Hexaprism Diffuser	2000	1501 - 2500	3220	30	3 hr EP LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":270},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3220},{"Name":"Circuit Watts","Value":30},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":107.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRY224KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRY224KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRY224KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVHRRG3Y224KW	White	4000K, Ra80	Hexaprism Diffuser	2000	1501 - 2500	3220	30	N/A	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3220},{"Name":"Circuit Watts","Value":30},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":107.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRY224KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRY224KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRY224KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVHRRG3Y224KWEM	White	4000K, Ra80	Hexaprism Diffuser	2000	1501 - 2500	3220	30	3 hr EM LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":270},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3220},{"Name":"Circuit Watts","Value":30},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":107.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRY224KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRY224KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRY224KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVHRRG3Y224KWEP	White	4000K, Ra80	Hexaprism Diffuser	2000	1501 - 2500	3220	30	3 hr EP LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":270},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3220},{"Name":"Circuit Watts","Value":30},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":107.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRY224KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRY224KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRY224KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}

Continuous Hexaprism 3m Number of Parts 6

Click on part code below for downloads

Part Code	Product Colour	Colour Temperature	Optic	Length (mm)	Nominal Lumens (per m)	Output (lm)	Power (W)	Emergency Type	Integral Controls
AOVHRY324KW	White	4000K, Ra80	Hexaprism Diffuser	3000	1501 - 2500	4830	44.3	N/A	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4830},{"Name":"Circuit Watts","Value":44.2999999999999971578290569595992565155029296875},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":109},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRY324KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRY324KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRY324KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVHRY324KWEM	White	4000K, Ra80	Hexaprism Diffuser	3000	1501 - 2500	4830	44.3	3 hr EM LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":270},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4830},{"Name":"Circuit Watts","Value":44.2999999999999971578290569595992565155029296875},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":109},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRY324KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRY324KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRY324KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVHRY324KWEP	White	4000K, Ra80	Hexaprism Diffuser	3000	1501 - 2500	4830	44.3	3 hr EP LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":270},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4830},{"Name":"Circuit Watts","Value":44.2999999999999971578290569595992565155029296875},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":109},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRY324KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRY324KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRY324KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVHRRG3Y324KW	White	4000K, Ra80	Hexaprism Diffuser	3000	1501 - 2500	4830	44.3	N/A	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4830},{"Name":"Circuit Watts","Value":44.2999999999999971578290569595992565155029296875},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":109},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRY324KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRY324KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRY324KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVHRRG3Y324KWEM	White	4000K, Ra80	Hexaprism Diffuser	3000	1501 - 2500	4830	44.3	3 hr EM LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":270},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4830},{"Name":"Circuit Watts","Value":44.2999999999999971578290569595992565155029296875},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":109},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRY324KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRY324KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRY324KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVHRRG3Y324KWEP	White	4000K, Ra80	Hexaprism Diffuser	3000	1501 - 2500	4830	44.3	3 hr EP LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":270},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4830},{"Name":"Circuit Watts","Value":44.2999999999999971578290569595992565155029296875},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":109},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRY324KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRY324KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRY324KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}

Corner Hexaprism Number of Parts 1

Click on part code below for downloads

Part Code	Product Colour	Colour Temperature	Optic	Length (mm)	Nominal Lumens (per m)	Output (lm)	Power (W)	Emergency Type	Integral Controls
AOVHRYC24KW	White	4000K, Ra80	Hexaprism Diffuser	520	1000 - 1500	1500	15	N/A	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1500},{"Name":"Circuit Watts","Value":15},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":100},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-hexaprism-corner-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-hex-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVHRYC24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVHRYC24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVHRYC24KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}

Continuous OPAL 1.25m Number of Parts 6

Click on part code below for downloads

Part Code	Product Colour	Colour Temperature	Optic	Length (mm)	Nominal Lumens (per m)	Output (lm)	Power (W)	Emergency Type	Integral Controls
AOVARYA34KW	White	4000K, Ra80	Diffuser	1250	2501 - 3500	3550	28.6	N/A	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3550},{"Name":"Circuit Watts","Value":28.60000000000000142108547152020037174224853515625},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":124.099999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARYA34KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARYA34KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARYA34KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVARYA34KWEM	White	4000K, Ra80	Diffuser	1250	2501 - 3500	3550	28.6	3 hr EM LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":360},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3550},{"Name":"Circuit Watts","Value":28.60000000000000142108547152020037174224853515625},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":124.099999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARYA34KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARYA34KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARYA34KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVARYA34KWEP	White	4000K, Ra80	Diffuser	1250	2501 - 3500	3550	28.6	3 hr EP LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":360},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3550},{"Name":"Circuit Watts","Value":28.60000000000000142108547152020037174224853515625},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":124.099999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARYA34KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARYA34KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARYA34KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVARRG3YA34KW	White	4000K, Ra80	Diffuser	1250	2501 - 3500	3550	28.6	N/A	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3550},{"Name":"Circuit Watts","Value":28.60000000000000142108547152020037174224853515625},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":124.099999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARYA34KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARYA34KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARYA34KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVARRG3YA34KWEM	White	4000K, Ra80	Diffuser	1250	2501 - 3500	3550	28.6	3 hr EM LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":360},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3550},{"Name":"Circuit Watts","Value":28.60000000000000142108547152020037174224853515625},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":124.099999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARYA34KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARYA34KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARYA34KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVARRG3YA34KWEP	White	4000K, Ra80	Diffuser	1250	2501 - 3500	3550	28.6	3 hr EP LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":360},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3550},{"Name":"Circuit Watts","Value":28.60000000000000142108547152020037174224853515625},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":124.099999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARYA34KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARYA34KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARYA34KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}

Continuous OPAL 1.5m Number of Parts 6

Click on part code below for downloads

Part Code	Product Colour	Colour Temperature	Optic	Length (mm)	Nominal Lumens (per m)	Output (lm)	Power (W)	Emergency Type	Integral Controls
AOVARYB34KW	White	4000K, Ra80	Diffuser	1500	2501 - 3500	4260	36.4	N/A	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4260},{"Name":"Circuit Watts","Value":36.39999999999999857891452847979962825775146484375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":117},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARYB34KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARYB34KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARYB34KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVARYB34KWEM	White	4000K, Ra80	Diffuser	1500	2501 - 3500	4260	36.4	3 hr EM LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":360},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4260},{"Name":"Circuit Watts","Value":36.39999999999999857891452847979962825775146484375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":117},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARYB34KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARYB34KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARYB34KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVARYB34KWEP	White	4000K, Ra80	Diffuser	1500	2501 - 3500	4260	36.4	3 hr EP LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":360},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4260},{"Name":"Circuit Watts","Value":36.39999999999999857891452847979962825775146484375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":117},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARYB34KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARYB34KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARYB34KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVARRG3YB34KW	White	4000K, Ra80	Diffuser	1500	2501 - 3500	4260	36.4	N/A	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4260},{"Name":"Circuit Watts","Value":36.39999999999999857891452847979962825775146484375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":117},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARYB34KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARYB34KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARYB34KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVARRG3YB34KWEM	White	4000K, Ra80	Diffuser	1500	2501 - 3500	4260	36.4	3 hr EM LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":360},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4260},{"Name":"Circuit Watts","Value":36.39999999999999857891452847979962825775146484375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":117},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARYB34KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARYB34KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARYB34KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVARRG3YB34KWEP	White	4000K, Ra80	Diffuser	1500	2501 - 3500	4260	36.4	3 hr EP LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":360},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4260},{"Name":"Circuit Watts","Value":36.39999999999999857891452847979962825775146484375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":117},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARYB34KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARYB34KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARYB34KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}

Continuous OPAL 2m Number of Parts 6

Click on part code below for downloads

Part Code	Product Colour	Colour Temperature	Optic	Length (mm)	Nominal Lumens (per m)	Output (lm)	Power (W)	Emergency Type	Integral Controls
AOVARY234KW	White	4000K, Ra80	Diffuser	2000	2501 - 3500	5680	50	N/A	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5680},{"Name":"Circuit Watts","Value":50},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":113.599999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARY234KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARY234KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARY234KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVARY234KWEM	White	4000K, Ra80	Diffuser	2000	2501 - 3500	5680	50	3 hr EM LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":360},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5680},{"Name":"Circuit Watts","Value":50},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":113.599999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARY234KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARY234KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARY234KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVARY234KWEP	White	4000K, Ra80	Diffuser	2000	2501 - 3500	5680	50	3 hr EP LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":360},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5680},{"Name":"Circuit Watts","Value":50},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":113.599999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARY234KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARY234KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARY234KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVARRG3Y234KW	White	4000K, Ra80	Diffuser	2000	2501 - 3500	5680	50	N/A	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5680},{"Name":"Circuit Watts","Value":50},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":113.599999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARY234KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARY234KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARY234KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVARRG3Y234KWEM	White	4000K, Ra80	Diffuser	2000	2501 - 3500	5680	50	3 hr EM LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":360},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5680},{"Name":"Circuit Watts","Value":50},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":113.599999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARY234KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARY234KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARY234KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVARRG3Y234KWEP	White	4000K, Ra80	Diffuser	2000	2501 - 3500	5680	50	3 hr EP LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":360},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":5680},{"Name":"Circuit Watts","Value":50},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":113.599999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARY234KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARY234KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARY234KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}

Continuous OPAL 3m Number of Parts 6

Click on part code below for downloads

Part Code	Product Colour	Colour Temperature	Optic	Length (mm)	Nominal Lumens (per m)	Output (lm)	Power (W)	Emergency Type	Integral Controls
AOVARY334KW	White	4000K, Ra80	Diffuser	3000	2501 - 3500	8520	70	N/A	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":8520},{"Name":"Circuit Watts","Value":70},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":121.7000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARY334KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARY334KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARY334KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVARY334KWEM	White	4000K, Ra80	Diffuser	3000	2501 - 3500	8520	70	3 hr EM LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":360},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":8520},{"Name":"Circuit Watts","Value":70},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":121.7000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARY334KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARY334KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARY334KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVARY334KWEP	White	4000K, Ra80	Diffuser	3000	2501 - 3500	8520	70	3 hr EP LiFeP04	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":360},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":8520},{"Name":"Circuit Watts","Value":70},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":121.7000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARY334KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARY334KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARY334KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVARRG3Y334KW	White	4000K, Ra80	Diffuser	3000	2501 - 3500	8520	70	N/A	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":8520},{"Name":"Circuit Watts","Value":70},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":121.7000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARY334KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARY334KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARY334KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVARRG3Y334KWEM	White	4000K, Ra80	Diffuser	3000	2501 - 3500	8520	70	3 hr EM LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":360},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":8520},{"Name":"Circuit Watts","Value":70},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":121.7000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARY334KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARY334KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARY334KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}
AOVARRG3Y334KWEP	White	4000K, Ra80	Diffuser	3000	2501 - 3500	8520	70	3 hr EP LiFeP04	ORGANIC RESPONSE 3	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":360},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":8520},{"Name":"Circuit Watts","Value":70},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":121.7000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"ORGANIC RESPONSE 3"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-or-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARY334KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARY334KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARY334KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}

Corner Opal Number of Parts 1

Click on part code below for downloads

Part Code	Product Colour	Colour Temperature	Optic	Length (mm)	Nominal Lumens (per m)	Output (lm)	Power (W)	Emergency Type	Integral Controls
AOVARYC34KW	White	4000K, Ra80	Diffuser	520	1000 - 1500	1500	15	N/A	N/A	[{"Name":"LED Life Performance","Value":"> 100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1500},{"Name":"Circuit Watts","Value":15},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":100},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"avenue-metro-recessed-white-opal-corner-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"avenue-metro-recessed-opal-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"AOVARYC34KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"AOVARYC34KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"AOVARYC34KW.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"avenue-metro-recessed-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"avenue-metro-recessed-vitality-dialux.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"avenue-metro-recessed-vitality-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"avenue-metro-recessed-revit.zip"}}

Accessory - continuous kit Number of Parts 1

Click on part code below for downloads

Part Code	Product Colour	Colour Temperature	Optic	Length (mm)	Nominal Lumens (per m)	Output (lm)	Power (W)	Emergency Type	Integral Controls
AOCMOKIT	N/A	N/A	N/A		N/A	N/A	N/A	N/A	N/A	[{"Name":"LED Life Performance","Value":"N\/A"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":"N\/A"},{"Name":"Circuit Watts","Value":"N\/A"},{"Name":"LOR","Value":"N\/A"},{"Name":"Lumen per circuit watt","Value":"N\/A"},{"Name":"Lamp type","Value":""},{"Name":"Colour Temperature","Value":"N\/A"},{"Name":"Gear","Value":"N\/A"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"N\/A"},{"Name":"Integral Controls","Value":"N\/A"}] {"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"}}

Accessory - end cap pair Number of Parts 1

Click on part code below for downloads

Part Code	Product Colour	Colour Temperature	Optic	Length (mm)	Nominal Lumens (per m)	Output (lm)	Power (W)	Emergency Type	Integral Controls
AORENDCW	White	N/A	N/A		N/A	N/A	N/A	N/A	N/A	[{"Name":"LED Life Performance","Value":"N\/A"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":"N\/A"},{"Name":"Circuit Watts","Value":"N\/A"},{"Name":"LOR","Value":"N\/A"},{"Name":"Lumen per circuit watt","Value":"N\/A"},{"Name":"Lamp type","Value":""},{"Name":"Colour Temperature","Value":"N\/A"},{"Name":"Gear","Value":"N\/A"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"avenue-metro-d1.jpg"}}

Dimensions Diagram 1

VERSION	L	W†	H	KG	KG(EM)	Min Void Depth	Cut Aperture
1.25m	1250	95	83	4.5	5.0	130	83
1.5m	1500	95	83	5.0	5.5	130	83
2m	2000	95	83	7.0	7.5	130	83
3m	3000	95	83	10.0	10.5	130	83
Corner	520	95	83	3.5	4.0	130	83
End Cap	15†	95	83	0.1	-	-

† Includes 15mm flange
Refer to installation leaflet for full details of aperture preparation

Photometric Performance

Photometric Performance Diagram - Pod optic

Pod optic

LOR = 100%

Photometric Performance Diagram - Hexaprism diffuser

Hexaprism diffuser

LOR = 100%

Photometric Performance Diagram - Opal diffuser

Opal diffuser

LOR = 100%

LED Performance

Colour Temp	RA (CRI)	Life expectancy	Colour consistency
4000K	>80	>100,000 hrs	MacAdam 3 SDCM

Recessed linear LED system with a modern minimalist aesthetic and TP(a) optic. Modular options for creating clean continuous lines of light or as a stand-alone luminaire for use in multi-functional spaces. End caps and joining kits to be supplied separately - as Whitecroft Lighting AVENUE METRO VITALITY

Product Downloads
