Euroflood SL | Whitecroft Lighting

Euroflood SL Medium

Medium size profile

Euroflood SL Small

Small size Profile

Explore our product range

Overview

Euroflood SL floodlight series features a sleek, minimalistic design with a robust die-cast body available in two sizes. Engineered for high performance, Euroflood SL utilises a high quality, efficient LED light engine that delivers a range of light outputs suitable for diverse applications. The IP68 connector ensures easy and safe installation without compromising the product's integrity.

Designed with environmental impact in mind, Euroflood SL is available in both 2700K and 4000K, with a variety of optic options. This versatility allows for the creation of safe, well-lit spaces while maintaining a minimal environmental footprint.

Lighting performance

Clear, acrylic (PMMA) optic lens
Clear tempered glass optical cover
Colour temperature options
- 2700K LED as standard
- 4000K LED available
Light distribution
- Area
- Asymmetric Wide
- Asymmetric Narrow
Light output
- Euroflood SL Small: 7700lm-18400lm
- Euroflood SL Medium: 25300lm-35400lm
Efficacy up to 166lm/W

Construction

Aluminium injection housing
Electrostatic powder coating, resistant to UV rates.
Saline environment resistance, suitable for applications within 3km of the coast.
IP66
Impact resistance IK08
Finished in Jet Black RAL9005
Suitable for ambient temperatures between -40° and +40°
Fixed output or DALI dimming driver option
Slim body to minimise wind exposed surfaces
Integral adjustable stirrup mounting bracket
235° rotation with 5° angle step
Optional wire guard attachment offered on request
Different mounting kits offered on reques

Enquire about this product

Family Datasheet

Product Downloads

Product filter If you don't have a part number, use the filter to find what you need. Select product and light source first to narrow the output and power options.

Output (lm)

Power (W)

Colour Temperature

Efficacy

Driver Type

Distribution

Clear filters

Asymmetric Narrow Number of Parts 28

Click on part code below for downloads

Part Code	Output (lm)	Power (W)	Colour Temperature	Efficacy	Driver Type	Distribution
ELLH12KN	8108	64	2700K	126.69	Fixed Output	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":8108},{"Name":"Circuit Watts","Value":64},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":126.7000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH12KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH12KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH12KN.ies"}}
ELLH14KN	8214	56.5	4000K	145.38	Fixed Output	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":8214},{"Name":"Circuit Watts","Value":56.5},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":145.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH14KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH14KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH14KN.ies"}}
ELLH22KN	10142	84	2700K	120.74	Fixed Output	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":10142},{"Name":"Circuit Watts","Value":84},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120.7000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH22KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH22KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH22KN.ies"}}
ELLH24KN	10367	74.7	4000K	138.78	Fixed Output	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":10367},{"Name":"Circuit Watts","Value":74.7000000000000028421709430404007434844970703125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":138.80000000000001136868377216160297393798828125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH24KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH24KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH24KN.ies"}}
ELLH32KN	15237	141.8	2700K	107.45	Fixed Output	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":15237},{"Name":"Circuit Watts","Value":141.80000000000001136868377216160297393798828125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":107.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH32KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH32KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH32KN.ies"}}
ELLH34KN	15334	122.2	4000K	125.48	Fixed Output	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":15334},{"Name":"Circuit Watts","Value":122.2000000000000028421709430404007434844970703125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":125.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH34KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH34KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH34KN.ies"}}
ELLH42KN	16625	160	2700K	103.91	Fixed Output	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":16625},{"Name":"Circuit Watts","Value":160},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":103.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH42KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH42KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH42KN.ies"}}
ELLH44KN	18226	155.1	4000K	117.51	Fixed Output	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":18226},{"Name":"Circuit Watts","Value":155.099999999999994315658113919198513031005859375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":117.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH44KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH44KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH44KN.ies"}}
ELLY12KN	8108	64	2700K	126.69	DALI LED Driver	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":8108},{"Name":"Circuit Watts","Value":64},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":126.7000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH12KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH12KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH12KN.ies"}}
ELLY14KN	8214	56.5	4000K	145.38	DALI LED Driver	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":8214},{"Name":"Circuit Watts","Value":56.5},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":145.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH14KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH14KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH14KN.ies"}}
ELLY22KN	10142	84	2700K	120.74	DALI LED Driver	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":10142},{"Name":"Circuit Watts","Value":84},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120.7000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH22KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH22KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH22KN.ies"}}
ELLY24KN	10367	74.7	4000K	138.78	DALI LED Driver	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":10367},{"Name":"Circuit Watts","Value":74.7000000000000028421709430404007434844970703125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":138.80000000000001136868377216160297393798828125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH24KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH24KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH24KN.ies"}}
ELLY32KN	15237	141.8	2700K	107.45	DALI LED Driver	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":15237},{"Name":"Circuit Watts","Value":141.80000000000001136868377216160297393798828125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":107.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH32KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH32KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH32KN.ies"}}
ELLY34KN	15334	122.2	4000K	125.48	DALI LED Driver	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":15334},{"Name":"Circuit Watts","Value":122.2000000000000028421709430404007434844970703125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":125.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH34KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH34KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH34KN.ies"}}
ELLY42KN	16625	160	2700K	103.91	DALI LED Driver	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":16625},{"Name":"Circuit Watts","Value":160},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":103.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH42KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH42KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH42KN.ies"}}
ELLY44KN	18286	155.1	4000K	117.9	DALI LED Driver	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":18286},{"Name":"Circuit Watts","Value":155.099999999999994315658113919198513031005859375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":117.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH44KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH44KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH44KN.ies"}}
ELMH52KN	25300	221.8	2700K	114.07	Fixed Output	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":25300},{"Name":"Circuit Watts","Value":221.80000000000001136868377216160297393798828125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":114.099999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH52KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH52KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH52KN.ies"}}
ELMH54KN	25524	193	4000K	132.25	Fixed Output	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":25524},{"Name":"Circuit Watts","Value":193},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":132.30000000000001136868377216160297393798828125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH54KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH54KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH54KN.ies"}}
ELMH62KN	30475	283.7	2700K	107.42	Fixed Output	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":30475},{"Name":"Circuit Watts","Value":283.69999999999998863131622783839702606201171875},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":107.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH62KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH62KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH62KN.ies"}}
ELMH64KN	30669	244.4	4000K	125.49	Fixed Output	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":30669},{"Name":"Circuit Watts","Value":244.400000000000005684341886080801486968994140625},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":125.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH64KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH64KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH64KN.ies"}}
ELMH72KN	33249	320	2700K	103.9	Fixed Output	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":33249},{"Name":"Circuit Watts","Value":320},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":103.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH72KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH72KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH72KN.ies"}}
ELMH74KN	35441	296.9	4000K	119.37	Fixed Output	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":35441},{"Name":"Circuit Watts","Value":296.8999999999999772626324556767940521240234375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":119.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH74KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH74KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH74KN.ies"}}
ELMY52KN	25300	221.8	2700K	114.07	DALI LED Driver	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":25300},{"Name":"Circuit Watts","Value":221.80000000000001136868377216160297393798828125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":114.099999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH52KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH52KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH52KN.ies"}}
ELMY54KN	25524	193.1	4000K	132.18	DALI LED Driver	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":25524},{"Name":"Circuit Watts","Value":193.099999999999994315658113919198513031005859375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":132.19999999999998863131622783839702606201171875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH54KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH54KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH54KN.ies"}}
ELMY62KN	30475	283.7	2700K	107.42	DALI LED Driver	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":30475},{"Name":"Circuit Watts","Value":283.69999999999998863131622783839702606201171875},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":107.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH62KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH62KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH62KN.ies"}}
ELMY64KN	30669	244.4	4000K	125.49	DALI LED Driver	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":30669},{"Name":"Circuit Watts","Value":244.400000000000005684341886080801486968994140625},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":125.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH64KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH64KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH64KN.ies"}}
ELMY72KN	33249	320.3	2700K	103.81	DALI LED Driver	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":33249},{"Name":"Circuit Watts","Value":320.30000000000001136868377216160297393798828125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":103.7999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH72KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH72KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH72KN.ies"}}
ELMY74KN	35441	296.9	4000K	119.37	DALI LED Driver	Asymmetric Narrow	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":35441},{"Name":"Circuit Watts","Value":296.8999999999999772626324556767940521240234375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":119.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"narrow-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH74KN.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH74KN.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH74KN.ies"}}

Asymmetric Wide Number of Parts 28

Click on part code below for downloads

Part Code	Output (lm)	Power (W)	Colour Temperature	Efficacy	Driver Type	Distribution
ELLH12KW	8335	67.5	2700K	123.48	Fixed Output	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":8335},{"Name":"Circuit Watts","Value":67.5},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH12KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH12KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH12KW.ies"}}
ELLH14KW	7685	53	4000K	145	Fixed Output	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":7685},{"Name":"Circuit Watts","Value":53},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":145},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH14KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH14KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH14KW.ies"}}
ELLH22KW	10269	87	2700K	118.03	Fixed Output	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":10269},{"Name":"Circuit Watts","Value":87},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":118},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH22KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH22KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH22KW.ies"}}
ELLH24KW	9661	67	4000K	144.19	Fixed Output	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":9661},{"Name":"Circuit Watts","Value":67},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":144.19999999999998863131622783839702606201171875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH24KW.ies"}}
ELLH32KW	15124	142.4	2700K	106.21	Fixed Output	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":15124},{"Name":"Circuit Watts","Value":142.400000000000005684341886080801486968994140625},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":106.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH32KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH32KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH32KW.ies"}}
ELLH34KW	14101	106	4000K	133.03	Fixed Output	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":14101},{"Name":"Circuit Watts","Value":106},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":133},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH34KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH34KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH34KW.ies"}}
ELLH42KW	17090	143	2700K	119.51	Fixed Output	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":17090},{"Name":"Circuit Watts","Value":143},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":119.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH42KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH42KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH42KW.ies"}}
ELLH44KW	17053	133	4000K	128.22	Fixed Output	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":17053},{"Name":"Circuit Watts","Value":133},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128.19999999999998863131622783839702606201171875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH44KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH44KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH44KW.ies"}}
ELLY12KW	8335	67.5	2700K	123.48	DALI LED Driver	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":8335},{"Name":"Circuit Watts","Value":67.5},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH12KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH12KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH12KW.ies"}}
ELLY14KW	7685	53	4000K	145	DALI LED Driver	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":7685},{"Name":"Circuit Watts","Value":53},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":145},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH14KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH14KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH14KW.ies"}}
ELLY22KW	10269	87	2700K	118.03	DALI LED Driver	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":10269},{"Name":"Circuit Watts","Value":87},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":118},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH22KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH22KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH22KW.ies"}}
ELLY24KW	9661	67	4000K	144.19	DALI LED Driver	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":9661},{"Name":"Circuit Watts","Value":67},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":144.19999999999998863131622783839702606201171875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH24KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH24KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH24KW.ies"}}
ELLY32KW	15124	142.4	2700K	106.21	DALI LED Driver	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":15124},{"Name":"Circuit Watts","Value":142.400000000000005684341886080801486968994140625},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":106.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH32KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH32KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH32KW.ies"}}
ELLY34KW	14101	106	4000K	133.03	DALI LED Driver	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":14101},{"Name":"Circuit Watts","Value":106},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":133},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH34KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH34KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH34KW.ies"}}
ELLY42KW	17090	143	2700K	119.51	DALI LED Driver	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":17090},{"Name":"Circuit Watts","Value":143},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":119.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH42KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH42KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH42KW.ies"}}
ELLY44KW	17053	133	4000K	128.22	DALI LED Driver	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":17053},{"Name":"Circuit Watts","Value":133},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128.19999999999998863131622783839702606201171875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH44KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH44KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH44KW.ies"}}
ELMH52KW	25346	206.4	2700K	122.8	Fixed Output	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":25346},{"Name":"Circuit Watts","Value":206.400000000000005684341886080801486968994140625},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":122.7999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH52KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH52KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH52KW.ies"}}
ELMH54KW	25687	181	4000K	141.92	Fixed Output	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":25687},{"Name":"Circuit Watts","Value":181},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":141.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH54KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH54KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH54KW.ies"}}
ELMH62KW	30403	261.4	2700K	116.31	Fixed Output	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":30403},{"Name":"Circuit Watts","Value":261.3999999999999772626324556767940521240234375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":116.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH62KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH62KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH62KW.ies"}}
ELMH64KW	27881	226	4000K	123.37	Fixed Output	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":27881},{"Name":"Circuit Watts","Value":226},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH64KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH64KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH64KW.ies"}}
ELMH72KW	35317	321	2700K	110.02	Fixed Output	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":35317},{"Name":"Circuit Watts","Value":321},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":110},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH72KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH72KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH72KW.ies"}}
ELMH74KW	32576	245	4000K	132.96	Fixed Output	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":32576},{"Name":"Circuit Watts","Value":245},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":133},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH74KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH74KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH74KW.ies"}}
ELMY52KW	25346	206	2700K	123.04	DALI LED Driver	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":25346},{"Name":"Circuit Watts","Value":206},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH52KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH52KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH52KW.ies"}}
ELMY54KW	25687	181	4000K	141.92	DALI LED Driver	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":25687},{"Name":"Circuit Watts","Value":181},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":141.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH54KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH54KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH54KW.ies"}}
ELMY62KW	30403	261	2700K	116.49	DALI LED Driver	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":30403},{"Name":"Circuit Watts","Value":261},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":116.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH62KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH62KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH62KW.ies"}}
ELMY64KW	27881	226	4000K	123.37	DALI LED Driver	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":27881},{"Name":"Circuit Watts","Value":226},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":123.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH64KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH64KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH64KW.ies"}}
ELMY72KW	35317	321	2700K	110.02	DALI LED Driver	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":35317},{"Name":"Circuit Watts","Value":321},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":110},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH72KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH72KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH72KW.ies"}}
ELMY74KW	32576	245	4000K	132.96	DALI LED Driver	Asymmetric Wide	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":32576},{"Name":"Circuit Watts","Value":245},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":133},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"wide-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH74KW.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH74KW.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH74KW.ies"}}

Area Number of Parts 28

Click on part code below for downloads

Part Code	Output (lm)	Power (W)	Colour Temperature	Efficacy	Driver Type	Distribution
ELLH12KA	8482	59	2700K	143.76	Fixed Output	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":8482},{"Name":"Circuit Watts","Value":59},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":143.80000000000001136868377216160297393798828125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH12KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH12KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH12KA.ies"}}
ELLH22KA	10251	74	2700K	138.53	Fixed Output	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":10251},{"Name":"Circuit Watts","Value":74},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":138.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH22KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH22KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH22KA.ies"}}
ELLH32KA	15619	126	2700K	123.96	Fixed Output	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":15619},{"Name":"Circuit Watts","Value":126},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":124},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH32KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH32KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH32KA.ies"}}
ELLH42KA	18492	159	2700K	116.3	Fixed Output	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":18492},{"Name":"Circuit Watts","Value":159},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":116.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH42KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH42KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH42KA.ies"}}
ELLH14KA	8316	50	4000K	166.32	Fixed Output	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":8316},{"Name":"Circuit Watts","Value":50},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":166.30000000000001136868377216160297393798828125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH14KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH14KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH14KA.ies"}}
ELLH24KA	10347	65	4000K	159.18	Fixed Output	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":10347},{"Name":"Circuit Watts","Value":65},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":159.19999999999998863131622783839702606201171875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH24KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH24KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH24KA.ies"}}
ELLH34KA	15292	105	4000K	145.64	Fixed Output	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":15292},{"Name":"Circuit Watts","Value":105},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":145.599999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH34KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH34KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH34KA.ies"}}
ELLH44KA	18411	134	4000K	137.4	Fixed Output	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":18411},{"Name":"Circuit Watts","Value":134},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":137.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH44KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH44KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH44KA.ies"}}
ELLY12KA	8482	59	2700K	143.76	DALI LED Driver	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":8482},{"Name":"Circuit Watts","Value":59},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":143.80000000000001136868377216160297393798828125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH12KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH12KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH12KA.ies"}}
ELLY22KA	10251	74	2700K	138.53	DALI LED Driver	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":10251},{"Name":"Circuit Watts","Value":74},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":138.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH22KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH22KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH22KA.ies"}}
ELLY32KA	15619	126	2700K	123.96	DALI LED Driver	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":15619},{"Name":"Circuit Watts","Value":126},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":124},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH32KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH32KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH32KA.ies"}}
ELLY42KA	18492	159	2700K	116.3	DALI LED Driver	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":18492},{"Name":"Circuit Watts","Value":159},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":116.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH42KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH42KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH42KA.ies"}}
ELLY14KA	8316	50	4000K	166.32	DALI LED Driver	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":8316},{"Name":"Circuit Watts","Value":50},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":166.30000000000001136868377216160297393798828125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH14KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH14KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH14KA.ies"}}
ELLY24KA	10347	65	4000K	159.18	DALI LED Driver	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":10347},{"Name":"Circuit Watts","Value":65},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":159.19999999999998863131622783839702606201171875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH24KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH24KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH24KA.ies"}}
ELLY34KA	15292	105	4000K	145.64	DALI LED Driver	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":15292},{"Name":"Circuit Watts","Value":105},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":145.599999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH34KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH34KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH34KA.ies"}}
ELLY44KA	18411	134	4000K	137.4	DALI LED Driver	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":18411},{"Name":"Circuit Watts","Value":134},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":137.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-small-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELLH44KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELLH44KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELLH44KA.ies"}}
ELMH52KA	25336	209.6	2700K	120.88	Fixed Output	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":25336},{"Name":"Circuit Watts","Value":209.599999999999994315658113919198513031005859375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH52KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH52KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH52KA.ies"}}
ELMH62KA	30308	264.7	2700K	114.5	Fixed Output	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":30308},{"Name":"Circuit Watts","Value":264.69999999999998863131622783839702606201171875},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":114.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH62KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH62KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH62KA.ies"}}
ELMH72KA	34879	321.2	2700K	108.59	Fixed Output	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":34879},{"Name":"Circuit Watts","Value":321.19999999999998863131622783839702606201171875},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":108.599999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH72KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH72KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH72KA.ies"}}
ELMH54KA	25368	181	4000K	140.15	Fixed Output	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":25368},{"Name":"Circuit Watts","Value":181},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":140.19999999999998863131622783839702606201171875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH54KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH54KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH54KA.ies"}}
ELMH64KA	30193	225.6	4000K	133.83	Fixed Output	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":30193},{"Name":"Circuit Watts","Value":225.599999999999994315658113919198513031005859375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":133.80000000000001136868377216160297393798828125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH64KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH64KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH64KA.ies"}}
ELMH74KA	35348	277.9	4000K	127.2	Fixed Output	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":35348},{"Name":"Circuit Watts","Value":277.8999999999999772626324556767940521240234375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":127.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH74KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH74KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH74KA.ies"}}
ELMY52KA	25336	210	2700K	120.65	DALI LED Driver	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":25336},{"Name":"Circuit Watts","Value":210},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":120.7000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH52KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH52KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH52KA.ies"}}
ELMY62KA	30308	265	2700K	114.37	DALI LED Driver	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":30308},{"Name":"Circuit Watts","Value":265},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":114.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH62KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH62KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH62KA.ies"}}
ELMY72KA	34879	321	2700K	108.66	DALI LED Driver	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":34879},{"Name":"Circuit Watts","Value":321},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":108.7000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"2700K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH72KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH72KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH72KA.ies"}}
ELMY54KA	25368	181	4000K	140.15	DALI LED Driver	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":25368},{"Name":"Circuit Watts","Value":181},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":140.19999999999998863131622783839702606201171875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH54KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH54KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH54KA.ies"}}
ELMY64KA	30193	226	4000K	133.6	DALI LED Driver	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":30193},{"Name":"Circuit Watts","Value":226},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":133.599999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH64KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH64KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH64KA.ies"}}
ELMY74KA	35348	278	4000K	127.15	DALI LED Driver	Area	[{"Name":"LED Life Performance","Value":""},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":35348},{"Name":"Circuit Watts","Value":278},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":127.2000000000000028421709430404007434844970703125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Black"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"euroflood-sl-medium-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"area-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"euroflood-sl-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ELMH74KA.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ELMH74KA.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ELMH74KA.ies"}}

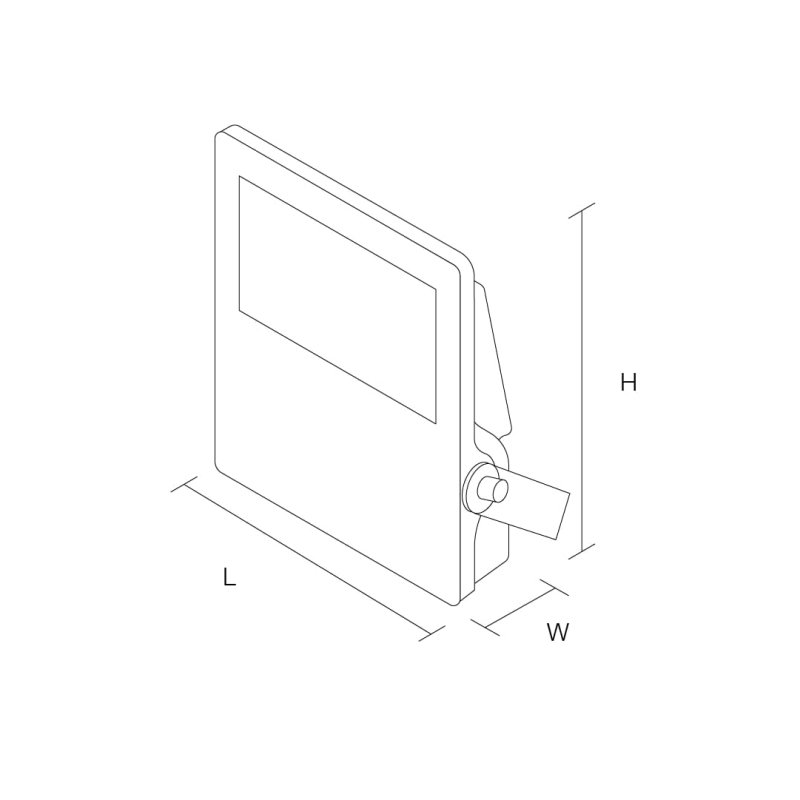

VERSION	L	W	H	KG
Euroflood SL Small	340	138	420	8.2
Euroflood SL Medium	445	180	500	13

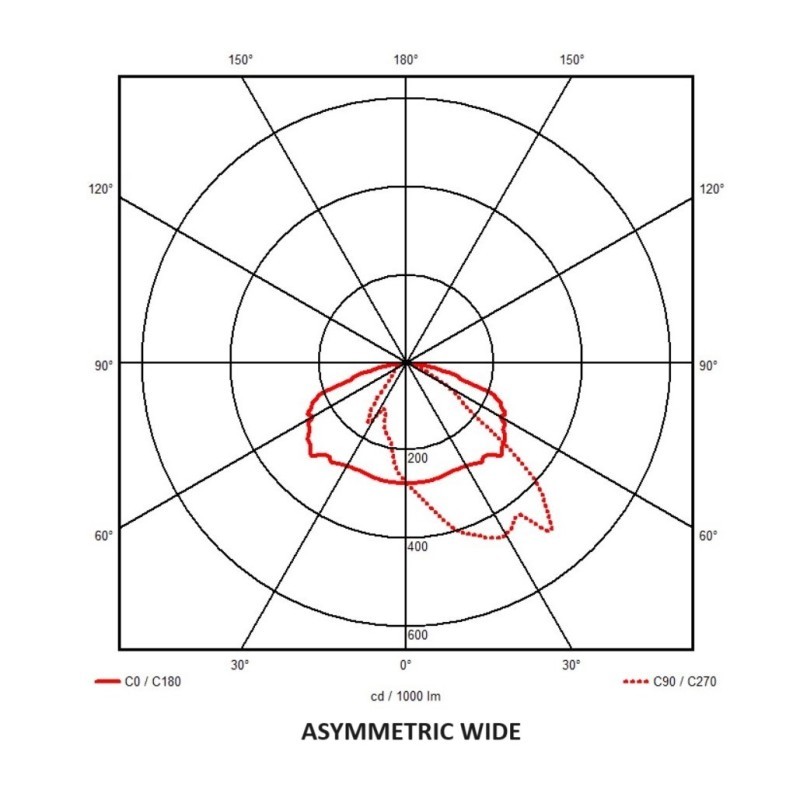

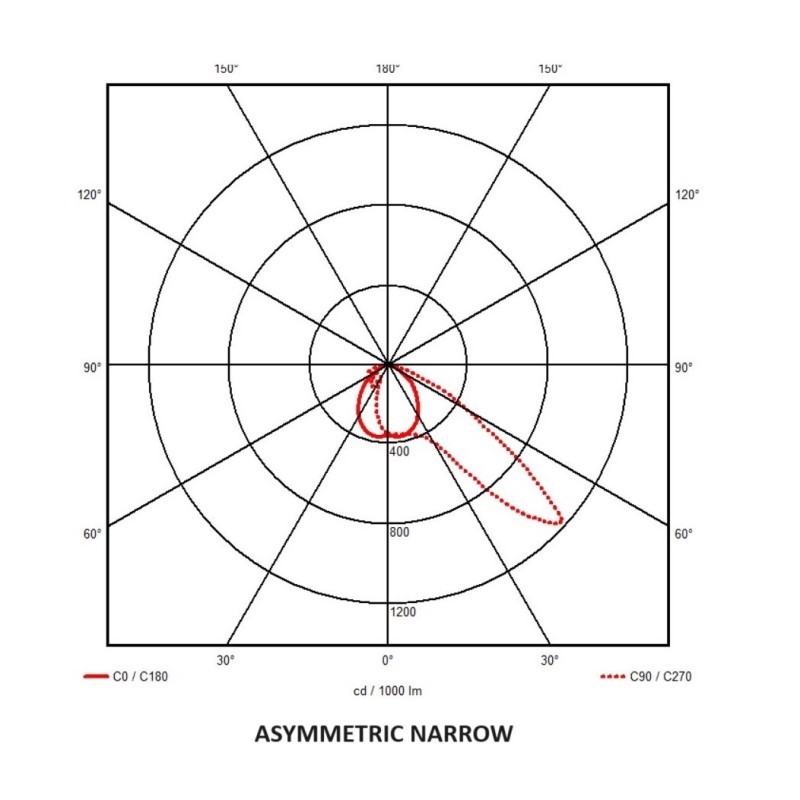

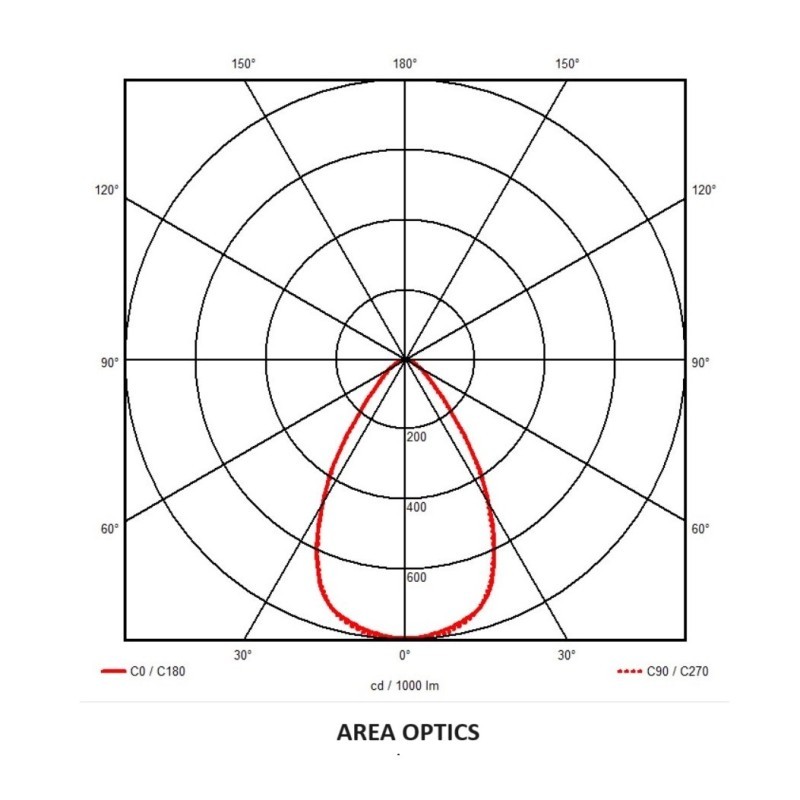

Photometric Performance

LOR = 100%

LED Performance

Colour Temp	RA (CRI)	Life expectancy	Colour consistency
2700K	>70	L90B50 >130,000 hrs	MacAdam 3 SDCM
4000K	>70	L90B50 >130,000 hrs	MacAdam 3 SDCM

Slimline flodlight with die-cast body. High quality, efficient LED light engine with a range of light outputs to suit a wide variety of applications - as Whitecroft Lighting EUROFLOOD SL.
