Kolo Surface | Whitecroft Lighting

With Trim Ring

Without Trim Ring

Explore our product range

Overview

Kolo brings style and efficiency to any application. With a host of optional attachments to add visual interest, Kolo is the optimum lighting solution.

Optics

Nominal light output options:
300mm ø
- 800 lumen, 6W
- 1100 lumen, 9W
400mm ø
- 1700 lumen, 14W
- 2300 lumen, 19W
- 2700 lumen, 21W
- 3500 lumen, 28W
Emergency Output (BLF):
- 300mm - 240 Lumens
- 400mm - 400 Lumens
Polycarbonate opal diffuser, Tp(a) rated
Available with 3000K and 4000K LED

For specific product variant information, including lifetime, efficacy, power, output and electrical data, please click on the individual part number under 'Order Codes' and view the datasheet

Body

Surface mounted
300mm or 400mm diameter in cast aluminium with injection moulded base
Finished in silver or white
RAL Colour: Silver no RAL. White RAL9003.
IP44
Choice of integrated emergency options:
- 3 hour emergency
- COMEPS
Also available with 'EW' Routefinder Wireless for addressable emergency testing without the need for a 2 core communication cable
Emergency variants supplied with Lithium Iron Phosphate (LiFePO4) batteries
Optional Command 5 microwave detector mounted behind the diffuser available that can be set to one of two configurations;
- Microwave presence detection with ON/OFF operation
- Microwave presence detection with High/Low/Off set-back functionality. Can be set to switch from 100% down to setback position of 50%, 30%, 20%, 10% or OFF
Optional trim ring available for an alternative aesthetic finish (supplied separately)
Product also available in suspended and IP65, see Kolo suspended and Kolo IP65
Can be used with MSU Kit for Mental Health - Medium Secure Unit & Anti-Ligature applications

Enquire about this product

Family Datasheet

Product Downloads

300mm diameter Number of Parts 24

Click on part code below for downloads

Part Code	Description	Output (lm)	Power (W)	Colour Temperature	Product Colour	Driver Type	Emergency Type	Controls	Accessory
K4H3124KS	300mm diameter	1136	9	4000K, Ra80	Silver	Fixed Output	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1136},{"Name":"Circuit Watts","Value":9},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":129},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H3124K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H3124K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H3124K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H3124KSLEM	300mm diameter	1136	9	4000K, Ra80	Silver	Fixed Output	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":240},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1136},{"Name":"Circuit Watts","Value":9},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":129},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H3124K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H3124K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H3124K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H3124KSLEP	300mm diameter	1136	9	4000K, Ra80	Silver	Fixed Output	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":240},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1136},{"Name":"Circuit Watts","Value":9},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":129},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H3124K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H3124K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H3124K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H3124KW	300mm diameter	1136	9	4000K, Ra80	White	Fixed Output	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1136},{"Name":"Circuit Watts","Value":9},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":129},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H3124K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H3124K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H3124K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H3124KWLEM	300mm diameter	1136	9	4000K, Ra80	White	Fixed Output	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":240},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1136},{"Name":"Circuit Watts","Value":9},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":129},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H3124K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H3124K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H3124K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H3124KWLEP	300mm diameter	1136	9	4000K, Ra80	White	Fixed Output	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":240},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1136},{"Name":"Circuit Watts","Value":9},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":129},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H3124K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H3124K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H3124K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H364KS	300mm diameter	806	6	4000K, Ra80	Silver	Fixed Output	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":806},{"Name":"Circuit Watts","Value":6},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H364K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H364K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H364K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H364KSLEM	300mm diameter	806	6	4000K, Ra80	Silver	Fixed Output	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":240},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":806},{"Name":"Circuit Watts","Value":6},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H364K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H364K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H364K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H364KSLEP	300mm diameter	806	6	4000K, Ra80	Silver	Fixed Output	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":240},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":806},{"Name":"Circuit Watts","Value":6},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H364K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H364K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H364K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H364KW	300mm diameter	806	6	4000K, Ra80	White	Fixed Output	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":806},{"Name":"Circuit Watts","Value":6},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H364K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H364K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H364K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H364KWLEM	300mm diameter	806	6	4000K, Ra80	White	Fixed Output	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":240},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":806},{"Name":"Circuit Watts","Value":6},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H364K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H364K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H364K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H364KWLEP	300mm diameter	806	6	4000K, Ra80	White	Fixed Output	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":240},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":806},{"Name":"Circuit Watts","Value":6},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H364K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H364K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H364K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y3124KS	300mm diameter	1136	9	4000K, Ra80	Silver	DALI LED Driver	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1136},{"Name":"Circuit Watts","Value":9},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":129},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H3124K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H3124K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H3124K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y3124KSLEM	300mm diameter	1136	9	4000K, Ra80	Silver	DALI LED Driver	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":240},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1136},{"Name":"Circuit Watts","Value":9},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":129},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H3124K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H3124K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H3124K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y3124KSLEP	300mm diameter	1136	9	4000K, Ra80	Silver	DALI LED Driver	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":240},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1136},{"Name":"Circuit Watts","Value":9},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":129},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H3124K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H3124K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H3124K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y3124KW	300mm diameter	1136	9	4000K, Ra80	White	DALI LED Driver	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1136},{"Name":"Circuit Watts","Value":9},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":129},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H3124K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H3124K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H3124K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y3124KWLEM	300mm diameter	1136	9	4000K, Ra80	White	DALI LED Driver	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":240},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1136},{"Name":"Circuit Watts","Value":9},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":129},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H3124K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H3124K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H3124K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y3124KWLEP	300mm diameter	1136	9	4000K, Ra80	White	DALI LED Driver	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":240},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1136},{"Name":"Circuit Watts","Value":9},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":129},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H3124K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H3124K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H3124K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y364KS	300mm diameter	806	6	4000K, Ra80	Silver	DALI LED Driver	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":806},{"Name":"Circuit Watts","Value":6},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H364K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H364K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H364K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y364KSLEM	300mm diameter	806	6	4000K, Ra80	Silver	DALI LED Driver	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":240},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":806},{"Name":"Circuit Watts","Value":6},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H364K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H364K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H364K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y364KSLEP	300mm diameter	806	6	4000K, Ra80	Silver	DALI LED Driver	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":240},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":806},{"Name":"Circuit Watts","Value":6},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H364K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H364K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H364K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y364KW	300mm diameter	806	6	4000K, Ra80	White	DALI LED Driver	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":806},{"Name":"Circuit Watts","Value":6},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H364K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H364K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H364K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y364KWLEM	300mm diameter	806	6	4000K, Ra80	White	DALI LED Driver	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":240},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":806},{"Name":"Circuit Watts","Value":6},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H364K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H364K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H364K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y364KWLEP	300mm diameter	806	6	4000K, Ra80	White	DALI LED Driver	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":240},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":806},{"Name":"Circuit Watts","Value":6},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H364K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H364K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H364K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}

400mm diameter Number of Parts 72

Click on part code below for downloads

Part Code	Description	Output (lm)	Power (W)	Colour Temperature	Product Colour	Driver Type	Emergency Type	Controls	Accessory
K4H4154KS	400mm diameter	1755	14	4000K, Ra80	Silver	Fixed Output	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1755},{"Name":"Circuit Watts","Value":14},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4154K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4154K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4154K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4154KSLEM	400mm diameter	1755	14	4000K, Ra80	Silver	Fixed Output	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1755},{"Name":"Circuit Watts","Value":14},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4154K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4154K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4154K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4154KSLEP	400mm diameter	1755	14	4000K, Ra80	Silver	Fixed Output	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1755},{"Name":"Circuit Watts","Value":14},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4154K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4154K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4154K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4154KW	400mm diameter	1755	14	4000K, Ra80	White	Fixed Output	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1755},{"Name":"Circuit Watts","Value":14},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4154K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4154K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4154K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4154KWLEM	400mm diameter	1755	14	4000K, Ra80	White	Fixed Output	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1755},{"Name":"Circuit Watts","Value":14},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4154K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4154K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4154K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4154KWLEP	400mm diameter	1755	14	4000K, Ra80	White	Fixed Output	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1755},{"Name":"Circuit Watts","Value":14},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4154K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4154K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4154K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4204KS	400mm diameter	2359	19	4000K, Ra80	Silver	Fixed Output	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2359},{"Name":"Circuit Watts","Value":19},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4204K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4204K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4204K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4204KSLEM	400mm diameter	2359	19	4000K, Ra80	Silver	Fixed Output	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2359},{"Name":"Circuit Watts","Value":19},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4204K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4204K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4204K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4204KSLEP	400mm diameter	2359	19	4000K, Ra80	Silver	Fixed Output	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2359},{"Name":"Circuit Watts","Value":19},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4204K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4204K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4204K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4204KW	400mm diameter	2359	19	4000K, Ra80	White	Fixed Output	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2359},{"Name":"Circuit Watts","Value":19},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4204K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4204K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4204K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4204KWLEM	400mm diameter	2359	19	4000K, Ra80	White	Fixed Output	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2359},{"Name":"Circuit Watts","Value":19},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4204K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4204K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4204K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4204KWLEP	400mm diameter	2359	19	4000K, Ra80	White	Fixed Output	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2359},{"Name":"Circuit Watts","Value":19},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4204K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4204K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4204K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4274KS	400mm diameter	2790	21	4000K, Ra80	Silver	Fixed Output	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2790},{"Name":"Circuit Watts","Value":21},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":131},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4274K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4274K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4274K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4274KSLEM	400mm diameter	2790	21	4000K, Ra80	Silver	Fixed Output	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2790},{"Name":"Circuit Watts","Value":21},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":131},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4274K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4274K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4274K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4274KSLEP	400mm diameter	2790	21	4000K, Ra80	Silver	Fixed Output	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2790},{"Name":"Circuit Watts","Value":21},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":131},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4274K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4274K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4274K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4274KW	400mm diameter	2790	21	4000K, Ra80	White	Fixed Output	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2790},{"Name":"Circuit Watts","Value":21},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":131},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4274K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4274K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4274K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4274KWLEM	400mm diameter	2790	21	4000K, Ra80	White	Fixed Output	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2790},{"Name":"Circuit Watts","Value":21},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":131},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4274K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4274K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4274K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4274KWLEP	400mm diameter	2790	21	4000K, Ra80	White	Fixed Output	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2790},{"Name":"Circuit Watts","Value":21},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":131},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4274K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4274K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4274K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4354KS	400mm diameter	3549	28	4000K, Ra80	Silver	Fixed Output	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3549},{"Name":"Circuit Watts","Value":28},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4354K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4354K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4354K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4354KSLEM	400mm diameter	3549	28	4000K, Ra80	Silver	Fixed Output	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3549},{"Name":"Circuit Watts","Value":28},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4354K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4354K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4354K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4354KSLEP	400mm diameter	3549	28	4000K, Ra80	Silver	Fixed Output	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3549},{"Name":"Circuit Watts","Value":28},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4354K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4354K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4354K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4354KW	400mm diameter	3549	28	4000K, Ra80	White	Fixed Output	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3549},{"Name":"Circuit Watts","Value":28},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4354K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4354K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4354K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4354KWLEM	400mm diameter	3549	28	4000K, Ra80	White	Fixed Output	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3549},{"Name":"Circuit Watts","Value":28},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4354K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4354K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4354K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4H4354KWLEP	400mm diameter	3549	28	4000K, Ra80	White	Fixed Output	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3549},{"Name":"Circuit Watts","Value":28},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4354K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4354K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4354K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54154KS	400mm diameter	1755	14	4000K, Ra80	Silver	Fixed Output	N/A	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1755},{"Name":"Circuit Watts","Value":14},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4154K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4154K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4154K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54154KSLEM	400mm diameter	1755	14	4000K, Ra80	Silver	Fixed Output	3 hr EM LiFeP04	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1755},{"Name":"Circuit Watts","Value":14},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4154K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4154K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4154K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54154KSLEP	400mm diameter	1755	14	4000K, Ra80	Silver	Fixed Output	3 hr EP LiFeP04	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1755},{"Name":"Circuit Watts","Value":14},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4154K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4154K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4154K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54154KW	400mm diameter	1755	14	4000K, Ra80	White	Fixed Output	N/A	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1755},{"Name":"Circuit Watts","Value":14},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4154K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4154K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4154K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54154KWLEM	400mm diameter	1755	14	4000K, Ra80	White	Fixed Output	3 hr EM LiFeP04	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1755},{"Name":"Circuit Watts","Value":14},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4154K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4154K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4154K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54154KWLEP	400mm diameter	1755	14	4000K, Ra80	White	Fixed Output	3 hr EP LiFeP04	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1755},{"Name":"Circuit Watts","Value":14},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4154K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4154K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4154K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54204KS	400mm diameter	2359	19	4000K, Ra80	Silver	Fixed Output	N/A	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2359},{"Name":"Circuit Watts","Value":19},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4204K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4204K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4204K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54204KSLEM	400mm diameter	2359	19	4000K, Ra80	Silver	Fixed Output	3 hr EM LiFeP04	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2359},{"Name":"Circuit Watts","Value":19},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4204K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4204K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4204K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54204KSLEP	400mm diameter	2359	19	4000K, Ra80	Silver	Fixed Output	3 hr EP LiFeP04	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2359},{"Name":"Circuit Watts","Value":19},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4204K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4204K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4204K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54204KW	400mm diameter	2359	19	4000K, Ra80	White	Fixed Output	N/A	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2359},{"Name":"Circuit Watts","Value":19},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4204K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4204K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4204K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54204KWLEM	400mm diameter	2359	19	4000K, Ra80	White	Fixed Output	3 hr EM LiFeP04	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2359},{"Name":"Circuit Watts","Value":19},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4204K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4204K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4204K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54204KWLEP	400mm diameter	2359	19	4000K, Ra80	White	Fixed Output	3 hr EP LiFeP04	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2359},{"Name":"Circuit Watts","Value":19},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4204K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4204K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4204K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54274KS	400mm diameter	2790	21	4000K, Ra80	Silver	Fixed Output	N/A	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2790},{"Name":"Circuit Watts","Value":21},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":131},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4274K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4274K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4274K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54274KSLEM	400mm diameter	2790	21	4000K, Ra80	Silver	Fixed Output	3 hr EM LiFeP04	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2790},{"Name":"Circuit Watts","Value":21},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":131},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4274K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4274K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4274K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54274KSLEP	400mm diameter	2790	21	4000K, Ra80	Silver	Fixed Output	3 hr EP LiFeP04	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2790},{"Name":"Circuit Watts","Value":21},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":131},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4274K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4274K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4274K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54274KW	400mm diameter	2790	21	4000K, Ra80	White	Fixed Output	N/A	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2790},{"Name":"Circuit Watts","Value":21},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":131},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4274K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4274K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4274K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54274KWLEM	400mm diameter	2790	21	4000K, Ra80	White	Fixed Output	3 hr EM LiFeP04	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2790},{"Name":"Circuit Watts","Value":21},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":131},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4274K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4274K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4274K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54274KWLEP	400mm diameter	2790	21	4000K, Ra80	White	Fixed Output	3 hr EP LiFeP04	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2790},{"Name":"Circuit Watts","Value":21},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":131},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4274K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4274K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4274K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54354KS	400mm diameter	3549	28	4000K, Ra80	Silver	Fixed Output	N/A	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3549},{"Name":"Circuit Watts","Value":28},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4354K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4354K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4354K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54354KSLEM	400mm diameter	3549	28	4000K, Ra80	Silver	Fixed Output	3 hr EM LiFeP04	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3549},{"Name":"Circuit Watts","Value":28},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4354K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4354K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4354K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54354KSLEP	400mm diameter	3549	28	4000K, Ra80	Silver	Fixed Output	3 hr EP LiFeP04	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3549},{"Name":"Circuit Watts","Value":28},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4354K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4354K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4354K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54354KW	400mm diameter	3549	28	4000K, Ra80	White	Fixed Output	N/A	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3549},{"Name":"Circuit Watts","Value":28},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4354K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4354K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4354K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54354KWLEM	400mm diameter	3549	28	4000K, Ra80	White	Fixed Output	3 hr EM LiFeP04	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3549},{"Name":"Circuit Watts","Value":28},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4354K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4354K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4354K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Q54354KWLEP	400mm diameter	3549	28	4000K, Ra80	White	Fixed Output	3 hr EP LiFeP04	COM5 (WITH SETBACK)	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3549},{"Name":"Circuit Watts","Value":28},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"Fixed Output"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"COM5 (WITH SETBACK)"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4354K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4354K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4354K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4154KS	400mm diameter	1755	14	4000K, Ra80	Silver	DALI LED Driver	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1755},{"Name":"Circuit Watts","Value":14},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4154K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4154K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4154K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4154KSLEM	400mm diameter	1755	14	4000K, Ra80	Silver	DALI LED Driver	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1755},{"Name":"Circuit Watts","Value":14},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4154K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4154K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4154K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4154KSLEP	400mm diameter	1755	14	4000K, Ra80	Silver	DALI LED Driver	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1755},{"Name":"Circuit Watts","Value":14},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4154K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4154K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4154K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4154KW	400mm diameter	1755	14	4000K, Ra80	White	DALI LED Driver	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1755},{"Name":"Circuit Watts","Value":14},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4154K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4154K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4154K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4154KWLEM	400mm diameter	1755	14	4000K, Ra80	White	DALI LED Driver	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1755},{"Name":"Circuit Watts","Value":14},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4154K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4154K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4154K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4154KWLEP	400mm diameter	1755	14	4000K, Ra80	White	DALI LED Driver	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1755},{"Name":"Circuit Watts","Value":14},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4154K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4154K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4154K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4204KS	400mm diameter	2359	19	4000K, Ra80	Silver	DALI LED Driver	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2359},{"Name":"Circuit Watts","Value":19},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4204K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4204K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4204K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4204KSLEM	400mm diameter	2359	19	4000K, Ra80	Silver	DALI LED Driver	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2359},{"Name":"Circuit Watts","Value":19},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4204K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4204K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4204K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4204KSLEP	400mm diameter	2359	19	4000K, Ra80	Silver	DALI LED Driver	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2359},{"Name":"Circuit Watts","Value":19},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4204K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4204K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4204K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4204KW	400mm diameter	2359	19	4000K, Ra80	White	DALI LED Driver	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2359},{"Name":"Circuit Watts","Value":19},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4204K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4204K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4204K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4204KWLEM	400mm diameter	2359	19	4000K, Ra80	White	DALI LED Driver	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2359},{"Name":"Circuit Watts","Value":19},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4204K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4204K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4204K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4204KWLEP	400mm diameter	2359	19	4000K, Ra80	White	DALI LED Driver	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2359},{"Name":"Circuit Watts","Value":19},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4204K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4204K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4204K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4274KS	400mm diameter	2790	21	4000K, Ra80	Silver	DALI LED Driver	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2790},{"Name":"Circuit Watts","Value":21},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":131},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4274K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4274K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4274K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4274KSLEM	400mm diameter	2790	21	4000K, Ra80	Silver	DALI LED Driver	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2790},{"Name":"Circuit Watts","Value":21},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":131},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4274K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4274K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4274K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4274KSLEP	400mm diameter	2790	21	4000K, Ra80	Silver	DALI LED Driver	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2790},{"Name":"Circuit Watts","Value":21},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":131},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4274K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4274K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4274K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4274KW	400mm diameter	2790	21	4000K, Ra80	White	DALI LED Driver	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2790},{"Name":"Circuit Watts","Value":21},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":131},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4274K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4274K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4274K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4274KWLEM	400mm diameter	2790	21	4000K, Ra80	White	DALI LED Driver	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2790},{"Name":"Circuit Watts","Value":21},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":131},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4274K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4274K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4274K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4274KWLEP	400mm diameter	2790	21	4000K, Ra80	White	DALI LED Driver	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2790},{"Name":"Circuit Watts","Value":21},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":131},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4274K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4274K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4274K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4354KS	400mm diameter	3549	28	4000K, Ra80	Silver	DALI LED Driver	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3549},{"Name":"Circuit Watts","Value":28},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4354K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4354K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4354K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4354KSLEM	400mm diameter	3549	28	4000K, Ra80	Silver	DALI LED Driver	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3549},{"Name":"Circuit Watts","Value":28},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4354K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4354K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4354K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4354KSLEP	400mm diameter	3549	28	4000K, Ra80	Silver	DALI LED Driver	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3549},{"Name":"Circuit Watts","Value":28},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4354K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4354K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4354K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4354KW	400mm diameter	3549	28	4000K, Ra80	White	DALI LED Driver	N/A	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3549},{"Name":"Circuit Watts","Value":28},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4354K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4354K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4354K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4354KWLEM	400mm diameter	3549	28	4000K, Ra80	White	DALI LED Driver	3 hr EM LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3549},{"Name":"Circuit Watts","Value":28},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4354K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4354K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4354K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}
K4Y4354KWLEP	400mm diameter	3549	28	4000K, Ra80	White	DALI LED Driver	3 hr EP LiFeP04	N/A	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3549},{"Name":"Circuit Watts","Value":28},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":128},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"kolo-surface-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"kolo-surface-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"kolo-surface-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"K4H4354K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"K4H4354K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"K4H4354K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"kolo-surface-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"kolo-surface-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"kolo-surface-ies.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"kolo-surface-revit.zip"}}

Accessory - trim ring Number of Parts 4

Click on part code below for downloads

Part Code	Description	Output (lm)	Power (W)	Product Colour	Driver Type	Accessory
KLTR300S	Accessory - trim ring	N/A	N/A	Silver	N/A	Y	[{"Name":"LED Life Performance","Value":"N\/A"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":"N\/A"},{"Name":"Circuit Watts","Value":"N\/A"},{"Name":"LOR","Value":"N\/A"},{"Name":"Lumen per circuit watt","Value":"N\/A"},{"Name":"Lamp type","Value":""},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"N\/A"},{"Name":"Emergency type","Value":""},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":""}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p2.jpg"}}
KLTR400S	Accessory - trim ring	N/A	N/A	Silver	N/A	Y	[{"Name":"LED Life Performance","Value":"N\/A"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":"N\/A"},{"Name":"Circuit Watts","Value":"N\/A"},{"Name":"LOR","Value":"N\/A"},{"Name":"Lumen per circuit watt","Value":"N\/A"},{"Name":"Lamp type","Value":""},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"N\/A"},{"Name":"Emergency type","Value":""},{"Name":"Product Colour","Value":"Silver"},{"Name":"Integral Controls","Value":""}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p2.jpg"}}
KLTR300W	Accessory - trim ring	N/A	N/A	White	N/A	Y	[{"Name":"LED Life Performance","Value":"N\/A"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":"N\/A"},{"Name":"Circuit Watts","Value":"N\/A"},{"Name":"LOR","Value":"N\/A"},{"Name":"Lumen per circuit watt","Value":"N\/A"},{"Name":"Lamp type","Value":""},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"N\/A"},{"Name":"Emergency type","Value":""},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":""}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p2.jpg"}}
KLTR400W	Accessory - trim ring	N/A	N/A	White	N/A	Y	[{"Name":"LED Life Performance","Value":"N\/A"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":"N\/A"},{"Name":"Circuit Watts","Value":"N\/A"},{"Name":"LOR","Value":"N\/A"},{"Name":"Lumen per circuit watt","Value":"N\/A"},{"Name":"Lamp type","Value":""},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"N\/A"},{"Name":"Emergency type","Value":""},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":""}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"kolo-surface-p2.jpg"}}

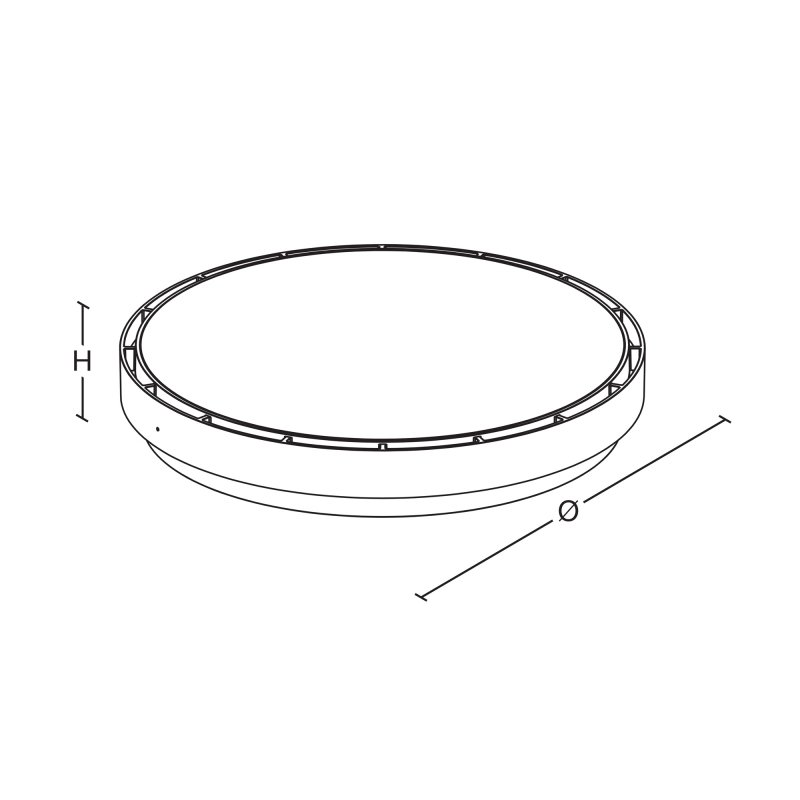

VERSION	H	KG	KG(EM)	Ø	CAØ
300mm recessed	95	2	2.5	320	310
400mm recessed	95	3.4	3.8	420	410
300mm surface	95	2	2.5	300
400mm surface	95	3.4	3.8	400

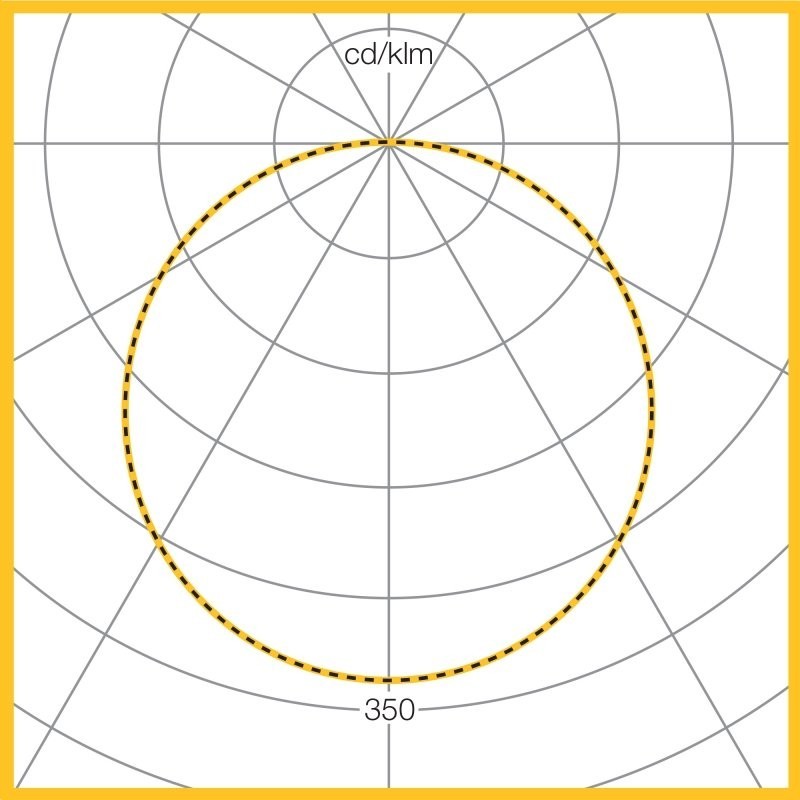

Photometric Performance

Kolo Surface 300mm

LOR = 100%

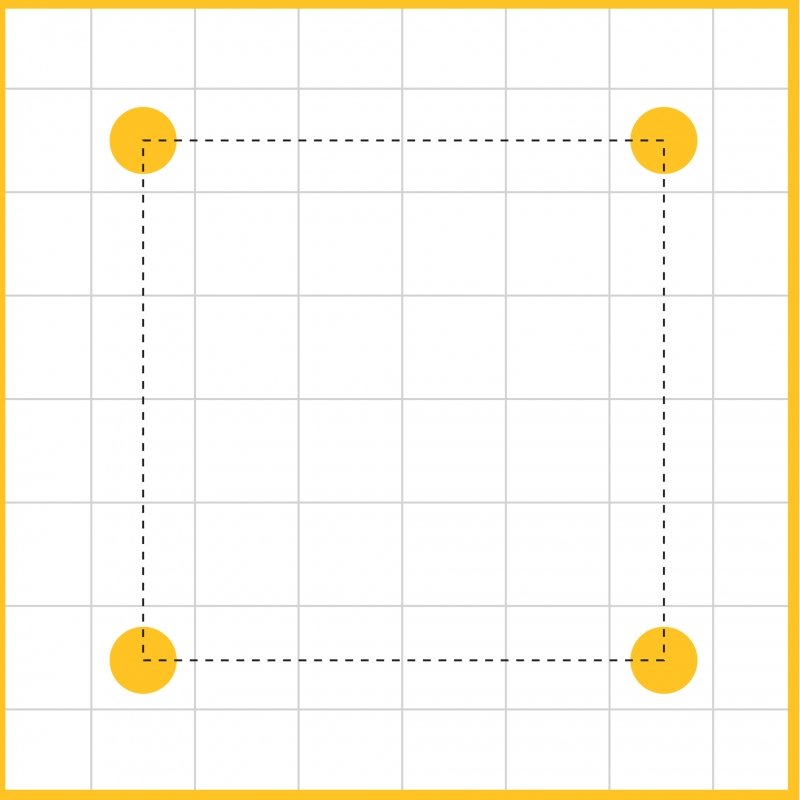

Performance Guide

Lamps: 19W LED
Illuminance: 200 lux
Spacing: 3.0m x 3.0m

Maintenance: 0.8
Reflectance: 70/50/20
Ceiling Height: 2.7m
Working plane: 0.8m

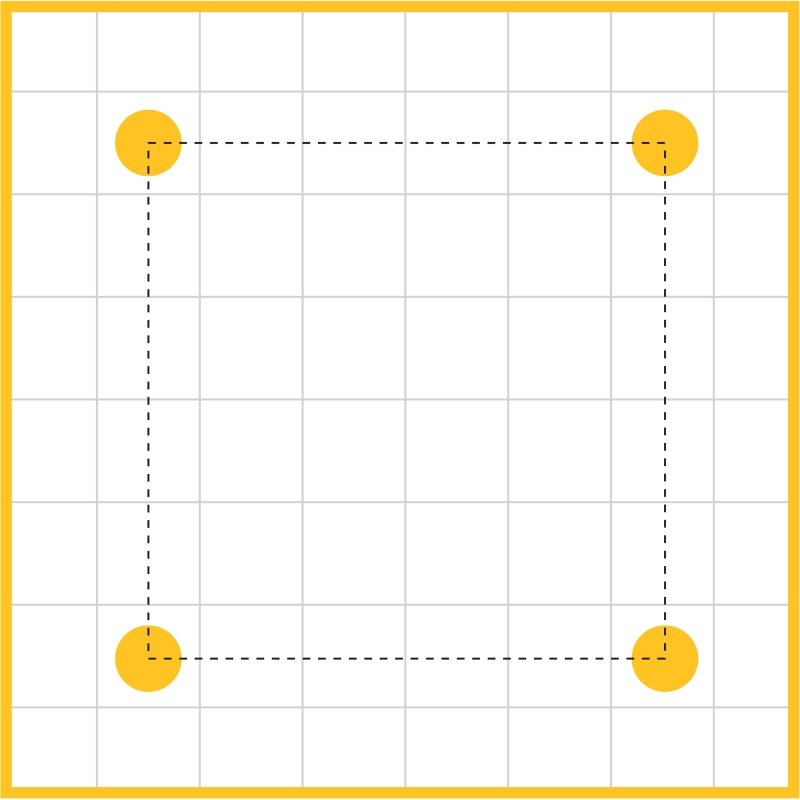

Lamps: 28W LED
Illuminance: 246 lux
Spacing: 3.0m x 3.0m

Maintenance: 0.8
Reflectance: 70/50/20
Ceiling Height: 2.7m
Working plane: 0.8m

LED Performance

Colour Temp	RA (CRI)	Colour consistency
4000K	>80	MacAdam 3 SDCM

Surface mounted circular IP44 LED bulkhead luminaire in 300 or 400mm diameter. Polycarbonate opal diffuser. Optional integrated microwave presence detector with ON/OFF - as Whitecroft Lighting KOLO SURFACE

Product Downloads

Single download

Add to ZIP

PDF Kolo Brochure

PDF Installation Leaflet

ZIP LDT

ZIP Relux

ZIP Dialux

PDF Kolo Surface Datasheet

ZIP Revit - Kolo Surface

ZIP Revit - Kolo Recessed

PDF Maintenance Factors
