Overview

Foil: reimagined - buiding on the history of the Foil family, the latest version of Foil takes lighting quality, acoustic performance, architectural integration and sustainability to a new level. Designed to deliver inspiring, motivational and comfortable spaces whatever the project needs within both educational and workplace environments.

Service integration reduces the build programme and ensures a clutter free working or learning environment.

Lighting Performance

  • Optics:
    • Drop Diffuser: Opal diffuser to maximise vertical illumination with maximum layout flexibilty. Large surface area to maximise visual comfort and support the delivery of glare compliant spaces.
    • Flush: Quadarprism to deliver effective glare control and maximise user comfort within the space.

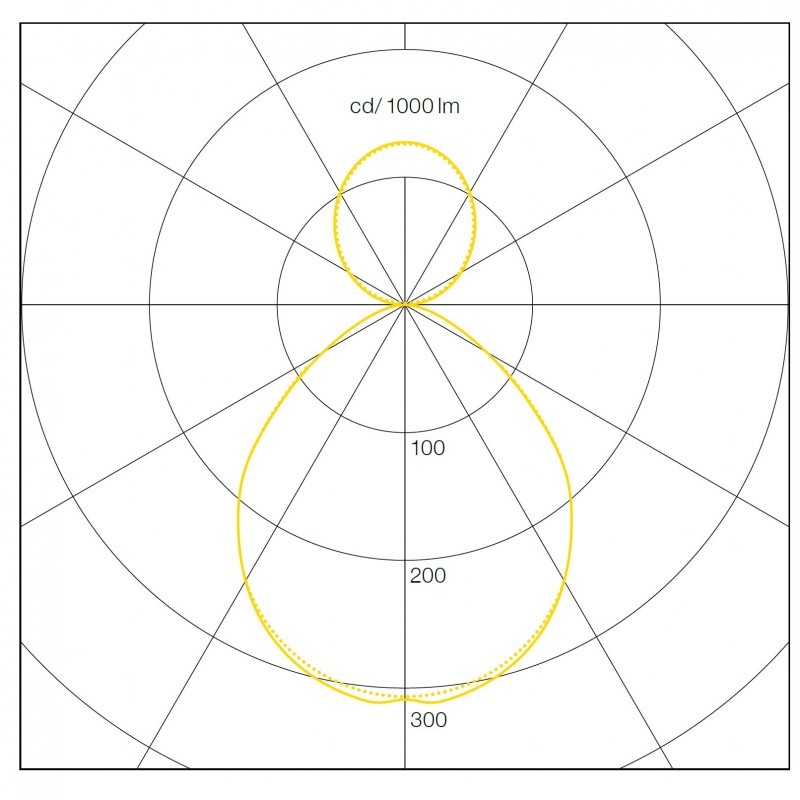

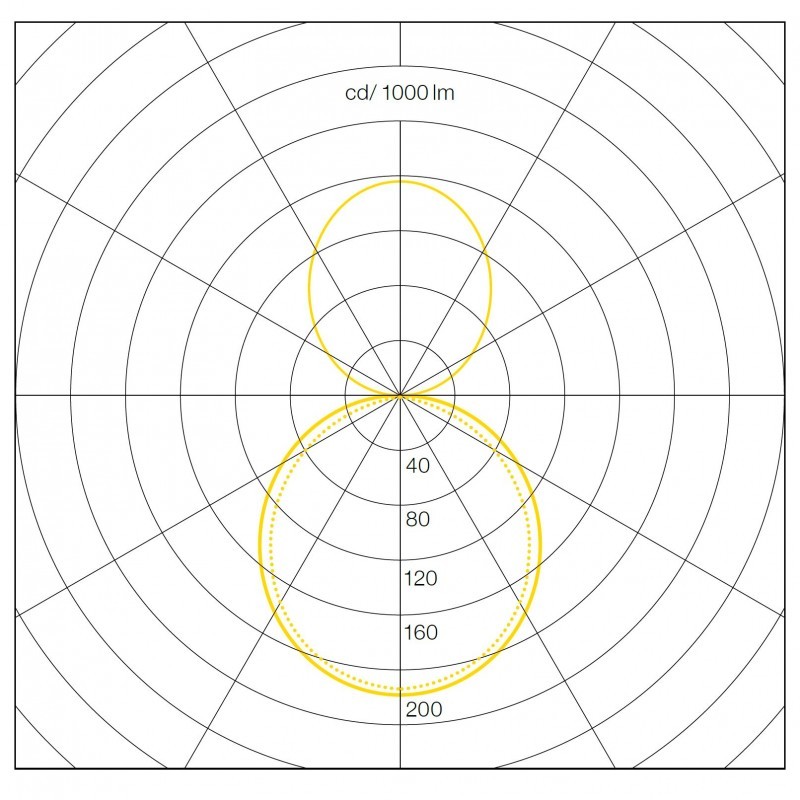

  • Distribution:
    • Drop Diffuser: 66% down, 34% Up
    • Flush: 70% down, 30% Up
  • Output options:
    • Flush (based on 4K, Ra80):
      • 1800mm - 3762Llm/26.6W (141.4Llm/w)
      • 2400mm - 3711Llm/25W (148.4Llm/w)
      • 2400mm - 4714/31.7W (148.7Llm/w)
      • 2400mm - 5718/38.8W (147.4Llm/w)
    • Drop (based on 4K, Ra80):
      • 1800mm - 3936Llm/28.6W (137.6Llm/w)
      • 2400mm - 4796Llm/33.5W (143.2Llm/w)
      • 2400mm - 5781Llm/40.6W (142.4Llm/w)
      • 2400mm - 7041Llm/50.2W (140.3Llm/w)*
  • Light sources available:
    • Ra80 or Ra90
    • 3000K or 4000K
  • LED chip: Standard (2835) & E-light (3030) available. E-light offers up to 8% energy saving versus standard LED technology.
  • Control Gear: DALI as standard
  • Lighting Controls: Option with Organic Response detector.
  • Emergency Lighting:
    • Integrated 3 hour LiFeP04. 3hr Keyswitch (EM), auto-test (EP) and wireless auto-test (EW) availabe.
    • Output (based on 4K, Ra80 Std Chips):
      • Flush - 412 lumens
      • Drop - 372 lumens

For specific product variant information, including lifetime, efficacy, power, output and electrical data, please click on the individual part number under 'Order Codes' and view the datasheet

* >3,000cd/m2







Part Code Logic:

Foil Part Code Logic



Construction

  • Integrated lighting, acoustics and service system
  • Main Body:
    • Steel body
    • RAL Colour: Silver RAL9006
    • IP44 version as standard to ensure compliance to DfE Annex 2E & SLL Handbook for Science/Technology Classrooms.
  • Acoustics:
    • LIght & Dark acoustic material available. Other colours available through Custom Made
    • 48mm deep acoustic attenuation side panels.
    • Made from >40% pre & post consumer recycled content.
    • Front Felt PET material.
    • Fire Classification: tested in accordance with EN13501 and is C-s1-d0 certified.
    • Acoustic performance test available from the 'Downloads' section.
  • Multiple Accessories to suit project requirements:
    • Infills:
      • 300mm**
      • 600mm**
      • 900mm
      • 1200mm
      • 1500mm
    • Additional:
      • Suspension Kit (3m) - Note this is NOT required for 300mm or 600mm infill sections.
      • Starter Bracket - Bracket for fixing infill or luminaire to a wall.
      • End Cap - Single piece
  • Innovative Modular Build Construction:
    • Reduced time risk for on site management
    • Removal of superfluous material to reduce weight from luminaire
    • Out of box opertation with use of Organic Response controls
    • Innovative packaging solution to streamline onsite management
    • Flexible installation methodology to suit project timelines.
  • Service Ways:
    • To meet the requirements of emergency service standards such as BS5839-1 (Fire Detection and Fire Alarm Systems) the Foil luminaire is designed with 2 separate wireway compartments to ensure full separation of services.
    • 90mm clear space available for integration of other services

**suspension kit NOT required.

Enquire about this product
Family Datasheet
Product Downloads

Customise your solution

Explore custom made

Create your own

Customise this product

Enquire now Find out more

Looking for a custom made solution?

Our Custom Made facility caters to your unique requirements, whether you need completely bespoke luminaires or adaptations to standard products. Please complete the form below and we will be in touch to discuss your unique requirements.

Submit
full width image
Clear filters

Click on part code below for downloads

Part Code Type Length Acoustic/Body Colour Optic Actual Lumens Light Source Gear Emergency Type Integral Controls
FY23K8B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3525 3000K, Ra80 DALI LED Driver N/A N/A
FY23K8BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3525 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY23K8BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3525 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY23K8BEW Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3525 3000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY23K8G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3525 3000K, Ra80 DALI LED Driver N/A N/A
FY23K8GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3525 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY23K8GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3525 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY23K8GEW Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3525 3000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY23K9B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 2783 3000K, Ra90 DALI LED Driver N/A N/A
FY23K9BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 2783 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY23K9BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 2783 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY23K9BEW Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 2783 3000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY23K9G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 2783 3000K, Ra90 DALI LED Driver N/A N/A
FY23K9GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 2783 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY23K9GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 2783 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY23K9GEW Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 2783 3000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY24K8B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3711 4000K, Ra80 DALI LED Driver N/A N/A
FY24K8BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3711 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY24K8BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3711 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY24K8BEW Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3711 4000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY24K8G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3711 4000K, Ra80 DALI LED Driver N/A N/A
FY24K8GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3711 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY24K8GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3711 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY24K8GEW Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3711 4000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY24K9B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 2857 4000K, Ra90 DALI LED Driver N/A N/A
FY24K9BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 2857 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY24K9BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 2857 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY24K9BEW Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 2857 4000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY24K9G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 2857 4000K, Ra90 DALI LED Driver N/A N/A
FY24K9GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 2857 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY24K9GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 2857 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY24K9GEW Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 2857 4000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY33K8B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4478 3000K, Ra80 DALI LED Driver N/A N/A
FY33K8BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4478 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY33K8BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4478 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY33K8BEW Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4478 3000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY33K8G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4478 3000K, Ra80 DALI LED Driver N/A N/A
FY33K8GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4478 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY33K8GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4478 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY33K8GEW Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4478 3000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY33K9B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3536 3000K, Ra90 DALI LED Driver N/A N/A
FY33K9BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3536 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY33K9BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3536 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY33K9BEW Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3536 3000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY33K9G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3536 3000K, Ra90 DALI LED Driver N/A N/A
FY33K9GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3536 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY33K9GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3536 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY33K9GEW Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3536 3000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY34K8B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4714 4000K, Ra80 DALI LED Driver N/A N/A
FY34K8BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4714 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY34K8BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4714 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY34K8BEW Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4714 4000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY34K8G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4714 4000K, Ra80 DALI LED Driver N/A N/A
FY34K8GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4714 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY34K8GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4714 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY34K8GEW Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4714 4000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY34K9B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3630 4000K, Ra90 DALI LED Driver N/A N/A
FY34K9BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3630 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY34K9BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3630 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY34K9BEW Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3630 4000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY34K9G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3630 4000K, Ra90 DALI LED Driver N/A N/A
FY34K9GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3630 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY34K9GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3630 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY34K9GEW Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3630 4000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY43K8B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 5432 3000K, Ra80 DALI LED Driver N/A N/A
FY43K8BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 5432 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY43K8BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 5432 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY43K8BEW Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 5432 3000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY43K8G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 5432 3000K, Ra80 DALI LED Driver N/A N/A
FY43K8GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 5432 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY43K8GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 5432 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY43K8GEW Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 5432 3000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY43K9B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4289 3000K, Ra90 DALI LED Driver N/A N/A
FY43K9BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4289 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY43K9BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4289 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY43K9BEW Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4289 3000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY43K9G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4289 3000K, Ra90 DALI LED Driver N/A N/A
FY43K9GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4289 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY43K9GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4289 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY43K9GEW Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4289 3000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY44K8B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 5718 4000K, Ra80 DALI LED Driver N/A N/A
FY44K8BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 5718 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY44K8BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 5718 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY44K8BEW Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 5718 4000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY44K8G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 5718 4000K, Ra80 DALI LED Driver N/A N/A
FY44K8GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 5718 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY44K8GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 5718 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY44K8GEW Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 5718 4000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY44K9B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4403 4000K, Ra90 DALI LED Driver N/A N/A
FY44K9BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4403 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY44K9BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4403 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY44K9BEW Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4403 4000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY44K9G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4403 4000K, Ra90 DALI LED Driver N/A N/A
FY44K9GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4403 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY44K9GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4403 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY44K9GEW Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4403 4000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FRGY23K8B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3525 3000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY23K8BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3525 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY23K8BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3525 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY23K8G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3525 3000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY23K8GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3525 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY23K8GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3525 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY23K9B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 2783 3000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY23K9BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 2783 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY23K9BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 2783 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY23K9G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 2783 3000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY23K9GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 2783 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY23K9GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 2783 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY24K8B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3711 4000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY24K8BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3711 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY24K8BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3711 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY24K8G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3711 4000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY24K8GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3711 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY24K8GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3711 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY24K9B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 2857 4000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY24K9BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 2857 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY24K9BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 2857 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY24K9G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 2857 4000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY24K9GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 2857 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY24K9GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 2857 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY33K8B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4478 3000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY33K8BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4478 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY33K8BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4478 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY33K8G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4478 3000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY33K8GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4478 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY33K8GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4478 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY33K9B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3536 3000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY33K9BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3536 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY33K9BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3536 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY33K9G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3536 3000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY33K9GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3536 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY33K9GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3536 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY34K8B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4714 4000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY34K8BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4714 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY34K8BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4714 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY34K8G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4714 4000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY34K8GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4714 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY34K8GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4714 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY34K9B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3630 4000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY34K9BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3630 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY34K9BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 3630 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY34K9G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3630 4000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY34K9GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3630 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY34K9GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 3630 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY43K8B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 5432 3000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY43K8BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 5432 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY43K8BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 5432 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY43K8G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 5432 3000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY43K8GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 5432 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY43K8GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 5432 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY43K9B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4289 3000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY43K9BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4289 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY43K9BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4289 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY43K9G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4289 3000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY43K9GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4289 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY43K9GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4289 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY44K8B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 5718 4000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY44K8BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 5718 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY44K8BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 5718 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY44K8G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 5718 4000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY44K8GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 5718 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY44K8GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 5718 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY44K9B Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4403 4000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY44K9BEM Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4403 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY44K9BEP Flush Optic 2400mm Body 2400 Black Acoustic, Grey Body Flush 4403 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY44K9G Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4403 4000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY44K9GEM Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4403 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY44K9GEP Flush Optic 2400mm Body 2400 Light Grey, Grey Body Flush 4403 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3

Click on part code below for downloads

Part Code Type Length Acoustic/Body Colour Optic Actual Lumens Light Source Gear Emergency Type Integral Controls
FY63K8B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4531 3000K, Ra80 DALI LED Driver N/A N/A
FY63K8BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4531 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY63K8BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4531 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY63K8BEW Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4531 3000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY63K8G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4531 3000K, Ra80 DALI LED Driver N/A N/A
FY63K8GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4531 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY63K8GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4531 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY63K8GEW Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4531 3000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY63K9B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 3562 3000K, Ra90 DALI LED Driver N/A N/A
FY63K9BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 3562 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY63K9BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 3562 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY63K9BEW Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 3562 3000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY63K9G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 3562 3000K, Ra90 DALI LED Driver N/A N/A
FY63K9GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 3562 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY63K9GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 3562 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY63K9GEW Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 3562 3000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY64K8B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4796 4000K, Ra80 DALI LED Driver N/A N/A
FY64K8BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4796 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY64K8BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4796 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY64K8BEW Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4796 4000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY64K8G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4796 4000K, Ra80 DALI LED Driver N/A N/A
FY64K8GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4796 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY64K8GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4796 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY64K8GEW Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4796 4000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY64K9B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 3672 4000K, Ra90 DALI LED Driver N/A N/A
FY64K9BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 3672 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY64K9BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 3672 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY64K9BEW Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 3672 4000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY64K9G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 3672 4000K, Ra90 DALI LED Driver N/A N/A
FY64K9GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 3672 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY64K9GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 3672 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY64K9GEW Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 3672 4000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY73K8B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5492 3000K, Ra80 DALI LED Driver N/A N/A
FY73K8BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5492 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY73K8BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5492 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY73K8BEW Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5492 3000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY73K8G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5492 3000K, Ra80 DALI LED Driver N/A N/A
FY73K8GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5492 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY73K8GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5492 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY73K8GEW Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5492 3000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY73K9B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4318 3000K, Ra90 DALI LED Driver N/A N/A
FY73K9BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4318 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY73K9BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4318 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY73K9BEW Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4318 3000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY73K9G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4318 3000K, Ra90 DALI LED Driver N/A N/A
FY73K9GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4318 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY73K9GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4318 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY73K9GEW Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4318 3000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY74K8B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5781 4000K, Ra80 DALI LED Driver N/A N/A
FY74K8BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5781 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY74K8BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5781 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY74K8BEW Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5781 4000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY74K8G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5781 4000K, Ra80 DALI LED Driver N/A N/A
FY74K8GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5781 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY74K8GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5781 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY74K8GEW Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5781 4000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY74K9B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4451 4000K, Ra90 DALI LED Driver N/A N/A
FY74K9BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4451 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY74K9BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4451 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY74K9BEW Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4451 4000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY74K9G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4451 4000K, Ra90 DALI LED Driver N/A N/A
FY74K9GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4451 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY74K9GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4451 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY74K9GEW Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4451 4000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY83K8B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 6689 3000K, Ra80 DALI LED Driver N/A N/A
FY83K8BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 6689 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY83K8BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 6689 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY83K8BEW Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 6689 3000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY83K8G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 6689 3000K, Ra80 DALI LED Driver N/A N/A
FY83K8GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 6689 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY83K8GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 6689 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY83K8GEW Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 6689 3000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY83K9B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5260 3000K, Ra90 DALI LED Driver N/A N/A
FY83K9BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5260 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY83K9BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5260 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY83K9BEW Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5260 3000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY83K9G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5260 3000K, Ra90 DALI LED Driver N/A N/A
FY83K9GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5260 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY83K9GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5260 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY83K9GEW Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5260 3000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY84K8B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 7041 4000K, Ra80 DALI LED Driver N/A N/A
FY84K8BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 7041 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY84K8BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 7041 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY84K8BEW Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 7041 4000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY84K8G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 7041 4000K, Ra80 DALI LED Driver N/A N/A
FY84K8GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 7041 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY84K8GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 7041 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY84K8GEW Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 7041 4000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY84K9B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5422 4000K, Ra90 DALI LED Driver N/A N/A
FY84K9BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5422 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY84K9BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5422 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY84K9BEW Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5422 4000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY84K9G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5422 4000K, Ra90 DALI LED Driver N/A N/A
FY84K9GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5422 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY84K9GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5422 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY84K9GEW Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5422 4000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FRGY63K8B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4531 3000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY63K8BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4531 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY63K8BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4531 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY63K8G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4531 3000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY63K8GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4531 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY63K8GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4531 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY63K9B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 3562 3000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY63K9BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 3562 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY63K9BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 3562 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY63K9G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 3562 3000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY63K9GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 3562 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY63K9GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 3562 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY64K8B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4796 4000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY64K8BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4796 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY64K8BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4796 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY64K8G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4796 4000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY64K8GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4796 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY64K8GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4796 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY64K9B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 3672 4000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY64K9BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 3672 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY64K9BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 3672 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY64K9G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 3672 4000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY64K9GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 3672 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY64K9GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 3672 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY73K8B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5492 3000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY73K8BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5492 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY73K8BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5492 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY73K8G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5492 3000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY73K8GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5492 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY73K8GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5492 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY73K9B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4318 3000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY73K9BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4318 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY73K9BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4318 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY73K9G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4318 3000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY73K9GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4318 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY73K9GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4318 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY74K8B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5781 4000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY74K8BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5781 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY74K8BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5781 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY74K8G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5781 4000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY74K8GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5781 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY74K8GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5781 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY74K9B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4451 4000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY74K9BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4451 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY74K9BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 4451 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY74K9G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4451 4000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY74K9GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4451 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY74K9GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 4451 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY83K8B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 6689 3000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY83K8BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 6689 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY83K8BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 6689 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY83K8G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 6689 3000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY83K8GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 6689 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY83K8GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 6689 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY83K9B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5260 3000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY83K9BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5260 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY83K9BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5260 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY83K9G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5260 3000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY83K9GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5260 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY83K9GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5260 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY84K8B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 7041 4000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY84K8BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 7041 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY84K8BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 7041 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY84K8G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 7041 4000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY84K8GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 7041 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY84K8GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 7041 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY84K9B Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5422 4000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY84K9BEM Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5422 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY84K9BEP Drop Optic 2400mm Body 2400 Black Acoustic, Grey Body Drop 5422 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY84K9G Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5422 4000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY84K9GEM Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5422 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY84K9GEP Drop Optic 2400mm Body 2400 Light Grey, Grey Body Drop 5422 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3

Click on part code below for downloads

Part Code Type Length Acoustic/Body Colour Optic Actual Lumens Light Source Gear Emergency Type Integral Controls
FY13K8B Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 3569 3000K, Ra80 DALI LED Driver N/A N/A
FY13K8BEM Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 3569 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY13K8BEP Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 3569 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY13K8BEW Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 3569 3000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY13K8G Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 3569 3000K, Ra80 DALI LED Driver N/A N/A
FY13K8GEM Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 3569 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY13K8GEP Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 3569 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY13K8GEW Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 3569 3000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY13K9B Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 2818 3000K, Ra90 DALI LED Driver N/A N/A
FY13K9BEM Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 2818 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY13K9BEP Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 2818 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY13K9BEW Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 2818 3000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY13K9G Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 2818 3000K, Ra90 DALI LED Driver N/A N/A
FY13K9GEM Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 2818 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY13K9GEP Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 2818 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY13K9GEW Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 2818 3000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FRGY13K8B Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 3569 3000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY13K8BEM Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 3569 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY13K8BEP Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 3569 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY13K8G Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 3569 3000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY13K8GEM Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 3569 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY13K8GEP Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 3569 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY13K9B Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 2818 3000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY13K9BEM Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 2818 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY13K9BEP Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 2818 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY13K9G Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 2818 3000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY13K9GEM Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 2818 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY13K9GEP Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 2818 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FY14K8B Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 3762 4000K, Ra80 DALI LED Driver N/A N/A
FY14K8BEM Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 3762 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY14K8BEP Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 3762 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY14K8BEW Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 3762 4000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY14K8G Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 3762 4000K, Ra80 DALI LED Driver N/A N/A
FY14K8GEM Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 3762 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY14K8GEP Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 3762 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY14K8GEW Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 3762 4000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY14K9B Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 2893 4000K, Ra90 DALI LED Driver N/A N/A
FY14K9BEM Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 2893 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY14K9BEP Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 2893 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY14K9BEW Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 2893 4000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY14K9G Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 2893 4000K, Ra90 DALI LED Driver N/A N/A
FY14K9GEM Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 2893 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY14K9GEP Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 2893 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY14K9GEW Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 2893 4000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FRGY14K8B Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 3762 4000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY14K8BEM Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 3762 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY14K8BEP Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 3762 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY14K8G Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 3762 4000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY14K8GEM Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 3762 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY14K8GEP Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 3762 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY14K9B Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 2893 4000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY14K9BEM Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 2893 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY14K9BEP Flush Optic 1800mm Body 1800 Black Acoustic, Grey Body Flush 2893 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY14K9G Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 2893 4000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY14K9GEM Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 2893 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY14K9GEP Flush Optic 1800mm Body 1800 Light Grey, Grey Body Flush 2893 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3

Click on part code below for downloads

Part Code Type Length Acoustic/Body Colour Optic Actual Lumens Light Source Gear Emergency Type Integral Controls
FY53K8B Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 3739 3000K, Ra80 DALI LED Driver N/A N/A
FY53K8BEM Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 3739 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY53K8BEP Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 3739 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY53K8BEW Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 3739 3000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY53K8G Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 3739 3000K, Ra80 DALI LED Driver N/A N/A
FY53K8GEM Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 3739 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY53K8GEP Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 3739 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY53K8GEW Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 3739 3000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY53K9B Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 2940 3000K, Ra90 DALI LED Driver N/A N/A
FY53K9BEM Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 2940 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY53K9BEP Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 2940 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY53K9BEW Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 2940 3000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY53K9G Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 2940 3000K, Ra90 DALI LED Driver N/A N/A
FY53K9GEM Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 2940 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY53K9GEP Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 2940 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY53K9GEW Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 2940 3000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY54K8B Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 3936 4000K, Ra80 DALI LED Driver N/A N/A
FY54K8BEM Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 3936 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY54K8BEP Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 3936 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY54K8BEW Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 3936 4000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY54K8G Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 3936 4000K, Ra80 DALI LED Driver N/A N/A
FY54K8GEM Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 3936 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 N/A
FY54K8GEP Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 3936 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 N/A
FY54K8GEW Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 3936 4000K, Ra80 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY54K9B Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 3031 4000K, Ra90 DALI LED Driver N/A N/A
FY54K9BEM Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 3031 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY54K9BEP Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 3031 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY54K9BEW Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 3031 4000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FY54K9G Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 3031 4000K, Ra90 DALI LED Driver N/A N/A
FY54K9GEM Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 3031 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 N/A
FY54K9GEP Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 3031 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 N/A
FY54K9GEW Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 3031 4000K, Ra90 DALI LED Driver Routefinder Wireless LiFeP04 N/A
FRGY53K8B Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 3739 3000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY53K8BEM Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 3739 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY53K8BEP Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 3739 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY53K8G Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 3739 3000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY53K8GEM Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 3739 3000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY53K8GEP Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 3739 3000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY53K9B Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 2940 3000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY53K9BEM Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 2940 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY53K9BEP Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 2940 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY53K9G Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 2940 3000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY53K9GEM Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 2940 3000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY53K9GEP Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 2940 3000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY54K8B Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 3936 4000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY54K8BEM Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 3936 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY54K8BEP Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 3936 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY54K8G Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 3936 4000K, Ra80 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY54K8GEM Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 3936 4000K, Ra80 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY54K8GEP Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 3936 4000K, Ra80 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY54K9B Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 3031 4000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY54K9BEM Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 3031 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY54K9BEP Drop Optic 1800mm Body 1800 Black Acoustic, Grey Body Drop 3031 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3
FRGY54K9G Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 3031 4000K, Ra90 DALI LED Driver N/A ORGANIC RESPONSE 3
FRGY54K9GEM Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 3031 4000K, Ra90 DALI LED Driver 3 hr EM LiFeP04 ORGANIC RESPONSE 3
FRGY54K9GEP Drop Optic 1800mm Body 1800 Light Grey, Grey Body Drop 3031 4000K, Ra90 DALI LED Driver 3 hr EP LiFeP04 ORGANIC RESPONSE 3

Click on part code below for downloads

Part Code Type Length Acoustic/Body Colour Optic Actual Lumens Light Source Gear Emergency Type Integral Controls
F2SUSKIT Accessory N/A Suspension Kit N/A N/A N/A N/A N/A N/A
F2STCG Accessory N/A Wall Starter Bracket Grey Body N/A N/A N/A N/A N/A
F2ECG Accessory N/A End Cap (Single) Light Grey Body N/A N/A N/A N/A N/A
F2IN3G Accessory 300 Light Grey, Grey Body N/A N/A N/A N/A N/A
F2IN6G Accessory 600 Light Grey, Grey Body N/A N/A N/A N/A N/A
F2IN9G Accessory 900 Light Grey, Grey Body N/A N/A N/A N/A N/A
F2IN12G Accessory 1200 Light Grey, Grey Body N/A N/A N/A N/A N/A
F2IN15G Accessory 1500 Light Grey, Grey Body N/A N/A N/A N/A N/A
F2IN3B Accessory 300 Black Acoustic, Grey Body N/A N/A N/A N/A N/A
F2IN6B Accessory 600 Black Acoustic, Grey Body N/A N/A N/A N/A N/A
F2IN9B Accessory 900 Black Acoustic, Grey Body N/A N/A N/A N/A N/A
F2IN12B Accessory 1200 Black Acoustic, Grey Body N/A N/A N/A N/A N/A
F2IN15B Accessory 1500 Black Acoustic, Grey Body N/A N/A N/A N/A N/A

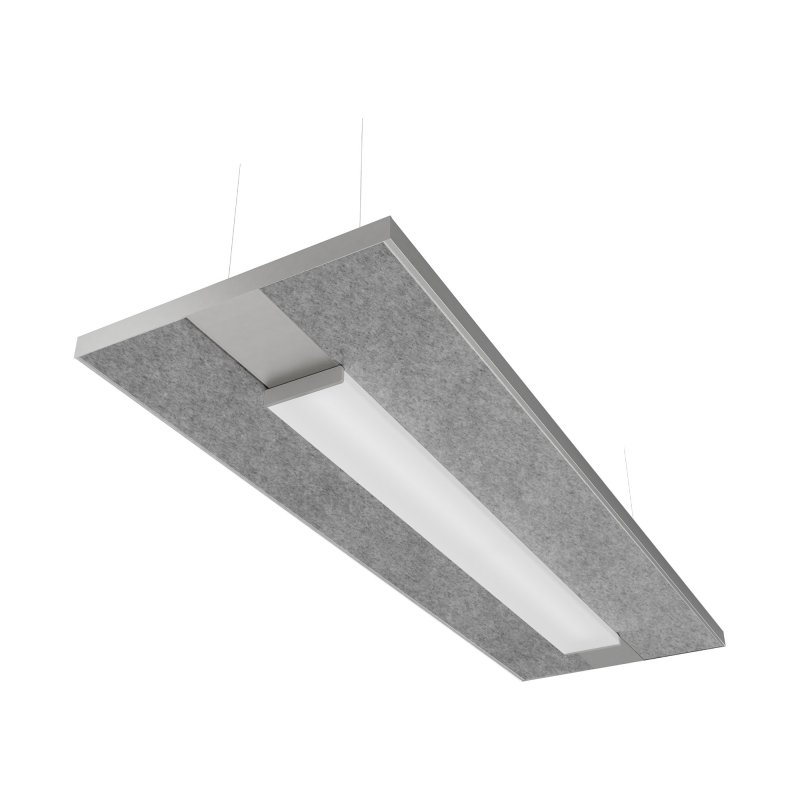

Dimensions Diagram 1
VERSION L W H KG KG(EM)
1800mm Flush Diff 1800 770 79 15.6 16.1
1800mm Drop Diff 1800 770 119 17.9 18.4
2400mm Flush Diff 2400 770 79 20.8 21.3
2400mm Drop Diff 2400 770 119 24.6 25.1
300mm Infill 300 770 79 3.2
600mm Infill 600 770 79 5.8
900mm Infill 900 770 79 8.1
1200mm Infill 1200 770 79 10.5
1500mm Infill 1500 770 79 12.9

Photometric Performance

Photometric Performance Diagram - Flush Optic
Flush Optic
LOR = 100%
Photometric Performance Diagram - Drop Optic
Drop Optic
LOR = 100%

LED Performance

Colour Temp RA (CRI) Colour consistency
4000K Ra80 MacAdam 3 SDCM
4000K Ra90 MacAdam 3 SDCM
3000K Ra80 MacAdam 3 SDCM
3000K Ra90 MacAdam 3 SDCM

Integrated direct/indirect lighting and acoustics solution for suspended mounting. Dropped/Flush Diffuser for optimised visual comfort and performance. With specialist acoustic material complete with pre & post consumer recycled content. Continuous rows can be formed using separately supplied accessories: suspension kits, infills, row starters and end caps (to be ordered separately). Includes 2 additional wiring channels to enable other services to be integrated into the system. As Whitecroft Lighting FOIL

Product Downloads

Single download

Add to ZIP

PDF Foil Datasheet
PDF Foil Acoustic Data
PDF Foil Part Code Logic
PDF Foil Brochure - Workplace
PDF Foil Brochure - Education
ZIP Foil ldt Files
ZIP Foil ULD Files
ZIP Foil IES Files
PDF Foil Installation Leaflet
ZIP Foil - Revit Files
Back to top

Related Products

Foil Radiant
Foil Radiant

©2024 Whitecroft Lighting | Company number 3848973
