Kolo IP65

Kolo IP65

Kolo IP65 with Grill

Kolo IP65 with Grill

Kolo IP65 with IP65 Trim Ring

Kolo IP65 with IP65 Trim Ring

Explore our product range

Kolo IP65
Kolo IP65 with Grill
Kolo IP65 with IP65 Trim Ring

Overview

Kolo brings style and efficiency to any application. With a host of optional attachments and variants to add visual interest, Kolo is the optimum lighting solution.

Optics

Polycarbonate opal diffuser

  • 4000K LED as standard
  • 3000K LED also available

Light output options:

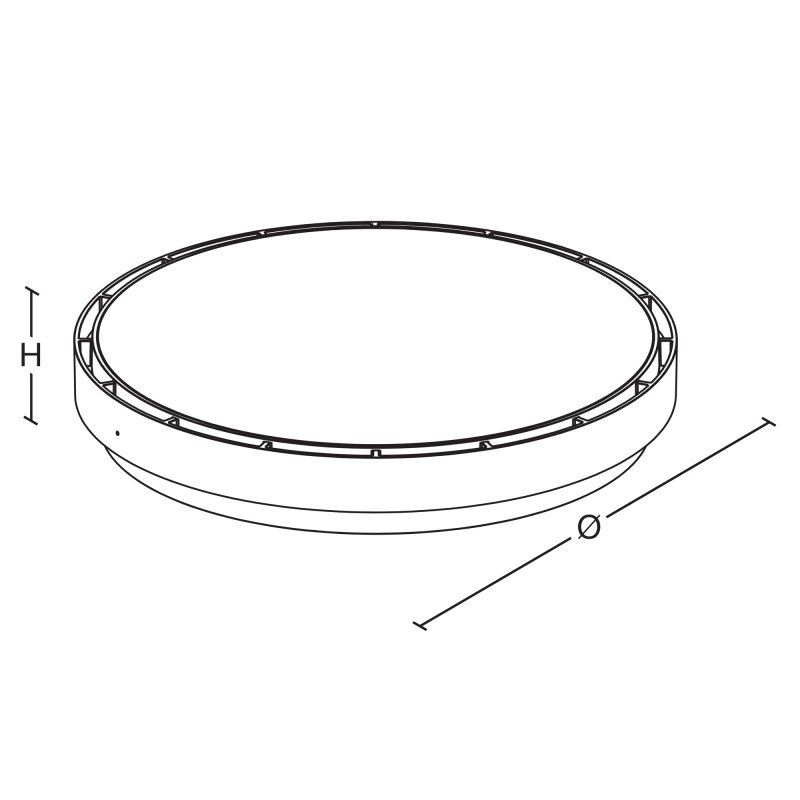

300mm ø

  • 800 lumen (nom), 6.3W
  • 1100 lumen (nom), 8.8W

400mm ø

  • 1700 lumen (nom), 13.7W
  • 2300 lumen (nom), 18.5W
  • 2700 lumen (nom), 21.3W
  • 3500 lumen (nom), 27.7W

Emergency Output (BLF):

  • 300mm - 240 Lumens
  • 400mm - 400 Lumens

For specific product variant information, including lifetime, efficacy, power, output and electrical data, please click on the individual part number under 'Order Codes' and view the datasheet

Body

  • Surface mounted
  • 300mm or 400mm diameter in die-cast aluminium with injection moulded base
  • IP65
  • Finished in silver or black, all sizes
  • White finish option for 400mm diameter only
  • Choice of integrated emergency options:
    • 3 hour emergency
    • COMEPS
  • Emergency variants supplied with Lithium Iron Phosphate (LiFePO4) batteries
  • Plastic toggle clip lock mechanism
  • Optional trim ring or grill front attachment available for alternative aesthetic
  • Optional Command 5 microwave detector (400mm diameter versions only) mounted behind the diffuser, which can be set to one of two configurations;
    • Microwave presence detection with ON/OFF operation
    • Microwave presence detection with High/Low/Off set-back functionality. Can be set to switch from 100% down to set-back position of 50%, 30%, 20%, 10% or OFF
  • Product also available in IP44 surface, suspended and anti-ligature

Click on part code below for downloads

Part Code Description Output (lm) Power (W) Colour Temperature Product Colour Driver Type Emergency Type Integral Controls Accessory
K6H3124KB 300mm Diameter 1136 9 4000K, Ra80 Black Fixed Output N/A N/A N
K6H3124KBLEM 300mm Diameter 1136 9 4000K, Ra80 Black Fixed Output 3 hr EM LiFeP04 N/A N
K6H3124KBLEP 300mm Diameter 1136 9 4000K, Ra80 Black Fixed Output 3 hr EP LiFeP04 N/A N
K6H3124KS 300mm Diameter 1136 9 4000K, Ra80 Silver Fixed Output N/A N/A N
K6H3124KSLEM 300mm Diameter 1136 9 4000K, Ra80 Silver Fixed Output 3 hr EM LiFeP04 N/A N
K6H3124KSLEP 300mm Diameter 1136 9 4000K, Ra80 Silver Fixed Output 3 hr EP LiFeP04 N/A N
K6H364KB 300mm Diameter 806 6 4000K, Ra80 Black Fixed Output N/A N/A N
K6H364KBLEM 300mm Diameter 806 6 4000K, Ra80 Black Fixed Output 3 hr EM LiFeP04 N/A N
K6H364KBLEP 300mm Diameter 806 6 4000K, Ra80 Black Fixed Output 3 hr EP LiFeP04 N/A N
K6H364KS 300mm Diameter 806 6 4000K, Ra80 Silver Fixed Output N/A N/A N
K6H364KSLEM 300mm Diameter 806 6 4000K, Ra80 Silver Fixed Output 3 hr EM LiFeP04 N/A N
K6H364KSLEP 300mm Diameter 806 6 4000K, Ra80 Silver Fixed Output 3 hr EP LiFeP04 N/A N
K6Y3124KB 300mm Diameter 1136 9 4000K, Ra80 Black DALI LED Driver N/A N/A N
K6Y3124KBLEM 300mm Diameter 1136 9 4000K, Ra80 Black DALI LED Driver 3 hr EM LiFeP04 N/A N
K6Y3124KBLEP 300mm Diameter 1136 9 4000K, Ra80 Black DALI LED Driver 3 hr EP LiFeP04 N/A N
K6Y3124KS 300mm Diameter 1136 9 4000K, Ra80 Silver DALI LED Driver N/A N/A N
K6Y3124KSLEM 300mm Diameter 1136 9 4000K, Ra80 Silver DALI LED Driver 3 hr EM LiFeP04 N/A N
K6Y3124KSLEP 300mm Diameter 1136 9 4000K, Ra80 Silver DALI LED Driver 3 hr EP LiFeP04 N/A N
K6Y364KB 300mm Diameter 806 6 4000K, Ra80 Black DALI LED Driver N/A N/A N
K6Y364KBLEM 300mm Diameter 806 6 4000K, Ra80 Black DALI LED Driver 3 hr EM LiFeP04 N/A N
K6Y364KBLEP 300mm Diameter 806 6 4000K, Ra80 Black DALI LED Driver 3 hr EP LiFeP04 N/A N
K6Y364KS 300mm Diameter 806 6 4000K, Ra80 Silver DALI LED Driver N/A N/A N
K6Y364KSLEM 300mm Diameter 806 6 4000K, Ra80 Silver DALI LED Driver 3 hr EM LiFeP04 N/A N
K6Y364KSLEP 300mm Diameter 806 6 4000K, Ra80 Silver DALI LED Driver 3 hr EP LiFeP04 N/A N

Click on part code below for downloads

Part Code Description Output (lm) Power (W) Colour Temperature Product Colour Driver Type Emergency Type Integral Controls Accessory
K6H4154KB 400mm Diameter 1755 14 4000K, Ra80 Black Fixed Output N/A N/A N
K6H4154KBLEM 400mm Diameter 1755 14 4000K, Ra80 Black Fixed Output 3 hr EM LiFeP04 N/A N
K6H4154KBLEP 400mm Diameter 1755 14 4000K, Ra80 Black Fixed Output 3 hr EP LiFeP04 N/A N
K6H4154KS 400mm Diameter 1755 14 4000K, Ra80 Silver Fixed Output N/A N/A N
K6H4154KSLEM 400mm Diameter 1755 14 4000K, Ra80 Silver Fixed Output 3 hr EM LiFeP04 N/A N
K6H4154KSLEP 400mm Diameter 1755 14 4000K, Ra80 Silver Fixed Output 3 hr EP LiFeP04 N/A N
K6H4154KW 400mm Diameter 1755 14 4000K, Ra80 White Fixed Output N/A N/A N
K6H4154KWLEM 400mm Diameter 1755 14 4000K, Ra80 White Fixed Output 3 hr EM LiFeP04 N/A N
K6H4154KWLEP 400mm Diameter 1755 14 4000K, Ra80 White Fixed Output 3 hr EP LiFeP04 N/A N
K6H4204KB 400mm Diameter 2359 19 4000K, Ra80 Black Fixed Output N/A N/A N
K6H4204KBLEM 400mm Diameter 2359 19 4000K, Ra80 Black Fixed Output 3 hr EM LiFeP04 N/A N
K6H4204KBLEP 400mm Diameter 2359 19 4000K, Ra80 Black Fixed Output 3 hr EP LiFeP04 N/A N
K6H4204KS 400mm Diameter 2359 19 4000K, Ra80 Silver Fixed Output N/A N/A N
K6H4204KSLEM 400mm Diameter 2359 19 4000K, Ra80 Silver Fixed Output 3 hr EM LiFeP04 N/A N
K6H4204KSLEP 400mm Diameter 2359 19 4000K, Ra80 Silver Fixed Output 3 hr EP LiFeP04 N/A N
K6H4204KW 400mm Diameter 2359 19 4000K, Ra80 White Fixed Output N/A N/A N
K6H4204KWLEM 400mm Diameter 2359 19 4000K, Ra80 White Fixed Output 3 hr EM LiFeP04 N/A N
K6H4204KWLEP 400mm Diameter 2359 19 4000K, Ra80 White Fixed Output 3 hr EP LiFeP04 N/A N
K6H4274KB 400mm Diameter 2790 21 4000K, Ra80 Black Fixed Output N/A N/A N
K6H4274KBLEM 400mm Diameter 2790 21 4000K, Ra80 Black Fixed Output 3 hr EM LiFeP04 N/A N
K6H4274KBLEP 400mm Diameter 2790 21 4000K, Ra80 Black Fixed Output 3 hr EP LiFeP04 N/A N
K6H4274KS 400mm Diameter 2790 21 4000K, Ra80 Silver Fixed Output N/A N/A N
K6H4274KSLEM 400mm Diameter 2790 21 4000K, Ra80 Silver Fixed Output 3 hr EM LiFeP04 N/A N
K6H4274KSLEP 400mm Diameter 2790 21 4000K, Ra80 Silver Fixed Output 3 hr EP LiFeP04 N/A N
K6H4274KW 400mm Diameter 2790 21 4000K, Ra80 White Fixed Output N/A N/A N
K6H4274KWLEM 400mm Diameter 2790 21 4000K, Ra80 White Fixed Output 3 hr EM LiFeP04 N/A N
K6H4274KWLEP 400mm Diameter 2790 21 4000K, Ra80 White Fixed Output 3 hr EP LiFeP04 N/A N
K6H4354KB 400mm Diameter 3549 28 4000K, Ra80 Black Fixed Output N/A N/A N
K6H4354KBLEM 400mm Diameter 3549 28 4000K, Ra80 Black Fixed Output 3 hr EM LiFeP04 N/A N
K6H4354KBLEP 400mm Diameter 3549 28 4000K, Ra80 Black Fixed Output 3 hr EP LiFeP04 N/A N
K6H4354KS 400mm Diameter 3549 28 4000K, Ra80 Silver Fixed Output N/A N/A N
K6H4354KSLEM 400mm Diameter 3549 28 4000K, Ra80 Silver Fixed Output 3 hr EM LiFeP04 N/A N
K6H4354KSLEP 400mm Diameter 3549 28 4000K, Ra80 Silver Fixed Output 3 hr EP LiFeP04 N/A N
K6H4354KW 400mm Diameter 3549 28 4000K, Ra80 White Fixed Output N/A N/A N
K6H4354KWLEM 400mm Diameter 3549 28 4000K, Ra80 White Fixed Output 3 hr EM LiFeP04 N/A N
K6H4354KWLEP 400mm Diameter 3549 28 4000K, Ra80 White Fixed Output 3 hr EP LiFeP04 N/A N
K6Q54154KB 400mm Diameter 1755 14 4000K, Ra80 Black Fixed Output N/A COM5 (WITH SETBACK) N
K6Q54154KBLEM 400mm Diameter 1755 14 4000K, Ra80 Black Fixed Output 3 hr EM LiFeP04 COM5 (WITH SETBACK) N
K6Q54154KBLEP 400mm Diameter 1755 14 4000K, Ra80 Black Fixed Output 3 hr EP LiFeP04 COM5 (WITH SETBACK) N
K6Q54154KS 400mm Diameter 1755 14 4000K, Ra80 Silver Fixed Output N/A COM5 (WITH SETBACK) N
K6Q54154KSLEM 400mm Diameter 1755 14 4000K, Ra80 Silver Fixed Output 3 hr EM LiFeP04 COM5 (WITH SETBACK) N
K6Q54154KSLEP 400mm Diameter 1755 14 4000K, Ra80 Silver Fixed Output 3 hr EP LiFeP04 COM5 (WITH SETBACK) N
K6Q54154KW 400mm Diameter 1755 14 4000K, Ra80 White Fixed Output N/A COM5 (WITH SETBACK) N
K6Q54154KWLEM 400mm Diameter 1755 14 4000K, Ra80 White Fixed Output 3 hr EM LiFeP04 COM5 (WITH SETBACK) N
K6Q54154KWLEP 400mm Diameter 1755 14 4000K, Ra80 White Fixed Output 3 hr EP LiFeP04 COM5 (WITH SETBACK) N
K6Q54204KB 400mm Diameter 2359 19 4000K, Ra80 Black Fixed Output N/A COM5 (WITH SETBACK) N
K6Q54204KBLEM 400mm Diameter 2359 19 4000K, Ra80 Black Fixed Output 3 hr EM LiFeP04 COM5 (WITH SETBACK) N
K6Q54204KBLEP 400mm Diameter 2359 19 4000K, Ra80 Black Fixed Output 3 hr EP LiFeP04 COM5 (WITH SETBACK) N
K6Q54204KS 400mm Diameter 2359 19 4000K, Ra80 Silver Fixed Output N/A COM5 (WITH SETBACK) N
K6Q54204KSLEM 400mm Diameter 2359 19 4000K, Ra80 Silver Fixed Output 3 hr EM LiFeP04 COM5 (WITH SETBACK) N
K6Q54204KSLEP 400mm Diameter 2359 19 4000K, Ra80 Silver Fixed Output 3 hr EP LiFeP04 COM5 (WITH SETBACK) N
K6Q54204KW 400mm Diameter 2359 19 4000K, Ra80 White Fixed Output N/A COM5 (WITH SETBACK) N
K6Q54204KWLEM 400mm Diameter 2359 19 4000K, Ra80 White Fixed Output 3 hr EM LiFeP04 COM5 (WITH SETBACK) N
K6Q54204KWLEP 400mm Diameter 2359 19 4000K, Ra80 White Fixed Output 3 hr EP LiFeP04 COM5 (WITH SETBACK) N
K6Q54274KB 400mm Diameter 2790 21 4000K, Ra80 Black Fixed Output N/A COM5 (WITH SETBACK) N
K6Q54274KBLEM 400mm Diameter 2790 21 4000K, Ra80 Black Fixed Output 3 hr EM LiFeP04 COM5 (WITH SETBACK) N
K6Q54274KBLEP 400mm Diameter 2790 21 4000K, Ra80 Black Fixed Output 3 hr EP LiFeP04 COM5 (WITH SETBACK) N
K6Q54274KS 400mm Diameter 2790 21 4000K, Ra80 Silver Fixed Output N/A COM5 (WITH SETBACK) N
K6Q54274KSLEM 400mm Diameter 2790 21 4000K, Ra80 Silver Fixed Output 3 hr EM LiFeP04 COM5 (WITH SETBACK) N
K6Q54274KSLEP 400mm Diameter 2790 21 4000K, Ra80 Silver Fixed Output 3 hr EP LiFeP04 COM5 (WITH SETBACK) N
K6Q54274KW 400mm Diameter 2790 21 4000K, Ra80 White Fixed Output N/A COM5 (WITH SETBACK) N
K6Q54274KWLEM 400mm Diameter 2790 21 4000K, Ra80 White Fixed Output 3 hr EM LiFeP04 COM5 (WITH SETBACK) N
K6Q54274KWLEP 400mm Diameter 2790 21 4000K, Ra80 White Fixed Output 3 hr EP LiFeP04 COM5 (WITH SETBACK) N
K6Q54354KB 400mm Diameter 3549 28 4000K, Ra80 Black Fixed Output N/A COM5 (WITH SETBACK) N
K6Q54354KBLEM 400mm Diameter 3549 28 4000K, Ra80 Black Fixed Output 3 hr EM LiFeP04 COM5 (WITH SETBACK) N
K6Q54354KBLEP 400mm Diameter 3549 28 4000K, Ra80 Black Fixed Output 3 hr EP LiFeP04 COM5 (WITH SETBACK) N
K6Q54354KS 400mm Diameter 3549 28 4000K, Ra80 Silver Fixed Output N/A COM5 (WITH SETBACK) N
K6Q54354KSLEM 400mm Diameter 3549 28 4000K, Ra80 Silver Fixed Output 3 hr EM LiFeP04 COM5 (WITH SETBACK) N
K6Q54354KSLEP 400mm Diameter 3549 28 4000K, Ra80 Silver Fixed Output 3 hr EP LiFeP04 COM5 (WITH SETBACK) N
K6Q54354KW 400mm Diameter 3549 28 4000K, Ra80 White Fixed Output N/A COM5 (WITH SETBACK) N
K6Q54354KWLEM 400mm Diameter 3549 28 4000K, Ra80 White Fixed Output 3 hr EM LiFeP04 COM5 (WITH SETBACK) N
K6Q54354KWLEP 400mm Diameter 3549 28 4000K, Ra80 White Fixed Output 3 hr EP LiFeP04 COM5 (WITH SETBACK) N
K6Y4154KB 400mm Diameter 1755 14 4000K, Ra80 Black DALI LED Driver N/A N/A N
K6Y4154KBLEM 400mm Diameter 1755 14 4000K, Ra80 Black DALI LED Driver 3 hr EM LiFeP04 N/A N
K6Y4154KBLEP 400mm Diameter 1755 14 4000K, Ra80 Black DALI LED Driver 3 hr EP LiFeP04 N/A N
K6Y4154KS 400mm Diameter 1755 14 4000K, Ra80 Silver DALI LED Driver N/A N/A N
K6Y4154KSLEM 400mm Diameter 1755 14 4000K, Ra80 Silver DALI LED Driver 3 hr EM LiFeP04 N/A N
K6Y4154KSLEP 400mm Diameter 1755 14 4000K, Ra80 Silver DALI LED Driver 3 hr EP LiFeP04 N/A N
K6Y4154KW 400mm Diameter 1755 14 4000K, Ra80 White DALI LED Driver N/A N/A N
K6Y4154KWLEM 400mm Diameter 1755 14 4000K, Ra80 White DALI LED Driver 3 hr EM LiFeP04 N/A N
K6Y4154KWLEP 400mm Diameter 1755 14 4000K, Ra80 White DALI LED Driver 3 hr EP LiFeP04 N/A N
K6Y4204KB 400mm Diameter 2359 19 4000K, Ra80 Black DALI LED Driver N/A N/A N
K6Y4204KBLEM 400mm Diameter 2359 19 4000K, Ra80 Black DALI LED Driver 3 hr EM LiFeP04 N/A N
K6Y4204KBLEP 400mm Diameter 2359 19 4000K, Ra80 Black DALI LED Driver 3 hr EP LiFeP04 N/A N
K6Y4204KS 400mm Diameter 2359 19 4000K, Ra80 Silver DALI LED Driver N/A N/A N
K6Y4204KSLEM 400mm Diameter 2359 19 4000K, Ra80 Silver DALI LED Driver 3 hr EM LiFeP04 N/A N
K6Y4204KSLEP 400mm Diameter 2359 19 4000K, Ra80 Silver DALI LED Driver 3 hr EP LiFeP04 N/A N
K6Y4204KW 400mm Diameter 2359 19 4000K, Ra80 White DALI LED Driver N/A N/A N
K6Y4204KWLEM 400mm Diameter 2359 19 4000K, Ra80 White DALI LED Driver 3 hr EM LiFeP04 N/A N
K6Y4204KWLEP 400mm Diameter 2359 19 4000K, Ra80 White DALI LED Driver 3 hr EP LiFeP04 N/A N
K6Y4274KB 400mm Diameter 2790 21 4000K, Ra80 Black DALI LED Driver N/A N/A N
K6Y4274KBLEM 400mm Diameter 2790 21 4000K, Ra80 Black DALI LED Driver 3 hr EM LiFeP04 N/A N
K6Y4274KBLEP 400mm Diameter 2790 21 4000K, Ra80 Black DALI LED Driver 3 hr EP LiFeP04 N/A N
K6Y4274KS 400mm Diameter 2790 21 4000K, Ra80 Silver DALI LED Driver N/A N/A N
K6Y4274KSLEM 400mm Diameter 2790 21 4000K, Ra80 Silver DALI LED Driver 3 hr EM LiFeP04 N/A N
K6Y4274KSLEP 400mm Diameter 2790 21 4000K, Ra80 Silver DALI LED Driver 3 hr EP LiFeP04 N/A N
K6Y4274KW 400mm Diameter 2790 21 4000K, Ra80 White DALI LED Driver N/A N/A N
K6Y4274KWLEM 400mm Diameter 2790 21 4000K, Ra80 White DALI LED Driver 3 hr EM LiFeP04 N/A N
K6Y4274KWLEP 400mm Diameter 2790 21 4000K, Ra80 White DALI LED Driver 3 hr EP LiFeP04 N/A N
K6Y4354KB 400mm Diameter 3549 28 4000K, Ra80 Black DALI LED Driver N/A N/A N
K6Y4354KBLEM 400mm Diameter 3549 28 4000K, Ra80 Black DALI LED Driver 3 hr EM LiFeP04 N/A N
K6Y4354KBLEP 400mm Diameter 3549 28 4000K, Ra80 Black DALI LED Driver 3 hr EP LiFeP04 N/A N
K6Y4354KS 400mm Diameter 3549 28 4000K, Ra80 Silver DALI LED Driver N/A N/A N
K6Y4354KSLEM 400mm Diameter 3549 28 4000K, Ra80 Silver DALI LED Driver 3 hr EM LiFeP04 N/A N
K6Y4354KSLEP 400mm Diameter 3549 28 4000K, Ra80 Silver DALI LED Driver 3 hr EP LiFeP04 N/A N
K6Y4354KW 400mm Diameter 3549 28 4000K, Ra80 White DALI LED Driver N/A N/A N
K6Y4354KWLEM 400mm Diameter 3549 28 4000K, Ra80 White DALI LED Driver 3 hr EM LiFeP04 N/A N
K6Y4354KWLEP 400mm Diameter 3549 28 4000K, Ra80 White DALI LED Driver 3 hr EP LiFeP04 N/A N

Click on part code below for downloads

Part Code Description Output (lm) Power (W) Colour Temperature Product Colour Driver Type Emergency Type Integral Controls Accessory
K6ATR3S Accessory N/A N/A Silver N/A Y
K6AGR3S Accessory N/A N/A Silver N/A Y
K6ATR4S Accessory N/A N/A Silver N/A Y
K6AGR4S Accessory N/A N/A Silver N/A Y
K6ATR3B Accessory N/A N/A Black N/A Y
K6AGR3B Accessory N/A N/A Black N/A Y
K6ATR4B Accessory N/A N/A Black N/A Y
K6AGR4B Accessory N/A N/A Black N/A Y
K6ATR4W Accessory N/A N/A White N/A Y
Dimensions Diagram 1
VERSION H KG KG(EM) Ø
300mm surface 95 2.1 2.5 300
400mm surface 95 3.5 3.9 400

Photometric Performance

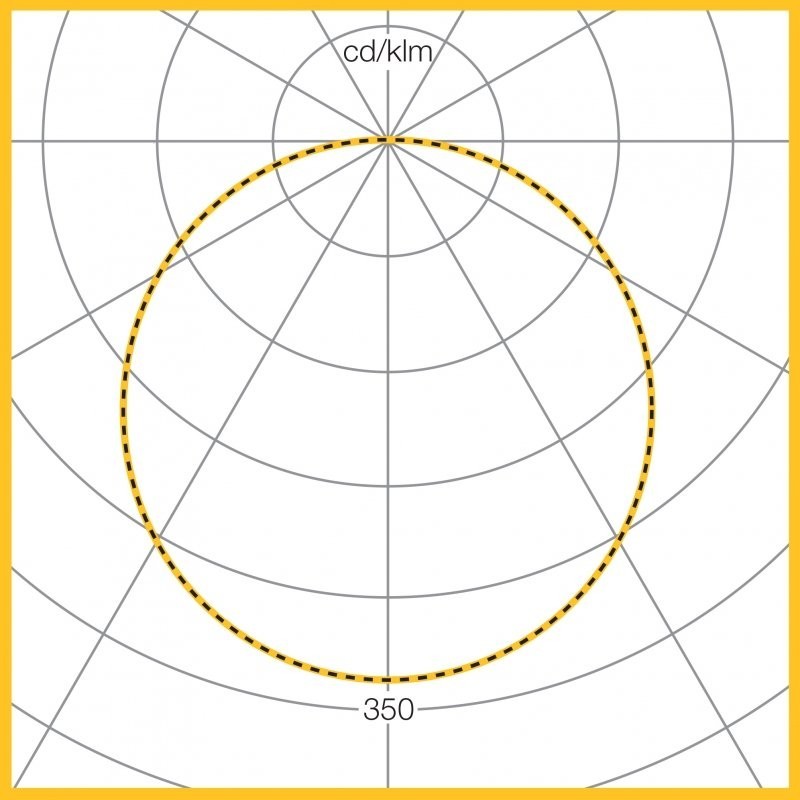

Photometric Performance Diagram - Kolo IP65 300mm
Kolo IP65 300mm
LOR = 100.00%

LED Performance

Colour Temp RA (CRI) Colour consistency
4000K >80 MacAdam 3 SDCM

Surface mounted circular IP65 LED bulkhead luminaire in 300 or 400mm diameter. Polycarbonate opal diffuser. Trim ring and grill front attachments available. Optional integrated microwave presence detector with ON/OFF or set-back functionality - as Whitecroft Lighting KOLO IP65

Product Downloads

Single download

Add to ZIP

Back to top
