Nightingale M3

Nightingale M3 Emergency

Explore our product range

Overview

Nightingale M3 is a new generation of specialist recessed downlighter for Healthcare applications. Constructed from a number of components common with the Mirage M3 family, creating a consistent family visual.

Nightingale is a sustainable solution with ease of disassembly and simple light engine upgradability when required in the future. Maximum patient comfort and well being is achieved using a specially designed twin blade louvre and internal baffle using additive manufacturing methods. This creates a blend of technologies using the local supply chain and minimising potential waste.

Optics

Light Output:
- 4000K - 1107 lumens, 15.5W
- 4000K - 1617 lumens, 24.4W
- 3000K - 1014 lumens, 15.5W
- 3000K - 1488 lumens, 24.4W
Emergency Output: 285 Lumens
Ra90 colour rendition for best practice in healthcare activities
4000 and 3000K colour temperatures
Specular reflector delivering optimum control of lighting distribution
Twin blade technical louvre providing full glare control at the bedhead and uniform lighting in circulation spaces
Internal black baffle eliminates reflected image of the light source

Body

Full disassembly possible for future upgrades
Injection moulded polycarbonate body
Narrow white bezel, colour RAL9003
Factory fitted IP65 clear diffuser
Tp(a) rated diffuser material
Discrete emergency LED indicator
Emergency variants supplied with Lithium Iron Phosphate (LiFePO4) battery technology; featuring extended design life reducing replacement frequency to lower total cost of ownership, and advancing sustainability through support for end of life recycling
Compatible with the Mirage 3 Retrofit kit to suit existing apertures for project upgrades
Simply switched by the user between ‘Day’ and ‘Night’ settings using DALI controls.
The ‘Day’ position delivers 100% light output for general area circulation lighting and the ‘Night’ position will provide the 5 lux required for night-time circulation
To be used in conjunction with DALI or Air Control connected solutions (power supply and wall switch). Contact Whitecroft Technical for full details. Onsite commissioning is required
Retrofit versions with analogue control gear for previously supplied projects can be supplied on request

Enquire about this product

Family Datasheet

Product Downloads

4000K Number of Parts 6

Click on part code below for downloads

Part Code	Colour Temperature	Output (lm)	Power (W)	Emergency Type	Driver Type	Length / Diameter (mm)	IP Rating	Product Colour	Mounting
NGY24K	4000K, Ra90	1107	15.5	N/A	DALI LED Driver	173	IP65	White	Recessed	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1107},{"Name":"Circuit Watts","Value":15.5},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":71.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra90"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"nightingale-m3-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"nightingale-m3-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"nightingale-m3-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"NGY24K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"NGY24K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"NGY24K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"nightingale-m3-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"nightingale-m3-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"nightingale-m3-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"nightingale-m3-REVIT.zip"}}
NGY24KEM	4000K, Ra90	1107	15.5	3hr Maint	DALI LED Driver	173	IP65	White	Recessed	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":190},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1107},{"Name":"Circuit Watts","Value":15.5},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":71.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra90"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"nightingale-m3-em-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"nightingale-m3-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"nightingale-m3-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"NGY24K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"NGY24K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"NGY24K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"nightingale-m3-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"nightingale-m3-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"nightingale-m3-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"nightingale-m3-REVIT.zip"}}
NGY24KEP	4000K, Ra90	1107	15.5	COMEPS	DALI LED Driver	173	IP65	White	Recessed	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":190},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1107},{"Name":"Circuit Watts","Value":15.5},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":71.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra90"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"nightingale-m3-em-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"nightingale-m3-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"nightingale-m3-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"NGY24K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"NGY24K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"NGY24K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"nightingale-m3-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"nightingale-m3-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"nightingale-m3-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"nightingale-m3-REVIT.zip"}}
NGY34K	4000K, Ra90	1617	24.4	N/A	DALI LED Driver	173	IP65	White	Recessed	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1617},{"Name":"Circuit Watts","Value":24.39999999999999857891452847979962825775146484375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":66.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra90"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"nightingale-m3-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"nightingale-m3-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"nightingale-m3-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"NGY34K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"NGY34K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"NGY34K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"nightingale-m3-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"nightingale-m3-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"nightingale-m3-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"nightingale-m3-REVIT.zip"}}
NGY34KEM	4000K, Ra90	1617	24.4	3hr Maint	DALI LED Driver	173	IP65	White	Recessed	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":190},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1617},{"Name":"Circuit Watts","Value":24.39999999999999857891452847979962825775146484375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":66.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra90"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"nightingale-m3-em-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"nightingale-m3-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"nightingale-m3-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"NGY34K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"NGY34K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"NGY34K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"nightingale-m3-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"nightingale-m3-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"nightingale-m3-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"nightingale-m3-REVIT.zip"}}
NGY34KEP	4000K, Ra90	1617	24.4	COMEPS	DALI LED Driver	173	IP65	White	Recessed	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":190},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1617},{"Name":"Circuit Watts","Value":24.39999999999999857891452847979962825775146484375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":66.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra90"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"nightingale-m3-em-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"nightingale-m3-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"nightingale-m3-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"NGY34K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"NGY34K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"NGY34K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"nightingale-m3-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"nightingale-m3-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"nightingale-m3-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"nightingale-m3-REVIT.zip"}}

3000K Number of Parts 6

Click on part code below for downloads

Part Code	Colour Temperature	Output (lm)	Power (W)	Emergency Type	Driver Type	Length / Diameter (mm)	IP Rating	Product Colour	Mounting
NGY23K	3000K, RA90	1014	15.5	N/A	DALI LED Driver	173	IP65	White	Recessed	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1014},{"Name":"Circuit Watts","Value":15.5},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":65.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA90"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"nightingale-m3-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"nightingale-m3-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"nightingale-m3-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"NGY23K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"NGY23K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"NGY23K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"nightingale-m3-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"nightingale-m3-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"nightingale-m3-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"nightingale-m3-REVIT.zip"}}
NGY23KEM	3000K, RA90	1014	15.5	3hr Maint	DALI LED Driver	173	IP65	White	Recessed	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":190},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1014},{"Name":"Circuit Watts","Value":15.5},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":65.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA90"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"nightingale-m3-em-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"nightingale-m3-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"nightingale-m3-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"NGY23K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"NGY23K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"NGY23K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"nightingale-m3-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"nightingale-m3-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"nightingale-m3-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"nightingale-m3-REVIT.zip"}}
NGY23KEP	3000K, RA90	1014	15.5	COMEPS	DALI LED Driver	173	IP65	White	Recessed	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":190},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1014},{"Name":"Circuit Watts","Value":15.5},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":65.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA90"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"nightingale-m3-em-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"nightingale-m3-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"nightingale-m3-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"NGY23K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"NGY23K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"NGY23K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"nightingale-m3-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"nightingale-m3-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"nightingale-m3-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"nightingale-m3-REVIT.zip"}}
NGY33K	3000K, RA90	1488	24.4	N/A	DALI LED Driver	173	IP65	White	Recessed	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1488},{"Name":"Circuit Watts","Value":24.39999999999999857891452847979962825775146484375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":61},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA90"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"nightingale-m3-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"nightingale-m3-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"nightingale-m3-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"NGY33K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"NGY33K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"NGY33K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"nightingale-m3-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"nightingale-m3-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"nightingale-m3-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"nightingale-m3-REVIT.zip"}}
NGY33KEM	3000K, RA90	1488	24.4	3hr Maint	DALI LED Driver	173	IP65	White	Recessed	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":190},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1488},{"Name":"Circuit Watts","Value":24.39999999999999857891452847979962825775146484375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":61},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA90"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"nightingale-m3-em-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"nightingale-m3-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"nightingale-m3-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"NGY33K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"NGY33K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"NGY33K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"nightingale-m3-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"nightingale-m3-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"nightingale-m3-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"nightingale-m3-REVIT.zip"}}
NGY33KEP	3000K, RA90	1488	24.4	COMEPS	DALI LED Driver	173	IP65	White	Recessed	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":190},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1488},{"Name":"Circuit Watts","Value":24.39999999999999857891452847979962825775146484375},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":61},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA90"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"White"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"nightingale-m3-em-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"nightingale-m3-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"nightingale-m3-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"NGY33K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"NGY33K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"NGY33K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"nightingale-m3-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"nightingale-m3-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"nightingale-m3-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"nightingale-m3-REVIT.zip"}}

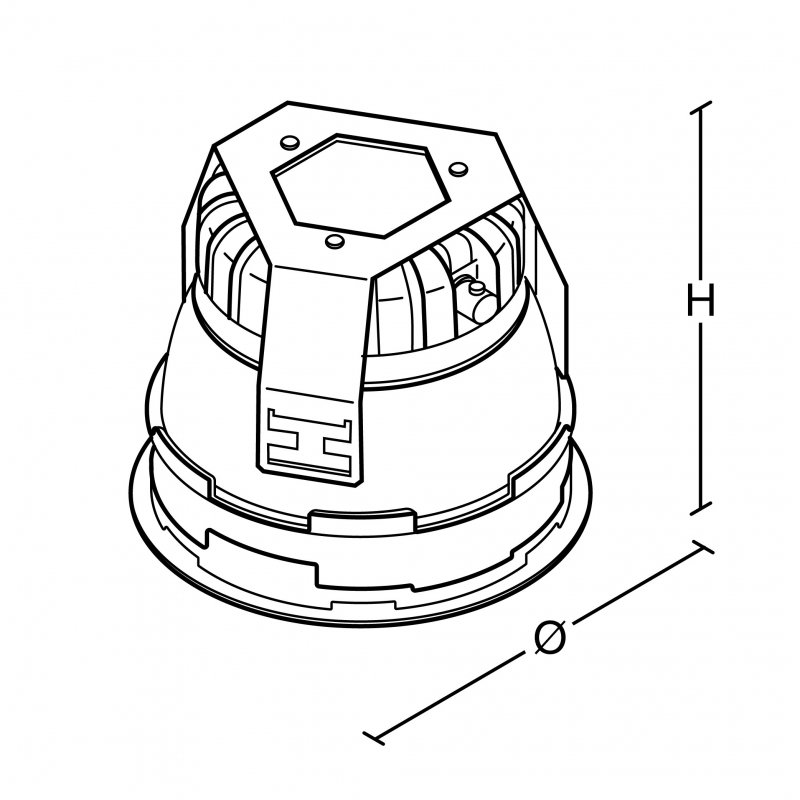

VERSION	H	KG	KG(EM)	Ø	CAØ
Nightingale M3	145	1.0	2.0	173	165

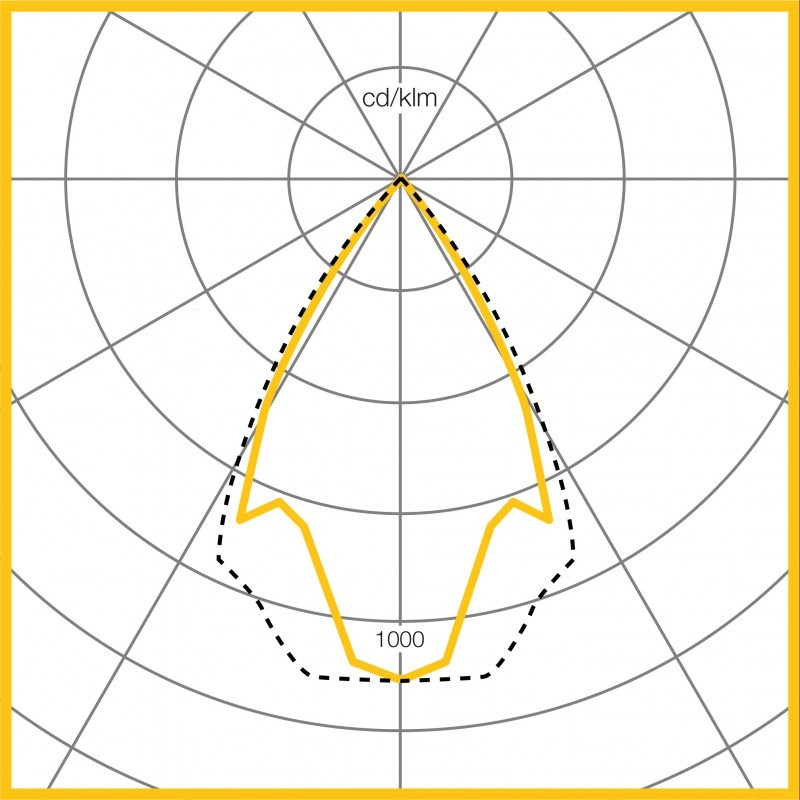

Photometric Performance

Nightingale M3

LOR = 100%

LED Performance

Colour Temp	RA (CRI)	Life expectancy	Colour consistency
4000K	90	100,000hrs	MacAdam 4 SDCM
3000K	90	100,000hrs	MacAdam 3 SDCM

Specialist recessed downlighter for hospital bed area applications. With specular reflector, technical louvre and internal baffle to achieve optimum cut-off angle, limiting illuminance at the bedhead for maximum patient comfort. The Ra90 LEDs produce high quality colour rendition for best practice during healthcare activities. Supplied with fitted clear IP65, Tp(a) rated polycarbonate diffuser for ease of cleaning. DALI driver to enable simple lighting control which can be offered from the Whitecroft range - as Whitecroft Lighting NIGHTINGALE M3
