Overview

Horizon 360 brings a flawless, clean design to any application and will compliment any interior.

Optics

  • Nominal output options:
    • 1300 lumens, 12W
    • 1800 lumens, 15W
    • 2300 lumens, 20W
  • Emergency Output:
    • 3000K - 304 lumens
    • 4000K - 330 lumens
  • Polycarbonate convex opal diffuser for optimum light uniformity and no visible spotting of LEDs
  • Available in 3000K or 4000K colour temperatures

For specific product variant information, including lifetime, efficacy, power, output and electrical data, please click on the individual part number under 'Order Codes' and view the datasheet

Body

  • Surface mounted as standard
  • Body finished in textured white
  • RAL Colour: White RAL9003
  • Robust IK10 impact rating
  • IP44 ingress protection
  • Choice of integral emergency options; 3 hour emergency or COMEPS (can be wired as Easytest if required)
  • Also available with 'EW' Routefinder Wireless for addressable emergency testing without the need for a 2 core communication cable
  • Emergency variants supplied with Lithium Iron Phosphate (LiFePO4) battery technology; featuring extended design life reducing replacement frequency to lower total cost of ownership, and advancing sustainability through support for end of life recycling
  • Optional Command 5 microwave detector mounted behind the diffuser available with presence detection. Can be set for simple ON/OFF switching or to switch from 100% down to setback position of 50%, 30%, 20% or 10%




Click on part code below for downloads

Part Code Description Product Colour Output (lm) Power (W) Diameter (mm) Driver Type Emergency Type Optic Integral Controls
HZH13K 3000K White 1304 12 367 Fixed Output N/A Diffuser N/A
HZH13KLEM 3000K White 1304 12 367 Fixed Output 3 hr EM LiFeP04 Diffuser N/A
HZH13KLEP 3000K White 1304 12 367 Fixed Output 3 hr EP LiFeP04 Diffuser N/A
HZH23K 3000K White 1769 16 367 Fixed Output N/A Diffuser N/A
HZH23KLEM 3000K White 1769 16 367 Fixed Output 3 hr EM LiFeP04 Diffuser N/A
HZH23KLEP 3000K White 1769 16 367 Fixed Output 3 hr EP LiFeP04 Diffuser N/A
HZH33K 3000K White 2297 20 367 Fixed Output N/A Diffuser N/A
HZH33KLEM 3000K White 2297 20 367 Fixed Output 3 hr EM LiFeP04 Diffuser N/A
HZH33KLEP 3000K White 2297 20 367 Fixed Output 3 hr EP LiFeP04 Diffuser N/A
HZQ5H13K 3000K White 1304 12 367 Fixed Output N/A Diffuser COM5 (WITH SETBACK)
HZQ5H13KLEM 3000K White 1304 12 367 Fixed Output 3 hr EM LiFeP04 Diffuser COM5 (WITH SETBACK)
HZQ5H13KLEP 3000K White 1304 12 367 Fixed Output 3 hr EP LiFeP04 Diffuser COM5 (WITH SETBACK)
HZQ5H23K 3000K White 1769 16 367 Fixed Output N/A Diffuser COM5 (WITH SETBACK)
HZQ5H23KLEM 3000K White 1769 16 367 Fixed Output 3 hr EM LiFeP04 Diffuser COM5 (WITH SETBACK)
HZQ5H23KLEP 3000K White 1769 16 367 Fixed Output 3 hr EP LiFeP04 Diffuser COM5 (WITH SETBACK)
HZQ5H33K 3000K White 2297 20 367 Fixed Output N/A Diffuser COM5 (WITH SETBACK)
HZQ5H33KLEM 3000K White 2297 20 367 Fixed Output 3 hr EM LiFeP04 Diffuser COM5 (WITH SETBACK)
HZQ5H33KLEP 3000K White 2297 20 367 Fixed Output 3 hr EP LiFeP04 Diffuser COM5 (WITH SETBACK)
HZY13K 3000K White 1304 12 367 DALI LED Driver N/A Diffuser N/A
HZY13KLEM 3000K White 1304 12 367 DALI LED Driver 3 hr EM LiFeP04 Diffuser N/A
HZY13KLEP 3000K White 1304 12 367 DALI LED Driver 3 hr EP LiFeP04 Diffuser N/A
HZY23K 3000K White 1769 16 367 DALI LED Driver N/A Diffuser N/A
HZY23KLEM 3000K White 1769 16 367 DALI LED Driver 3 hr EM LiFeP04 Diffuser N/A
HZY23KLEP 3000K White 1769 16 367 DALI LED Driver 3 hr EP LiFeP04 Diffuser N/A
HZY33K 3000K White 2297 20 367 DALI LED Driver N/A Diffuser N/A
HZY33KLEM 3000K White 2297 20 367 DALI LED Driver 3 hr EM LiFeP04 Diffuser N/A
HZY33KLEP 3000K White 2297 20 367 DALI LED Driver 3 hr EP LiFeP04 Diffuser N/A

Click on part code below for downloads

Part Code Description Product Colour Output (lm) Power (W) Diameter (mm) Driver Type Emergency Type Optic Integral Controls
HZH14K 4000K White 1304 11 367 Fixed Output N/A Diffuser N/A
HZH14KLEM 4000K White 1304 11 367 Fixed Output 3 hr EM LiFeP04 Diffuser N/A
HZH14KLEP 4000K White 1304 11 367 Fixed Output 3 hr EP LiFeP04 Diffuser N/A
HZH24K 4000K White 1769 14 367 Fixed Output N/A Diffuser N/A
HZH24KLEM 4000K White 1769 14 367 Fixed Output 3 hr EM LiFeP04 Diffuser N/A
HZH24KLEP 4000K White 1769 14 367 Fixed Output 3 hr EP LiFeP04 Diffuser N/A
HZH34K 4000K White 2297 18 367 Fixed Output N/A Diffuser N/A
HZH34KLEM 4000K White 2297 18 367 Fixed Output 3 hr EM LiFeP04 Diffuser N/A
HZH34KLEP 4000K White 2297 18 367 Fixed Output 3 hr EP LiFeP04 Diffuser N/A
HZQ5H14K 4000K White 1304 11 367 Fixed Output N/A Diffuser COM5 (WITH SETBACK)
HZQ5H14KLEM 4000K White 1304 11 367 Fixed Output 3 hr EM LiFeP04 Diffuser COM5 (WITH SETBACK)
HZQ5H14KLEP 4000K White 1304 11 367 Fixed Output 3 hr EP LiFeP04 Diffuser COM5 (WITH SETBACK)
HZQ5H24K 4000K White 1769 14 367 Fixed Output N/A Diffuser COM5 (WITH SETBACK)
HZQ5H24KLEM 4000K White 1769 14 367 Fixed Output 3 hr EM LiFeP04 Diffuser COM5 (WITH SETBACK)
HZQ5H24KLEP 4000K White 1769 14 367 Fixed Output 3 hr EP LiFeP04 Diffuser COM5 (WITH SETBACK)
HZQ5H34K 4000K White 2297 18 367 Fixed Output N/A Diffuser COM5 (WITH SETBACK)
HZQ5H34KLEM 4000K White 2297 18 367 Fixed Output 3 hr EM LiFeP04 Diffuser COM5 (WITH SETBACK)
HZQ5H34KLEP 4000K White 2297 18 367 Fixed Output 3 hr EP LiFeP04 Diffuser COM5 (WITH SETBACK)
HZY14K 4000K White 1304 11 367 DALI LED Driver N/A Diffuser N/A
HZY14KLEM 4000K White 1304 11 367 DALI LED Driver 3 hr EM LiFeP04 Diffuser N/A
HZY14KLEP 4000K White 1304 11 367 DALI LED Driver 3 hr EP LiFeP04 Diffuser N/A
HZY24K 4000K White 1769 14 367 DALI LED Driver N/A Diffuser N/A
HZY24KLEM 4000K White 1769 14 367 DALI LED Driver 3 hr EM LiFeP04 Diffuser N/A
HZY24KLEP 4000K White 1769 14 367 DALI LED Driver 3 hr EP LiFeP04 Diffuser N/A
HZY34K 4000K White 2297 18 367 DALI LED Driver N/A Diffuser N/A
HZY34KLEM 4000K White 2297 18 367 DALI LED Driver 3 hr EM LiFeP04 Diffuser N/A
HZY34KLEP 4000K White 2297 18 367 DALI LED Driver 3 hr EP LiFeP04 Diffuser N/A

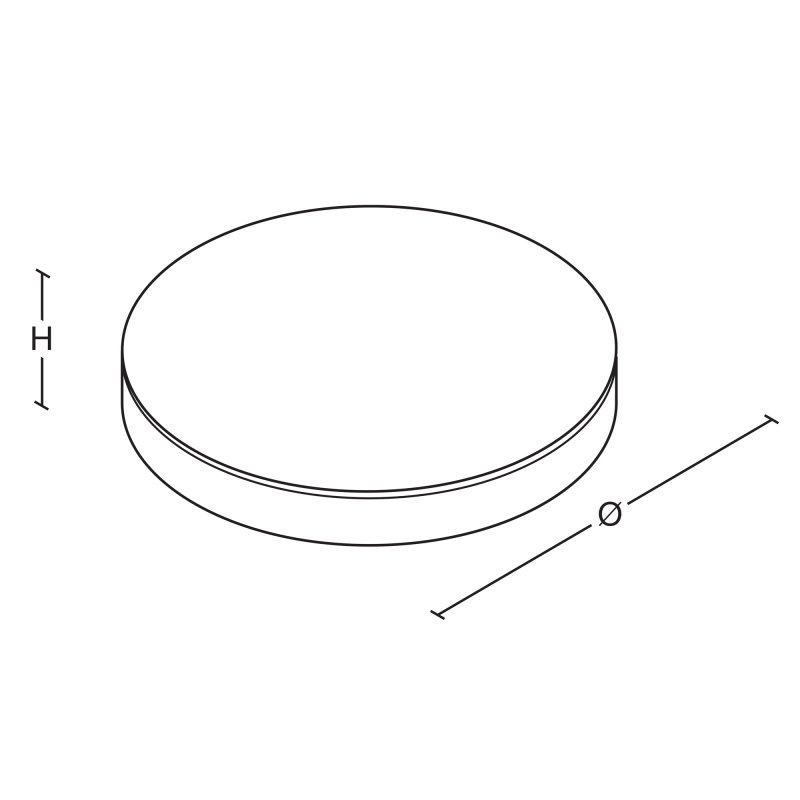

Dimensions Diagram 1
H KG KG(EM) Ø
117 2.3 3.6 367

Photometric Performance

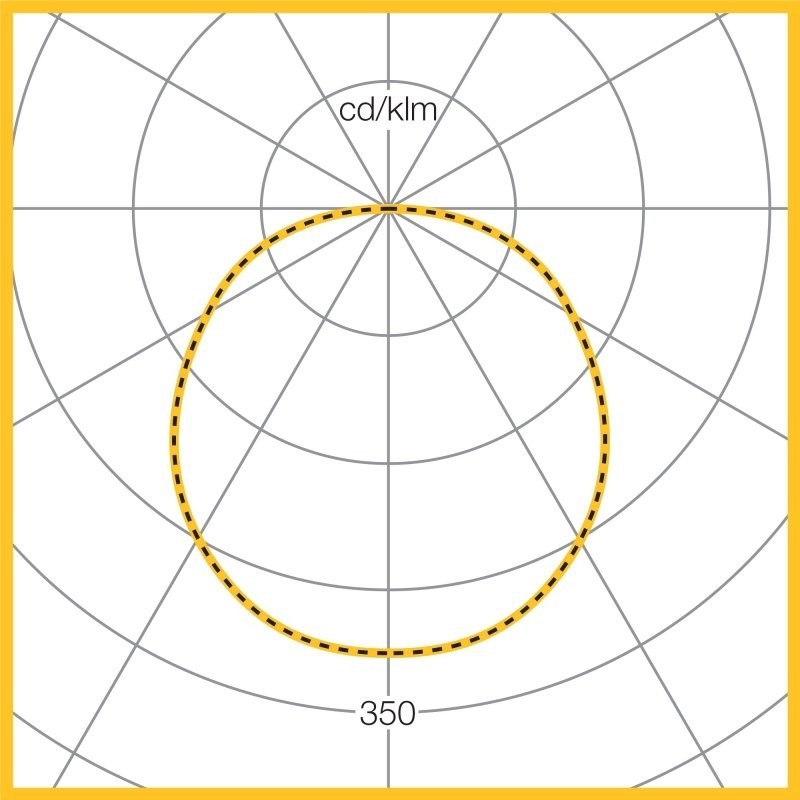

Photometric Performance Diagram - Wide Distribution
Wide Distribution
LOR = 100.00%

Performance Guide

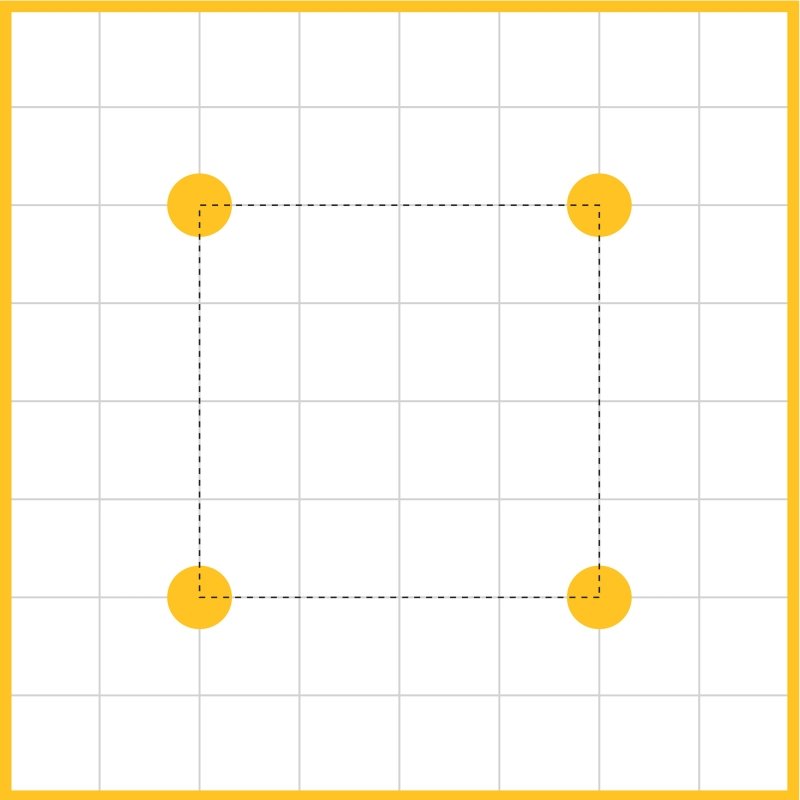

Performance Guide Diagram 1
  • Lamps: 15.4W LED
  • Illuminance: 207 lux
  • Spacing: 2.4m x 2.4m

  • Maintenance: 0.8
  • Reflectance: 70/50/20
  • Ceiling Height: 2.7m
  • Working plane: 0.0m

LED Performance

Colour Temp RA (CRI) Colour consistency
3000K >80 MacAdam 3 SDCM
4000K >80 MacAdam 3 SDCM

Surface mounted circular IP44 and IK10 rated LED bulkhead luminaire with polycarbonate opal diffuser. Innovative hinged LED light engine for excellent uniformity of light. Optional integrated microwave presence detector with ON/OFF or setback functionality in standalone – as Whitecroft Lighting HORIZON 360.
