ACL Vitality | Whitecroft Lighting

ACL Vitality

Overview

A tough and corrosion resistant IP66 surface mounted solution suitable for high humidity areas or exterior mounting under a canopy or covered environment. Whitecroft Vitality solution which is independently accredited by the Cradle to Cradle Institute® demonstrating a 'Circular Economy' ready product for future upgrades, easy replacement of components and excellent material health.

Optics

e-Light LEDs for maximum efficacy and long life
Output options:
- 658mm, 1651 lumens (12W)
- 658mm, 3275 lumens (22W)
- 1282mm, 2794 lumens (17W)
- 1282mm, 3970 lumens (25W)
- 1282mm, 4657 lumens (30W)
- 1282mm, 6425 lumens (42W)
- 1578mm, 7627 lumens (50W)
- 1578mm, 9518 lumens (57W)
Emergency Output:
- 658mm versions - 589 lumens
- 1282 & 1578mm versions - 592 lumens
4000K cool white colour temperature

Body

IP66 / IK08 rated
GRP body finished light grey
Surface mounted with cable or conduit entry
Plastic toggle clip lock mechanism
Supplied with ceiling fixing kit and plastic diffuser securing clips. If required stainless steel securing clips are available and are to be ordered separately
IP66 suitable for mounting externally but only under canopies, not in direct sunlight or open areas exposed to adverse weather conditions. Not for installation in an environment liable to produce standing water on the fitting or IP glands
Optional hook suspension kit
Ambient operating temperatures:
- Standard -20°C to 25°C ('94K variants)
- Standard -20°C to 35°C ('04K variants)
- Standard -20°C to 40°C ('14K, '64K & '74K variants)
- Standard -20°C to 45°C ('24K, '34K & '44K variants)
- Emergency -5°C to 25°C
Emergency variants supplied with Lithium Ion Phosphate (LiFePo4) batteries

Enquire about this product

Family Datasheet

Product Downloads

658mm long Number of Parts 6

Click on part code below for downloads

Part Code	Description	Type	Output (lm)	Power (W)	Colour Temperature	Length / Diameter (mm)	Driver Type	Emergency Type
ACVY04K	658mm long	Luminaire	1651	12	4000K, Ra80	658	DALI LED Driver	N/A	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1651},{"Name":"Circuit Watts","Value":12},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":137.599999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-600-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY04K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY04K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY04K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}
ACVY14K	658mm long	Luminaire	3275	22	4000K, Ra80	658	DALI LED Driver	N/A	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3275},{"Name":"Circuit Watts","Value":22},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":148.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-600-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY14K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY14K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY14K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}
ACVY04KEM	658mm long	Luminaire	1651	12	4000K, Ra80	658	DALI LED Driver	3 hr EM LiFeP04	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":589},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1651},{"Name":"Circuit Watts","Value":12},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":137.599999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-600-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY04K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY04K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY04K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}
ACVY14KEM	658mm long	Luminaire	3275	22	4000K, Ra80	658	DALI LED Driver	3 hr EM LiFeP04	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":589},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3275},{"Name":"Circuit Watts","Value":22},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":148.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-600-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY14K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY14K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY14K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}
ACVY04KEP	658mm long	Luminaire	1651	12	4000K, Ra80	658	DALI LED Driver	3 hr EP LiFeP04	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":589},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1651},{"Name":"Circuit Watts","Value":12},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":137.599999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-600-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY04K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY04K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY04K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}
ACVY14KEP	658mm long	Luminaire	3275	22	4000K, Ra80	658	DALI LED Driver	3 hr EP LiFeP04	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":589},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3275},{"Name":"Circuit Watts","Value":22},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":148.900000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-600-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY14K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY14K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY14K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}

1282mm long Number of Parts 12

Click on part code below for downloads

Part Code	Description	Type	Output (lm)	Power (W)	Colour Temperature	Length / Diameter (mm)	Driver Type	Emergency Type
ACVY24K	1282mm long	Luminaire	2794	17	4000K, Ra80	1282	DALI LED Driver	N/A	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2794},{"Name":"Circuit Watts","Value":17},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":164.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-1200-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY24K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY24K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY24K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}
ACVY34K	1282mm long	Luminaire	3970	25	4000K, Ra80	1282	DALI LED Driver	N/A	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3970},{"Name":"Circuit Watts","Value":25},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":158.80000000000001136868377216160297393798828125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-1200-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY34K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY34K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY34K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}
ACVY44K	1282mm long	Luminaire	4657	30	4000K, Ra80	1282	DALI LED Driver	N/A	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4657},{"Name":"Circuit Watts","Value":30},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":155.19999999999998863131622783839702606201171875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-1200-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY44K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY44K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY44K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}
ACVY64K	1282mm long	Luminaire	6425	42	4000K, Ra80	1282	DALI LED Driver	N/A	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":6425},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":153},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-1200-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY64K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY64K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY64K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}
ACVY24KEM	1282mm long	Luminaire	2794	17	4000K, Ra80	1282	DALI LED Driver	3 hr EM LiFeP04	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":592},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2794},{"Name":"Circuit Watts","Value":17},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":164.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-1200-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY24K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY24K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY24K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}
ACVY34KEM	1282mm long	Luminaire	3970	25	4000K, Ra80	1282	DALI LED Driver	3 hr EM LiFeP04	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":592},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3970},{"Name":"Circuit Watts","Value":25},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":158.80000000000001136868377216160297393798828125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-1200-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY34K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY34K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY34K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}
ACVY44KEM	1282mm long	Luminaire	4657	30	4000K, Ra80	1282	DALI LED Driver	3 hr EM LiFeP04	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":592},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4657},{"Name":"Circuit Watts","Value":30},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":155.19999999999998863131622783839702606201171875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-1200-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY44K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY44K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY44K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}
ACVY64KEM	1282mm long	Luminaire	6425	42	4000K, Ra80	1282	DALI LED Driver	3 hr EM LiFeP04	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":592},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":6425},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":153},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-1200-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY64K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY64K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY64K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}
ACVY24KEP	1282mm long	Luminaire	2794	17	4000K, Ra80	1282	DALI LED Driver	3 hr EP LiFeP04	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":592},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2794},{"Name":"Circuit Watts","Value":17},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":164.400000000000005684341886080801486968994140625},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-1200-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY24K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY24K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY24K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}
ACVY34KEP	1282mm long	Luminaire	3970	25	4000K, Ra80	1282	DALI LED Driver	3 hr EP LiFeP04	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":592},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":3970},{"Name":"Circuit Watts","Value":25},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":158.80000000000001136868377216160297393798828125},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-1200-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY34K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY34K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY34K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}
ACVY44KEP	1282mm long	Luminaire	4657	30	4000K, Ra80	1282	DALI LED Driver	3 hr EP LiFeP04	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":592},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":4657},{"Name":"Circuit Watts","Value":30},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":155.19999999999998863131622783839702606201171875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-1200-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY44K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY44K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY44K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}
ACVY64KEP	1282mm long	Luminaire	6425	42	4000K, Ra80	1282	DALI LED Driver	3 hr EP LiFeP04	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":592},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":6425},{"Name":"Circuit Watts","Value":42},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":153},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-1200-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY64K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY64K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY64K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}

1578mm long Number of Parts 6

Click on part code below for downloads

Part Code	Description	Type	Output (lm)	Power (W)	Colour Temperature	Length / Diameter (mm)	Driver Type	Emergency Type
ACVY74K	1578mm long	Luminaire	7627	50	4000K, Ra80	1578	DALI LED Driver	N/A	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":7627},{"Name":"Circuit Watts","Value":50},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":152.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-1500-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY74K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY74K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY74K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}
ACVY94K	1578mm long	Luminaire	9518	57	4000K, Ra80	1578	DALI LED Driver	N/A	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":9518},{"Name":"Circuit Watts","Value":57},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":167},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-1500-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY94K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY94K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY94K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}
ACVY74KEM	1578mm long	Luminaire	7627	50	4000K, Ra80	1578	DALI LED Driver	3 hr EM LiFeP04	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":601},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":7627},{"Name":"Circuit Watts","Value":50},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":152.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-1500-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY74K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY74K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY74K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}
ACVY94KEM	1578mm long	Luminaire	9518	57	4000K, Ra80	1578	DALI LED Driver	3 hr EM LiFeP04	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":601},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":9518},{"Name":"Circuit Watts","Value":57},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":167},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EM LiFeP04"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-1500-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY94K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY94K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY94K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}
ACVY74KEP	1578mm long	Luminaire	7627	50	4000K, Ra80	1578	DALI LED Driver	3 hr EP LiFeP04	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":601},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":7627},{"Name":"Circuit Watts","Value":50},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":152.5},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-1500-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY74K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY74K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY74K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}
ACVY94KEP	1578mm long	Luminaire	9518	57	4000K, Ra80	1578	DALI LED Driver	3 hr EP LiFeP04	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":601},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":9518},{"Name":"Circuit Watts","Value":57},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":167},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra80"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3 hr EP LiFeP04"},{"Name":"Product Colour","Value":"Grey"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"acl-vitality-1500-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"acl-vitality-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"acl-vitality-d1.jpg"},"PERFORMANCE_DIAGRAM":{"Field":"PERFORMANCE_DIAGRAM","Name":"Performance Diagram","Value":"acl-vitality-pg1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"ACVY94K.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"ACVY94K.uld"},"IES":{"Field":"IES","Name":"IES","Value":"ACVY94K.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"acl-vitality-ldt.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"acl-vitality-uld.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"acl-vitality-ies.zip"}}

Accessories Number of Parts 3

Click on part code below for downloads

Part Code	Description	Type	Output (lm)	Power (W)	Driver Type
ACLSSCLIP	Accessories	Stainless steel (8) clips for 658 & 1282mm long luminaire	N/A	N/A	N/A	[{"Name":"LED Life Performance","Value":"N\/A"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":"N\/A"},{"Name":"Circuit Watts","Value":"N\/A"},{"Name":"LOR","Value":"N\/A"},{"Name":"Lumen per circuit watt","Value":"N\/A"},{"Name":"Lamp type","Value":""},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"N\/A"},{"Name":"Emergency type","Value":""},{"Name":"Product Colour","Value":""},{"Name":"Integral Controls","Value":""}] []
ACLSSCLIP10	Accessories	Stainless steel (10) clips for 1578mm long luminaire	N/A	N/A	N/A	[{"Name":"LED Life Performance","Value":"N\/A"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":"N\/A"},{"Name":"Circuit Watts","Value":"N\/A"},{"Name":"LOR","Value":"N\/A"},{"Name":"Lumen per circuit watt","Value":"N\/A"},{"Name":"Lamp type","Value":""},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"N\/A"},{"Name":"Emergency type","Value":""},{"Name":"Product Colour","Value":""},{"Name":"Integral Controls","Value":""}] []
ACFHOOKKIT	Accessories	Suspension hook kit	N/A	N/A	N/A	[{"Name":"LED Life Performance","Value":"N\/A"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":"N\/A"},{"Name":"Circuit Watts","Value":"N\/A"},{"Name":"LOR","Value":"N\/A"},{"Name":"Lumen per circuit watt","Value":"N\/A"},{"Name":"Lamp type","Value":""},{"Name":"Colour Temperature","Value":""},{"Name":"Gear","Value":"N\/A"},{"Name":"Emergency type","Value":""},{"Name":"Product Colour","Value":""},{"Name":"Integral Controls","Value":""}] []

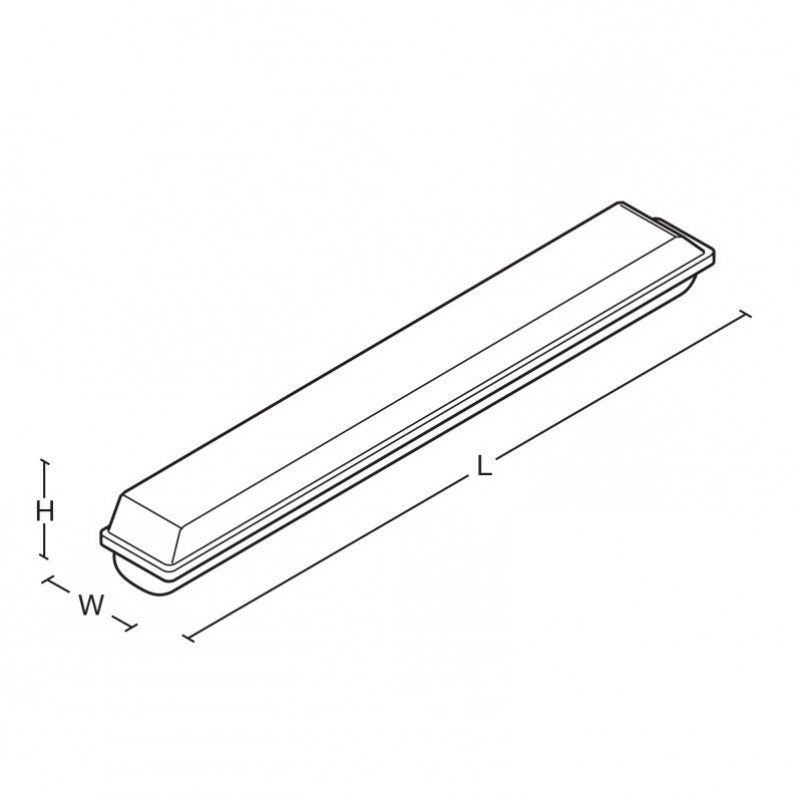

VERSION	L	W	H	KG	KG(EM)	FC
658mm	658	145	101	1.8	2.3	266
1282mm	1282	145	101	2.8	3.3	676
1578mm	1578	145	101	3.4	3.9	976

Photometric Performance

ACL Industry Vitality

LOR = 100%

Performance Guide

Lamps: 30W LED
Illuminance: 200 lux
Spacing: 4.0 x 4.0m

Maintenance: 0.8
Reflectance: 70/50/20%
Ceiling Height: 3.2m
Working plane: 0.0m

LED Performance

Colour Temp	RA (CRI)	Colour consistency
3000/4000K	>80	MacAdam 3 SDCM

Anti-corrosive luminaire for demanding environments. One piece seamless gasket for increased life and protectionand high impact polycarbonate injection moulded opal diffuser. Independently accredited by the Cradle to Cradle Institute® demonstrating a 'Circular Economy' ready product for future upgrades, easy replacement of components and excellent material health - as Whitecroft Lighting ACL VITALITY
