Overview

Cascade - In a world demanding innovative low impact solution Cascade delivers an effective and efficient alternative to a full diffuser flat panel for low glare spaces. Building on circular design principles of modular design and effective use of materials, Cascade will support the delivery of low impact buildings today and into the future.

Lighting Performance

Optics:

  • Pod Optic to support delivery of UGR. All Outputs <3,000cd/m2 to support compliance to EN12464-1 & LG7 requirements for VDT use
  • Diffuser Optic for open area spaces.
  • Tp(A) rated

Outputs:

  • Pod:
    • 2300 lumens, 17.7W (130llm/w)
    • 3300 lumens, 25.4W (130llm/w)
    • 4100 lumens, 31.9W (129llm/w)
  • Diffuser:
    • 2305 lumens, 18.3W (126llm/w)
    • 3302 lumens, 26.2W (126llm/w)
    • 4103 lumens, 33.1W (124llm/w)
    • 5105 lumens, 42.4W (102llm/w)

Light Source:

  • 4000K
  • >Ra 80
  • MacAdam 3 SDCM
  • L90B50@>50,000 hours (other lifetime data available on request)

Control Gear

  • Fixed Output and DALI 2 control gear available.
  • Note: All DALI variants require 1 DALI address per driver. COMEPS variants will require an additional DALI address.

Lighting Controls:

  • Available with integrated Organic Response smart sensor node.

Emergency Lighting:

  • Integrated 3 hour LiFeP04. 3hr Keyswitch (EM), auto-test (EP) and wireless auto-test (EW) availabe.
  • LiFeP04 offers several benefits versus NiCAD battery technology:
    • Improved Warranty (5 years)
    • Reduced energy in operation (up to 45%)
    • Longer Life (6-8 years)
    • Increased switching cycles
    • Lower embodied carbon
  • Emergency Output:
    • Pod - 255 lumens
    • Diffuser - 275 lumens

For specific product variant information, including lifetime, efficacy, power, output and electrical data, please click on the individual part number under 'Order Codes' and view the datasheet

Construction

  • Steel canopy finished in white RAL 9003
  • Suitable for 600 x 600mm Exposed Tee (584 x 584mm)
  • Replaceable central cartridge with optics and light engine

Accessories:

  • Can be used with MSU Kit for Mental Health - Medium Secure Unit & Anti-Ligature applications
  • Plasterboard (use 'XT' version with 'SFTPBF' frame accessory)

Click on part code below for downloads

Part Code Output (lm) Power (W) Colour Temperature Emergency Type Product Colour Driver Type Optic Integral Controls
CAPH14K8XT 2305 17.7 4000K, Ra80 N/A White Fixed Output Pod N/A
CAPH14K8XTEM 2305 17.7 4000K, Ra80 3 hr EM LiFeP04 White Fixed Output Pod N/A
CAPH14K8XTEP 2305 17.7 4000K, Ra80 3 hr EP LiFeP04 White Fixed Output Pod N/A
CAPH14K8XTEW 2305 17.7 4000K, Ra80 Routefinder Wireless LiFeP04 White Fixed Output Pod N/A
CAPY14K8XT 2305 17.7 4000K, Ra80 N/A White DALI LED Driver Pod N/A
CAPY14K8XTEM 2305 17.7 4000K, Ra80 3 hr EM LiFeP04 White DALI LED Driver Pod N/A
CAPY14K8XTEP 2305 17.7 4000K, Ra80 3 hr EP LiFeP04 White DALI LED Driver Pod N/A
CAPY14K8XTEW 2305 17.7 4000K, Ra80 Routefinder Wireless LiFeP04 White DALI LED Driver Pod N/A
CAPRGY14K8XT 2305 17.7 4000K, Ra80 N/A White DALI LED Driver Pod ORGANIC RESPONSE
CAPRGY14K8XTEM 2305 17.7 4000K, Ra80 3 hr EM LiFeP04 White DALI LED Driver Pod ORGANIC RESPONSE
CAPRGY14K8XTEP 2305 17.7 4000K, Ra80 3 hr EP LiFeP04 White DALI LED Driver Pod ORGANIC RESPONSE

Click on part code below for downloads

Part Code Output (lm) Power (W) Colour Temperature Emergency Type Product Colour Driver Type Optic Integral Controls
CAPH24K8XT 3306 25.4 4000K, Ra80 N/A White Fixed Output Pod N/A
CAPH24K8XTEM 3306 25.4 4000K, Ra80 3 hr EM LiFeP04 White Fixed Output Pod N/A
CAPH24K8XTEP 3306 25.4 4000K, Ra80 3 hr EP LiFeP04 White Fixed Output Pod N/A
CAPH24K8XTEW 3306 25.4 4000K, Ra80 Routefinder Wireless LiFeP04 White Fixed Output Pod N/A
CAPY24K8XT 3306 25.4 4000K, Ra80 N/A White DALI LED Driver Pod N/A
CAPY24K8XTEM 3306 25.4 4000K, Ra80 3 hr EM LiFeP04 White DALI LED Driver Pod N/A
CAPY24K8XTEP 3306 25.4 4000K, Ra80 3 hr EP LiFeP04 White DALI LED Driver Pod N/A
CAPY24K8XTEW 3306 25.4 4000K, Ra80 Routefinder Wireless LiFeP04 White DALI LED Driver Pod N/A
CAPRGY24K8XT 3306 25.4 4000K, Ra80 N/A White DALI LED Driver Pod ORGANIC RESPONSE
CAPRGY24K8XTEM 3306 25.4 4000K, Ra80 3 hr EM LiFeP04 White DALI LED Driver Pod ORGANIC RESPONSE
CAPRGY24K8XTEP 3306 25.4 4000K, Ra80 3 hr EP LiFeP04 White DALI LED Driver Pod ORGANIC RESPONSE

Click on part code below for downloads

Part Code Output (lm) Power (W) Colour Temperature Emergency Type Product Colour Driver Type Optic Integral Controls
CAPH34K8XT 4105 31.9 4000K, Ra80 N/A White Fixed Output Pod N/A
CAPH34K8XTEM 4105 31.9 4000K, Ra80 3 hr EM LiFeP04 White Fixed Output Pod N/A
CAPH34K8XTEP 4105 31.9 4000K, Ra80 3 hr EP LiFeP04 White Fixed Output Pod N/A
CAPH34K8XTEW 4105 31.9 4000K, Ra80 Routefinder Wireless LiFeP04 White Fixed Output Pod N/A
CAPY34K8XT 4105 31.9 4000K, Ra80 N/A White DALI LED Driver Pod N/A
CAPY34K8XTEM 4105 31.9 4000K, Ra80 3 hr EM LiFeP04 White DALI LED Driver Pod N/A
CAPY34K8XTEP 4105 31.9 4000K, Ra80 3 hr EP LiFeP04 White DALI LED Driver Pod N/A
CAPY34K8XTEW 4105 31.9 4000K, Ra80 Routefinder Wireless LiFeP04 White DALI LED Driver Pod N/A
CAPRGY34K8XT 4105 31.9 4000K, Ra80 N/A White DALI LED Driver Pod ORGANIC RESPONSE
CAPRGY34K8XTEM 4105 31.9 4000K, Ra80 3 hr EM LiFeP04 White DALI LED Driver Pod ORGANIC RESPONSE
CAPRGY34K8XTEP 4105 31.9 4000K, Ra80 3 hr EP LiFeP04 White DALI LED Driver Pod ORGANIC RESPONSE

Click on part code below for downloads

Part Code Output (lm) Power (W) Colour Temperature Emergency Type Product Colour Driver Type Optic Integral Controls
CADH14K8XT 2305 18.3 4000K, Ra80 N/A White Fixed Output Diffuser N/A
CADH14K8XTEM 2305 18.3 4000K, Ra80 3 hr EM LiFeP04 White Fixed Output Diffuser N/A
CADH14K8XTEP 2305 18.3 4000K, Ra80 3 hr EP LiFeP04 White Fixed Output Diffuser N/A
CADH14K8XTEW 2305 18.3 4000K, Ra80 Routefinder Wireless LiFeP04 White Fixed Output Diffuser N/A
CADY14K8XT 2305 18.3 4000K, Ra80 N/A White DALI LED Driver Diffuser N/A
CADY14K8XTEM 2305 18.3 4000K, Ra80 3 hr EM LiFeP04 White DALI LED Driver Diffuser N/A
CADY14K8XTEP 2305 18.3 4000K, Ra80 3 hr EP LiFeP04 White DALI LED Driver Diffuser N/A
CADY14K8XTEW 2305 18.3 4000K, Ra80 Routefinder Wireless LiFeP04 White DALI LED Driver Diffuser N/A
CADRGY14K8XT 2305 18.3 4000K, Ra80 N/A White DALI LED Driver Diffuser ORGANIC RESPONSE
CADRGY14K8XTEM 2305 18.3 4000K, Ra80 3 hr EM LiFeP04 White DALI LED Driver Diffuser ORGANIC RESPONSE
CADRGY14K8XTEP 2305 18.3 4000K, Ra80 3 hr EP LiFeP04 White DALI LED Driver Diffuser ORGANIC RESPONSE

Click on part code below for downloads

Part Code Output (lm) Power (W) Colour Temperature Emergency Type Product Colour Driver Type Optic Integral Controls
CADH24K8XT 3302 26.2 4000K, Ra80 N/A White Fixed Output Diffuser N/A
CADH24K8XTEM 3302 26.2 4000K, Ra80 3 hr EM LiFeP04 White Fixed Output Diffuser N/A
CADH24K8XTEP 3302 26.2 4000K, Ra80 3 hr EP LiFeP04 White Fixed Output Diffuser N/A
CADH24K8XTEW 3302 26.2 4000K, Ra80 Routefinder Wireless LiFeP04 White Fixed Output Diffuser N/A
CADY24K8XT 3302 26.2 4000K, Ra80 N/A White DALI LED Driver Diffuser N/A
CADY24K8XTEM 3302 26.2 4000K, Ra80 3 hr EM LiFeP04 White DALI LED Driver Diffuser N/A
CADY24K8XTEP 3302 26.2 4000K, Ra80 3 hr EP LiFeP04 White DALI LED Driver Diffuser N/A
CADY24K8XTEW 3302 26.2 4000K, Ra80 Routefinder Wireless LiFeP04 White DALI LED Driver Diffuser N/A
CADRGY24K8XT 3302 26.2 4000K, Ra80 N/A White DALI LED Driver Diffuser ORGANIC RESPONSE
CADRGY24K8XTEM 3302 26.2 4000K, Ra80 3 hr EM LiFeP04 White DALI LED Driver Diffuser ORGANIC RESPONSE
CADRGY24K8XTEP 3302 26.2 4000K, Ra80 3 hr EP LiFeP04 White DALI LED Driver Diffuser ORGANIC RESPONSE

Click on part code below for downloads

Part Code Output (lm) Power (W) Colour Temperature Emergency Type Product Colour Driver Type Optic Integral Controls
CADH34K8XT 4103 33.1 4000K, Ra80 N/A White Fixed Output Diffuser N/A
CADH34K8XTEM 4103 33.1 4000K, Ra80 3 hr EM LiFeP04 White Fixed Output Diffuser N/A
CADH34K8XTEP 4103 33.1 4000K, Ra80 3 hr EP LiFeP04 White Fixed Output Diffuser N/A
CADH34K8XTEW 4103 33.1 4000K, Ra80 Routefinder Wireless LiFeP04 White Fixed Output Diffuser N/A
CADY34K8XT 4103 33.1 4000K, Ra80 N/A White DALI LED Driver Diffuser N/A
CADY34K8XTEM 4103 33.1 4000K, Ra80 3 hr EM LiFeP04 White DALI LED Driver Diffuser N/A
CADY34K8XTEP 4103 33.1 4000K, Ra80 3 hr EP LiFeP04 White DALI LED Driver Diffuser N/A
CADY34K8XTEW 4103 33.1 4000K, Ra80 Routefinder Wireless LiFeP04 White DALI LED Driver Diffuser N/A
CADRGY34K8XT 4103 33.1 4000K, Ra80 N/A White DALI LED Driver Diffuser ORGANIC RESPONSE
CADRGY34K8XTEM 4103 33.1 4000K, Ra80 3 hr EM LiFeP04 White DALI LED Driver Diffuser ORGANIC RESPONSE
CADRGY34K8XTEP 4103 33.1 4000K, Ra80 3 hr EP LiFeP04 White DALI LED Driver Diffuser ORGANIC RESPONSE

Click on part code below for downloads

Part Code Output (lm) Power (W) Colour Temperature Emergency Type Product Colour Driver Type Optic Integral Controls
CADH44K8XT 5105 42.4 4000K, Ra80 N/A White Fixed Output Diffuser N/A
CADH44K8XTEM 5105 42.4 4000K, Ra80 3 hr EM LiFeP04 White Fixed Output Diffuser N/A
CADH44K8XTEP 5105 42.4 4000K, Ra80 3 hr EP LiFeP04 White Fixed Output Diffuser N/A
CADH44K8XTEW 5105 42.4 4000K, Ra80 Routefinder Wireless LiFeP04 White Fixed Output Diffuser N/A
CADY44K8XT 5105 42.4 4000K, Ra80 N/A White DALI LED Driver Diffuser N/A
CADY44K8XTEM 5105 42.4 4000K, Ra80 3 hr EM LiFeP04 White DALI LED Driver Diffuser N/A
CADY44K8XTEP 5105 42.4 4000K, Ra80 3 hr EP LiFeP04 White DALI LED Driver Diffuser N/A
CADY44K8XTEW 5105 42.4 4000K, Ra80 Routefinder Wireless LiFeP04 White DALI LED Driver Diffuser N/A
CADRGY44K8XT 5105 42.4 4000K, Ra80 N/A White DALI LED Driver Diffuser ORGANIC RESPONSE
CADRGY44K8XTEM 5105 42.4 4000K, Ra80 3 hr EM LiFeP04 White DALI LED Driver Diffuser ORGANIC RESPONSE
CADRGY44K8XTEP 5105 42.4 4000K, Ra80 3 hr EP LiFeP04 White DALI LED Driver Diffuser ORGANIC RESPONSE

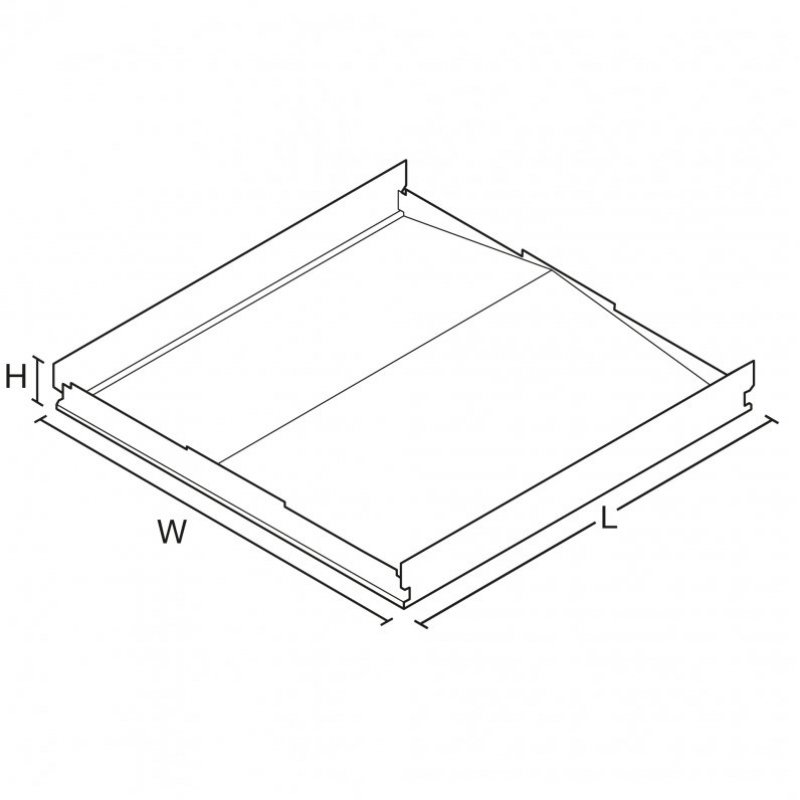

Dimensions Diagram 1
VERSION L W H KG KG(EM)
Cascade 584 584 69 3.5 5.0

Photometric Performance

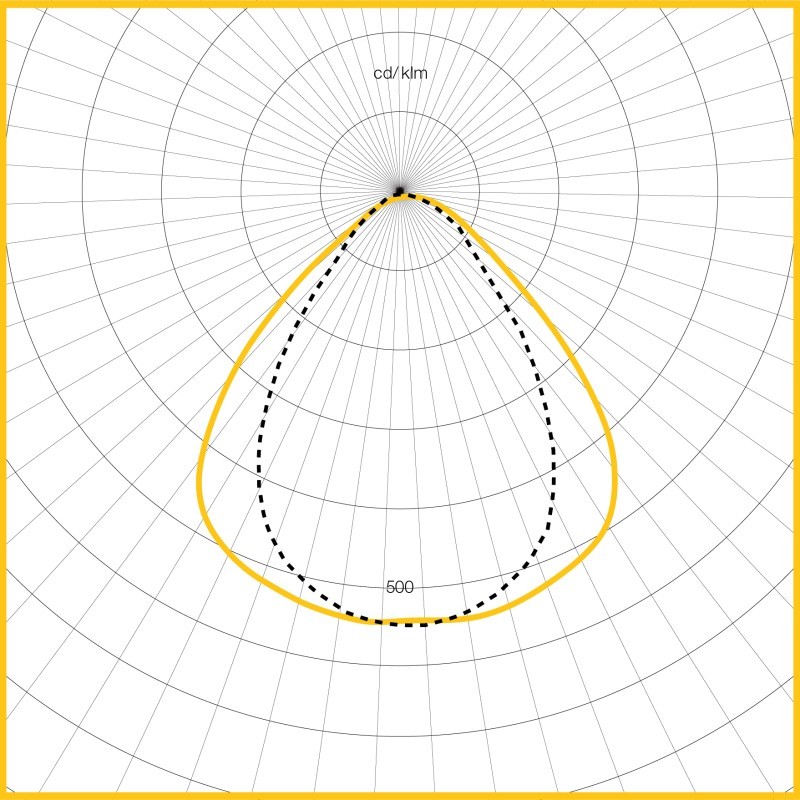

Photometric Performance Diagram - Pod Optic
Pod Optic
LOR = 100%

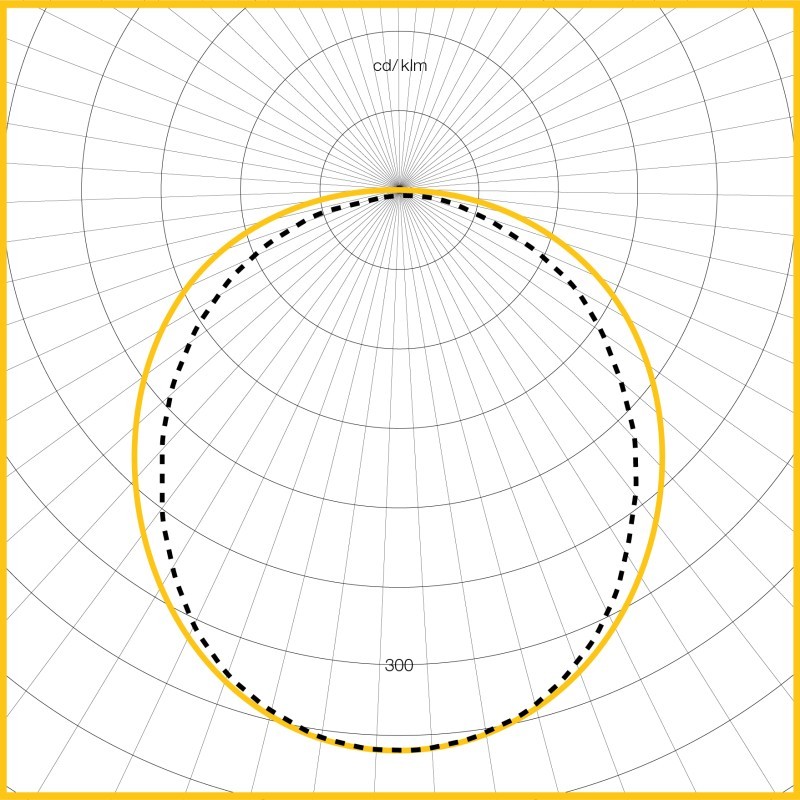

Photometric Performance Diagram - Diffuser Optic
Diffuser Optic
LOR = 100%

LED Performance

Colour Temp RA (CRI) Life expectancy Colour consistency
4000K >Ra80 L90@47,000 hours MacAdam 3 SDCM

Recessed modular luminaire with strong visual differentiation using a central linear optic. Diffuser optic for area lighting solutions. The light engine cartridge is easily replaced without tools for simple future upgrades and replacement ensuring a sustainable lighting solution. AS WHITECROFT CASCADE
