Overview

With round and square housings and a choice of optics, Mirage 3 is a lighting designers toolkit. Tunable White allows selected or programmable adjustment of colour temperature at different times of the day, giving occupants flexibility and control over their environment which can in turn align to improved mood and productivity.

MIrage 3 has a modular construction enabling simple future maintenance and upgrades, making it a product ideal for today's drive for a circular economy.

Optics

Light Output Options

Nominal 2000 lumens (26W)*

c. 80 ll/cw dependent on output and CCT

Semi specular or white reflector options

Tunable White LED light engine ranging from 2700K to 6500K

*Output and wattage based on 4000K colour temperature. These figures will vary depending on colour temperature used.

For specific product variant information, including lifetime, efficacy, power, output and electrical data, please click on the individual part number under 'Order Codes' and view the datasheet

Output Data
Round, semi specular	1823 lm, 26W	2001 lm, 26W	1845 lm, 28W
Round, white reflector	2042 lm, 26W	2218 lm, 26W	2064 lm, 29W
Square, semi specular	1962 lm, 26W	2109 lm, 26W	1964 lm, 27W

Output Data

Version

2700K

4000K

6500K

Round, semi specular

1823 lm, 26W

2001 lm, 26W

1845 lm, 28W

Round, white reflector

2042 lm, 26W

2218 lm, 26W

2064 lm, 29W

Square, semi specular

1962 lm, 26W

2109 lm, 26W

1964 lm, 27W

Part Code	Product Colour	Output (lm)	Power (W)	Distribution	Colour Temperature	Length / Diameter (mm)	Driver Type	Emergency Type	Mounting
M3WYTM1	SemiSpec Reflector,White Bezel	2001	26	Wide	Tunable	173	DALI LED Driver	N/A	Recessed	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2001},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":77},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"Tunable"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"SemiSpec Reflector,White Bezel"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Mirage3-C165-SS-WT-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Mirage3-C165-wide-ss-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Mirage3-C165-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"M3WYTM1.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"M3WYTM1.uld"},"IES":{"Field":"IES","Name":"IES","Value":"M3WYTM1.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"mirage3-tunable-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"mirage3-tunable-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"mirage3-tunable-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"mirage3-tunable-REVIT.zip"},"INSTALLATION_LEAFLET":{"Field":"INSTALLATION_LEAFLET","Name":"Installation Leaflet","Value":"mirage3-i1.pdf"},"PRODUCT_BROCHURE":{"Field":"PRODUCT_BROCHURE","Name":"Product Brochure","Value":"Mirage3-brochure.pdf"}}
M3WYTM1EM	SemiSpec Reflector,White Bezel	2001	26	Wide	Tunable	173	DALI LED Driver	3hr Maint	Recessed	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2001},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":77},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"Tunable"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"SemiSpec Reflector,White Bezel"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Mirage3-C165-SS-WT-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Mirage3-C165-wide-ss-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Mirage3-C165-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"M3WYTM1.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"M3WYTM1.uld"},"IES":{"Field":"IES","Name":"IES","Value":"M3WYTM1.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"mirage3-tunable-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"mirage3-tunable-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"mirage3-tunable-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"mirage3-tunable-REVIT.zip"},"INSTALLATION_LEAFLET":{"Field":"INSTALLATION_LEAFLET","Name":"Installation Leaflet","Value":"mirage3-i1.pdf"},"PRODUCT_BROCHURE":{"Field":"PRODUCT_BROCHURE","Name":"Product Brochure","Value":"Mirage3-brochure.pdf"}}
M3WYTM1EP	SemiSpec Reflector,White Bezel	2001	26	Wide	Tunable	173	DALI LED Driver	COMEPS	Recessed	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2001},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":77},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"Tunable"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"SemiSpec Reflector,White Bezel"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Mirage3-C165-SS-WT-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Mirage3-C165-wide-ss-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Mirage3-C165-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"M3WYTM1.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"M3WYTM1.uld"},"IES":{"Field":"IES","Name":"IES","Value":"M3WYTM1.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"mirage3-tunable-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"mirage3-tunable-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"mirage3-tunable-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"mirage3-tunable-REVIT.zip"},"INSTALLATION_LEAFLET":{"Field":"INSTALLATION_LEAFLET","Name":"Installation Leaflet","Value":"mirage3-i1.pdf"},"PRODUCT_BROCHURE":{"Field":"PRODUCT_BROCHURE","Name":"Product Brochure","Value":"Mirage3-brochure.pdf"}}

Part Code

Product Colour

Output (lm)

Power (W)

Distribution

Colour Temperature

Length / Diameter (mm)

Driver Type

Emergency Type

Mounting

SemiSpec Reflector,White Bezel

2001

Wide

Tunable

173

DALI LED Driver

N/A

Recessed

{"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Mirage3-C165-SS-WT-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Mirage3-C165-wide-ss-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Mirage3-C165-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"M3WYTM1.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"M3WYTM1.uld"},"IES":{"Field":"IES","Name":"IES","Value":"M3WYTM1.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"mirage3-tunable-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"mirage3-tunable-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"mirage3-tunable-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"mirage3-tunable-REVIT.zip"},"INSTALLATION_LEAFLET":{"Field":"INSTALLATION_LEAFLET","Name":"Installation Leaflet","Value":"mirage3-i1.pdf"},"PRODUCT_BROCHURE":{"Field":"PRODUCT_BROCHURE","Name":"Product Brochure","Value":"Mirage3-brochure.pdf"}}

SemiSpec Reflector,White Bezel

2001

Wide

Tunable

173

DALI LED Driver

3hr Maint

Recessed

SemiSpec Reflector,White Bezel

2001

Wide

Tunable

173

DALI LED Driver

COMEPS

Recessed

Part Code	Product Colour	Output (lm)	Power (W)	Distribution	Colour Temperature	Length / Diameter (mm)	Driver Type	Emergency Type	Mounting
M3WYTW1	White Reflector,White Bezel	2218	26	Wide	Tunable	173	DALI LED Driver	N/A	Recessed	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2218},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":85.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"Tunable"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"White Reflector,White Bezel"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Mirage3-C165-WREF-WT-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Mirage3-C165-wide-wt-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Mirage3-C165-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"M3WYTW1.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"M3WYTW1.uld"},"IES":{"Field":"IES","Name":"IES","Value":"M3WYTW1.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"mirage3-tunable-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"mirage3-tunable-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"mirage3-tunable-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"mirage3-tunable-REVIT.zip"},"INSTALLATION_LEAFLET":{"Field":"INSTALLATION_LEAFLET","Name":"Installation Leaflet","Value":"mirage3-i1.pdf"},"PRODUCT_BROCHURE":{"Field":"PRODUCT_BROCHURE","Name":"Product Brochure","Value":"Mirage3-brochure.pdf"}}
M3WYTW1EM	White Reflector,White Bezel	2218	26	Wide	Tunable	173	DALI LED Driver	3hr Maint	Recessed	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2218},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":85.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"Tunable"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"White Reflector,White Bezel"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Mirage3-C165-WREF-WT-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Mirage3-C165-wide-wt-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Mirage3-C165-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"M3WYTW1.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"M3WYTW1.uld"},"IES":{"Field":"IES","Name":"IES","Value":"M3WYTW1.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"mirage3-tunable-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"mirage3-tunable-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"mirage3-tunable-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"mirage3-tunable-REVIT.zip"},"INSTALLATION_LEAFLET":{"Field":"INSTALLATION_LEAFLET","Name":"Installation Leaflet","Value":"mirage3-i1.pdf"},"PRODUCT_BROCHURE":{"Field":"PRODUCT_BROCHURE","Name":"Product Brochure","Value":"Mirage3-brochure.pdf"}}
M3WYTW1EP	White Reflector,White Bezel	2218	26	Wide	Tunable	173	DALI LED Driver	COMEPS	Recessed	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2218},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":85.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"Tunable"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"White Reflector,White Bezel"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Mirage3-C165-WREF-WT-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Mirage3-C165-wide-wt-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Mirage3-C165-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"M3WYTW1.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"M3WYTW1.uld"},"IES":{"Field":"IES","Name":"IES","Value":"M3WYTW1.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"mirage3-tunable-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"mirage3-tunable-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"mirage3-tunable-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"mirage3-tunable-REVIT.zip"},"INSTALLATION_LEAFLET":{"Field":"INSTALLATION_LEAFLET","Name":"Installation Leaflet","Value":"mirage3-i1.pdf"},"PRODUCT_BROCHURE":{"Field":"PRODUCT_BROCHURE","Name":"Product Brochure","Value":"Mirage3-brochure.pdf"}}

Part Code

Product Colour

Output (lm)

Power (W)

Distribution

Colour Temperature

Length / Diameter (mm)

Driver Type

Emergency Type

Mounting

White Reflector,White Bezel

2218

Wide

Tunable

173

DALI LED Driver

N/A

Recessed

{"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Mirage3-C165-WREF-WT-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Mirage3-C165-wide-wt-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Mirage3-C165-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"M3WYTW1.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"M3WYTW1.uld"},"IES":{"Field":"IES","Name":"IES","Value":"M3WYTW1.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"mirage3-tunable-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"mirage3-tunable-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"mirage3-tunable-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"mirage3-tunable-REVIT.zip"},"INSTALLATION_LEAFLET":{"Field":"INSTALLATION_LEAFLET","Name":"Installation Leaflet","Value":"mirage3-i1.pdf"},"PRODUCT_BROCHURE":{"Field":"PRODUCT_BROCHURE","Name":"Product Brochure","Value":"Mirage3-brochure.pdf"}}

White Reflector,White Bezel

2218

Wide

Tunable

173

DALI LED Driver

3hr Maint

Recessed

White Reflector,White Bezel

2218

Wide

Tunable

173

DALI LED Driver

COMEPS

Recessed

Part Code	Product Colour	Output (lm)	Power (W)	Distribution	Colour Temperature	Length / Diameter (mm)	Driver Type	Emergency Type	Mounting
M4WYTM1	SemiSpec Reflector,White Bezel	2109	26	Wide	Tunable	173	DALI LED Driver	N/A	Recessed	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2109},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":81.099999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"Tunable"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"SemiSpec Reflector,White Bezel"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Mirage3-SQ165-SS-WT-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Mirage3-SQ165-medium-ss-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Mirage3-SQ165-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"M4WYTM1.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"M4WYTM1.uld"},"IES":{"Field":"IES","Name":"IES","Value":"M4WYTM1.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"mirage3-tunable-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"mirage3-tunable-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"mirage3-tunable-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"mirage3-tunable-REVIT.zip"},"INSTALLATION_LEAFLET":{"Field":"INSTALLATION_LEAFLET","Name":"Installation Leaflet","Value":"mirage3-i1.pdf"},"PRODUCT_BROCHURE":{"Field":"PRODUCT_BROCHURE","Name":"Product Brochure","Value":"Mirage3-brochure.pdf"}}
M4WYTM1EM	SemiSpec Reflector,White Bezel	2109	26	Wide	Tunable	173	DALI LED Driver	3hr Maint	Recessed	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2109},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":81.099999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"Tunable"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"3hr Maint"},{"Name":"Product Colour","Value":"SemiSpec Reflector,White Bezel"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Mirage3-SQ165-SS-WT-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Mirage3-SQ165-medium-ss-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Mirage3-SQ165-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"M4WYTM1.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"M4WYTM1.uld"},"IES":{"Field":"IES","Name":"IES","Value":"M4WYTM1.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"mirage3-tunable-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"mirage3-tunable-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"mirage3-tunable-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"mirage3-tunable-REVIT.zip"},"INSTALLATION_LEAFLET":{"Field":"INSTALLATION_LEAFLET","Name":"Installation Leaflet","Value":"mirage3-i1.pdf"},"PRODUCT_BROCHURE":{"Field":"PRODUCT_BROCHURE","Name":"Product Brochure","Value":"Mirage3-brochure.pdf"}}
M4WYTM1EP	SemiSpec Reflector,White Bezel	2109	26	Wide	Tunable	173	DALI LED Driver	COMEPS	Recessed	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":400},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2109},{"Name":"Circuit Watts","Value":26},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":81.099999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"Tunable"},{"Name":"Gear","Value":"DALI LED Driver"},{"Name":"Emergency type","Value":"COMEPS"},{"Name":"Product Colour","Value":"SemiSpec Reflector,White Bezel"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Mirage3-SQ165-SS-WT-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Mirage3-SQ165-medium-ss-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Mirage3-SQ165-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"M4WYTM1.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"M4WYTM1.uld"},"IES":{"Field":"IES","Name":"IES","Value":"M4WYTM1.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"mirage3-tunable-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"mirage3-tunable-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"mirage3-tunable-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"mirage3-tunable-REVIT.zip"},"INSTALLATION_LEAFLET":{"Field":"INSTALLATION_LEAFLET","Name":"Installation Leaflet","Value":"mirage3-i1.pdf"},"PRODUCT_BROCHURE":{"Field":"PRODUCT_BROCHURE","Name":"Product Brochure","Value":"Mirage3-brochure.pdf"}}

Part Code

Product Colour

Output (lm)

Power (W)

Distribution

Colour Temperature

Length / Diameter (mm)

Driver Type

Emergency Type

Mounting

SemiSpec Reflector,White Bezel

2109

Wide

Tunable

173

DALI LED Driver

N/A

Recessed

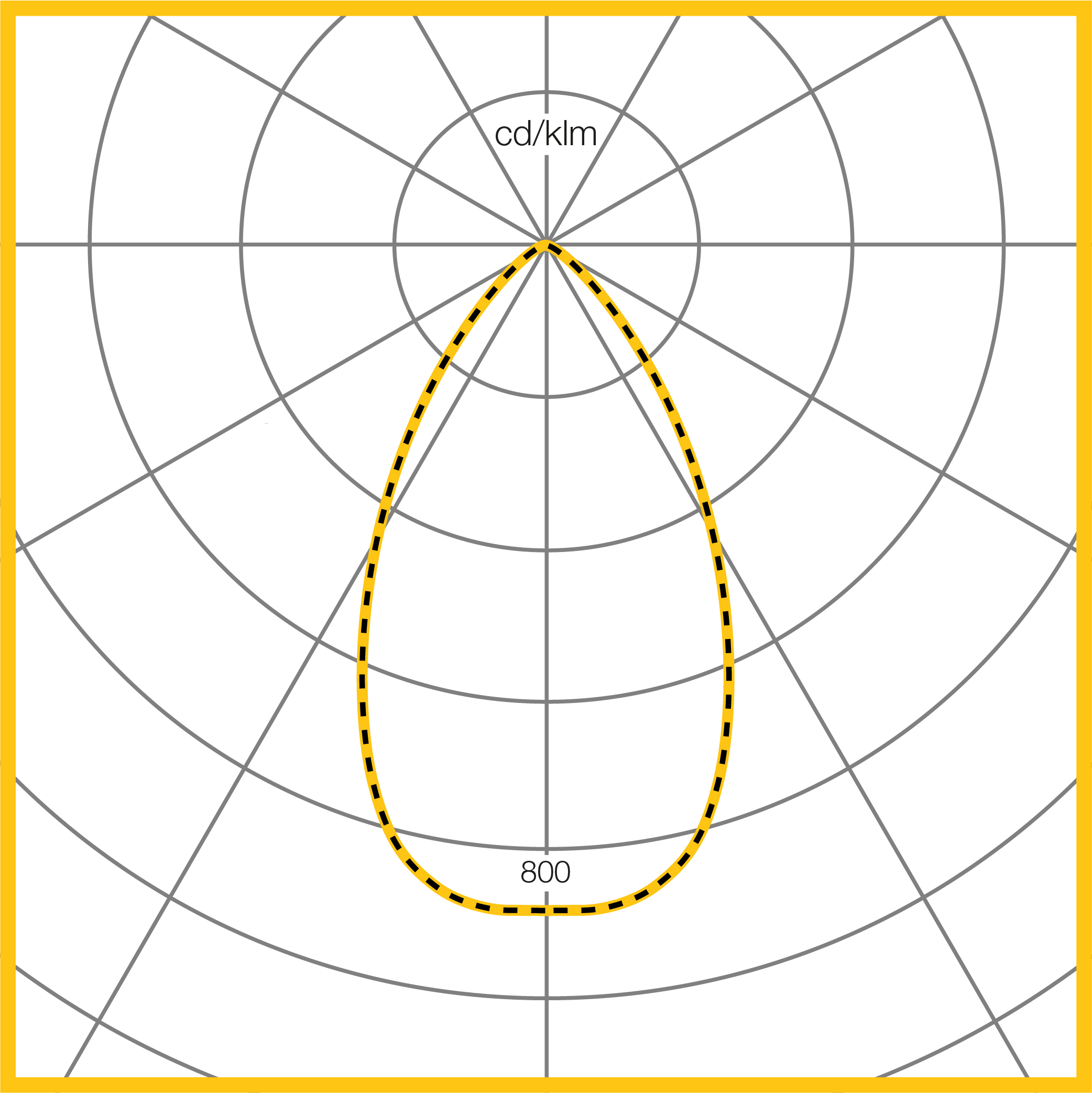

{"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Mirage3-SQ165-SS-WT-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Mirage3-SQ165-medium-ss-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Mirage3-SQ165-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"M4WYTM1.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"M4WYTM1.uld"},"IES":{"Field":"IES","Name":"IES","Value":"M4WYTM1.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"mirage3-tunable-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"mirage3-tunable-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"mirage3-tunable-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"mirage3-tunable-REVIT.zip"},"INSTALLATION_LEAFLET":{"Field":"INSTALLATION_LEAFLET","Name":"Installation Leaflet","Value":"mirage3-i1.pdf"},"PRODUCT_BROCHURE":{"Field":"PRODUCT_BROCHURE","Name":"Product Brochure","Value":"Mirage3-brochure.pdf"}}

SemiSpec Reflector,White Bezel

2109

Wide

Tunable

173

DALI LED Driver

3hr Maint

Recessed

SemiSpec Reflector,White Bezel

2109

Wide

Tunable

173

DALI LED Driver

COMEPS

Recessed

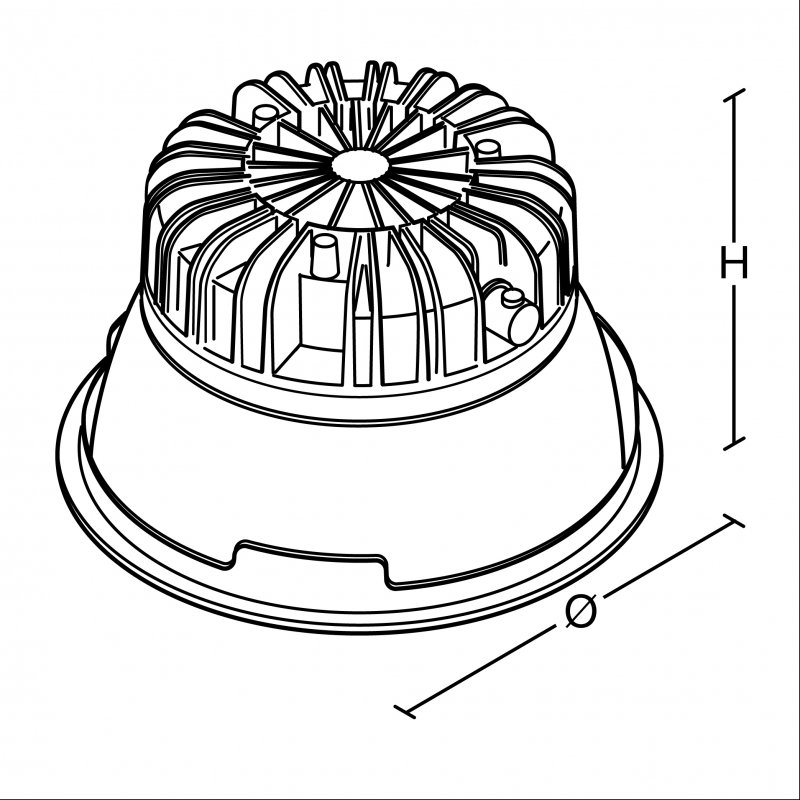

VERSION	H	KG	KG(EM)	Ø	CAØ
Round body	104	1	2	173	165

VERSION

KG(EM)

CAØ

Round body

104

173

165

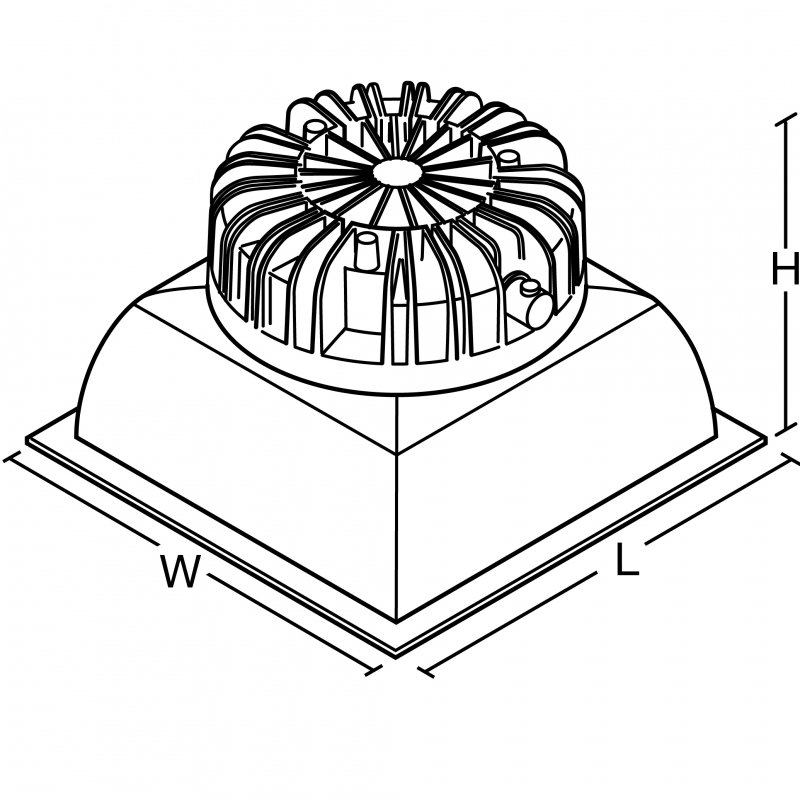

VERSION	L	W	H	KG	KG(EM)	Cut Aperture
Square body	173	173	108	1	2	165x165

VERSION

KG(EM)

Cut Aperture

Square body

173

108

165x165
