Mirage 3 C165 MRI | Whitecroft Lighting

C165 MRI

Optics

Light outputs:
- Low - 1712 lm (3000K) and 1796 lm (4000K)
- High - 2520 lm (3000K) and 2652 lm (4000K)
Efficacies up to 111 ll/cw
Semi-Specular reflector
Available with colour temperatures of 3000K and 4000K
Ra90 colour rendering
Medium beam distribution with lens for optimum glare control

For specific product variant information, including lifetime, efficacy, power, output and electrical data, please click on the individual part number under 'Order Codes' and view the datasheet

Lifetime Data
Version	L70B50	L80B50	L90B50
16.1W	>100K	>100K	65K
25.3W	>100K	>100K	65K

Body

IP44 as standard
Precision injection moulded semi-specular reflector
Slim 11mm bezel finished in white, closest RAL colour 9003
Graphite embedded heatsink
Suitable for ceilings 5-50mm thick
1-10V analogue drivers suitable for MRI applications to be ordered separately
Recommended maximum/minimum number of luminaires per driver (minimum where being dimmed):

Driver	Maximum 16.1W	Maximum 25.3W	Minimum 16.1W	Minimum 25.3W
M5D100W	6	3	2	1
M5D185W	10	6	3	2
M5D320W	18	10	4	3

Recommended maximum circuit lengths:
- 30m using 100W driver with 1.5mm² cable
- 20m using 185W driver with 1.5mm² cable
- 12m using 320W driver with 1.5mm² cable
- 18m using 320W driver with 2.5mm² cable
- Note, there is no maximum distance from the driver to the first luminaire however must be in compliance with the above criteria.

Enquire about this product

Family Datasheet

Product Downloads

Customise your solution

Explore custom made

Create your own

Customise this product

Enquire now Find out more

Looking for a custom made solution?

Our Custom Made facility caters to your unique requirements, whether you need completely bespoke luminaires or adaptations to standard products. Please complete the form below and we will be in touch to discuss your unique requirements.

Semi Specular Reflector Number of Parts 4

Click on part code below for downloads

Part Code	Product Colour	Colour Temperature	Driver Type	Emergency Type	Distribution	Length / Diameter (mm)	Output (lm)	Power (W)	Accessory
M5M34K9M1	SemiSpec Reflector,White Bezel	4000K, Ra90	Analogue Dim Driver	N/A	Medium	173	1796	16.1	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1796},{"Name":"Circuit Watts","Value":16.10000000000000142108547152020037174224853515625},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":111.599999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra90"},{"Name":"Gear","Value":"Analogue Dim Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"SemiSpec Reflector,White Bezel"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Mirage3-C165-MRI-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Mirage3-C165-medium-ss-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Mirage3-C165-MRI-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"M5M34K9M1.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"M5M44K9M1.uld"},"IES":{"Field":"IES","Name":"IES","Value":"M5M34K9M1.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Mirage3-C165-MRI-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Mirage3-C165-MRI-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Mirage3-C165-MRI-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Mirage3-C165-MRI-REVIT.zip"}}
M5M33K9M1	SemiSpec Reflector,White Bezel	3000K, RA90	Analogue Dim Driver	N/A	Medium	173	1712	16.1	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":1712},{"Name":"Circuit Watts","Value":16.10000000000000142108547152020037174224853515625},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":106.2999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA90"},{"Name":"Gear","Value":"Analogue Dim Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"SemiSpec Reflector,White Bezel"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Mirage3-C165-MRI-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Mirage3-C165-medium-ss-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Mirage3-C165-MRI-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"M5M33K9M1.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"M5M44K9M1.uld"},"IES":{"Field":"IES","Name":"IES","Value":"M5M33K9M1.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Mirage3-C165-MRI-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Mirage3-C165-MRI-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Mirage3-C165-MRI-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Mirage3-C165-MRI-REVIT.zip"}}
M5M44K9M1	SemiSpec Reflector,White Bezel	4000K, Ra90	Analogue Dim Driver	N/A	Medium	173	2652	25.3	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2652},{"Name":"Circuit Watts","Value":25.300000000000000710542735760100185871124267578125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":104.7999999999999971578290569595992565155029296875},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"4000K, Ra90"},{"Name":"Gear","Value":"Analogue Dim Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"SemiSpec Reflector,White Bezel"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Mirage3-C165-MRI-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Mirage3-C165-medium-ss-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Mirage3-C165-MRI-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"M5M44K9M1.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"M5M44K9M1.uld"},"IES":{"Field":"IES","Name":"IES","Value":"M5M44K9M1.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Mirage3-C165-MRI-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Mirage3-C165-MRI-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Mirage3-C165-MRI-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Mirage3-C165-MRI-REVIT.zip"}}
M5M43K9M1	SemiSpec Reflector,White Bezel	3000K, RA90	Analogue Dim Driver	N/A	Medium	173	2520	25.3	N	[{"Name":"LED Life Performance","Value":">100,K"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":2520},{"Name":"Circuit Watts","Value":25.300000000000000710542735760100185871124267578125},{"Name":"LOR","Value":100},{"Name":"Lumen per circuit watt","Value":99.599999999999994315658113919198513031005859375},{"Name":"Lamp type","Value":"LED"},{"Name":"Colour Temperature","Value":"3000K, RA90"},{"Name":"Gear","Value":"Analogue Dim Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"SemiSpec Reflector,White Bezel"},{"Name":"Integral Controls","Value":"N\/A"}] {"PRODUCT_IMAGE":{"Field":"PRODUCT_IMAGE","Name":"Product Image","Value":"Mirage3-C165-MRI-p1.jpg"},"POLAR_DIAGRAM":{"Field":"POLAR_DIAGRAM","Name":"Polar Diagram","Value":"Mirage3-C165-medium-ss-pp1.jpg"},"DIMENSION_DIAGRAM":{"Field":"DIMENSION_DIAGRAM","Name":"Dimension Diagram","Value":"Mirage3-C165-MRI-d1.jpg"},"LDT":{"Field":"LDT","Name":"LDT","Value":"M5M43K9M1.ldt"},"ULD":{"Field":"ULD","Name":"ULD","Value":"M5M44K9M1.uld"},"IES":{"Field":"IES","Name":"IES","Value":"M5M43K9M1.ies"},"LDT_ZIP":{"Field":"LDT_ZIP","Name":"LDT ZIP","Value":"Mirage3-C165-MRI-LDT.zip"},"ULD_ZIP":{"Field":"ULD_ZIP","Name":"ULD ZIP","Value":"Mirage3-C165-MRI-DIALUX.zip"},"IES_ZIP":{"Field":"IES_ZIP","Name":"IES ZIP","Value":"Mirage3-C165-MRI-IES.zip"},"REVIT_ZIP":{"Field":"REVIT_ZIP","Name":"REVIT ZIP","Value":"Mirage3-C165-MRI-REVIT.zip"}}

Accessory Number of Parts 3

Click on part code below for downloads

Part Code	Product Colour	Colour Temperature	Driver Type	Emergency Type	Distribution	Length / Diameter (mm)	Output (lm)	Power (W)	Accessory
M5D100W	N/A	N/A	Analogue Dim Driver	N/A	N/A	220	N/A	N/A	Y	[{"Name":"LED Life Performance","Value":"N\/A"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":"N\/A"},{"Name":"Circuit Watts","Value":"N\/A"},{"Name":"LOR","Value":"N\/A"},{"Name":"Lumen per circuit watt","Value":"N\/A"},{"Name":"Lamp type","Value":""},{"Name":"Colour Temperature","Value":"N\/A"},{"Name":"Gear","Value":"Analogue Dim Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"N\/A"},{"Name":"Integral Controls","Value":"N\/A"}] []
M5D185W	N/A	N/A	Analogue Dim Driver	N/A	N/A	228	N/A	N/A	Y	[{"Name":"LED Life Performance","Value":"N\/A"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":"N\/A"},{"Name":"Circuit Watts","Value":"N\/A"},{"Name":"LOR","Value":"N\/A"},{"Name":"Lumen per circuit watt","Value":"N\/A"},{"Name":"Lamp type","Value":""},{"Name":"Colour Temperature","Value":"N\/A"},{"Name":"Gear","Value":"Analogue Dim Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"N\/A"},{"Name":"Integral Controls","Value":"N\/A"}] []
M5D320W	N/A	N/A	Analogue Dim Driver	N/A	N/A	252	N/A	N/A	Y	[{"Name":"LED Life Performance","Value":"N\/A"},{"Name":"Emergency Output","Value":"N\/A"},{"Name":"Power Factor","Value":">0.9"},{"Name":"Initial Lumens","Value":"N\/A"},{"Name":"Circuit Watts","Value":"N\/A"},{"Name":"LOR","Value":"N\/A"},{"Name":"Lumen per circuit watt","Value":"N\/A"},{"Name":"Lamp type","Value":""},{"Name":"Colour Temperature","Value":"N\/A"},{"Name":"Gear","Value":"Analogue Dim Driver"},{"Name":"Emergency type","Value":"N\/A"},{"Name":"Product Colour","Value":"N\/A"},{"Name":"Integral Controls","Value":"N\/A"}] []

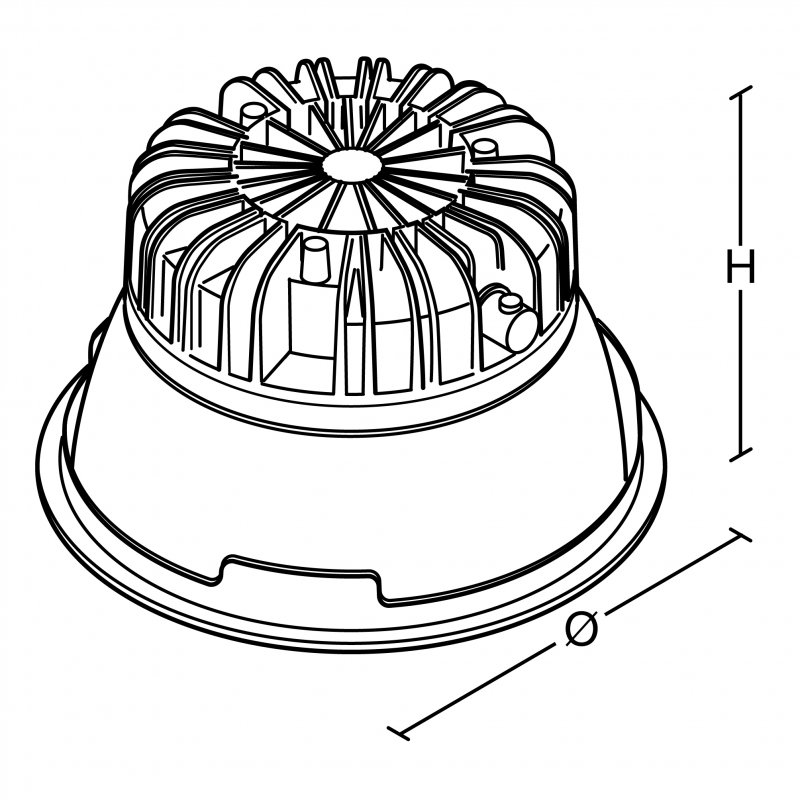

VERSION	Ø	H	KG	KG(EM)	CAØ Cut Aperture
C165 MRI	173	104	1.0	2.0	165

Photometric Performance

C165 Medium Semi-specular

LOR = 100%

Recessed downlighter with a common appearance across the product family. Narrow 11mm width bezel and shallow depth body. Graphite heat sink for optimum thermal management and superior optics designed for maximum visual comfort. Simple spring ceiling retention method to suit ceiling thicknesses between 5-30mm. Supplied with connected remote driver. Large Round body, 165mm diameter cut out, 173mm over bezel. MRI version for specialist applications such as Healthcare MRI Rooms requiring no ferrous metals or internal electronics - as Whitecroft MIRAGE 3 C165 MRI

Product Downloads

Single download

Add to ZIP

PDF Mirage 3 C165 MRI Datasheet

PDF Installation Leaflet

PDF Product Brochure

ZIP LDT

ZIP Dialux

ZIP ies

ZIP REVIT

PDF Mirage 3 - Part Code Logic
