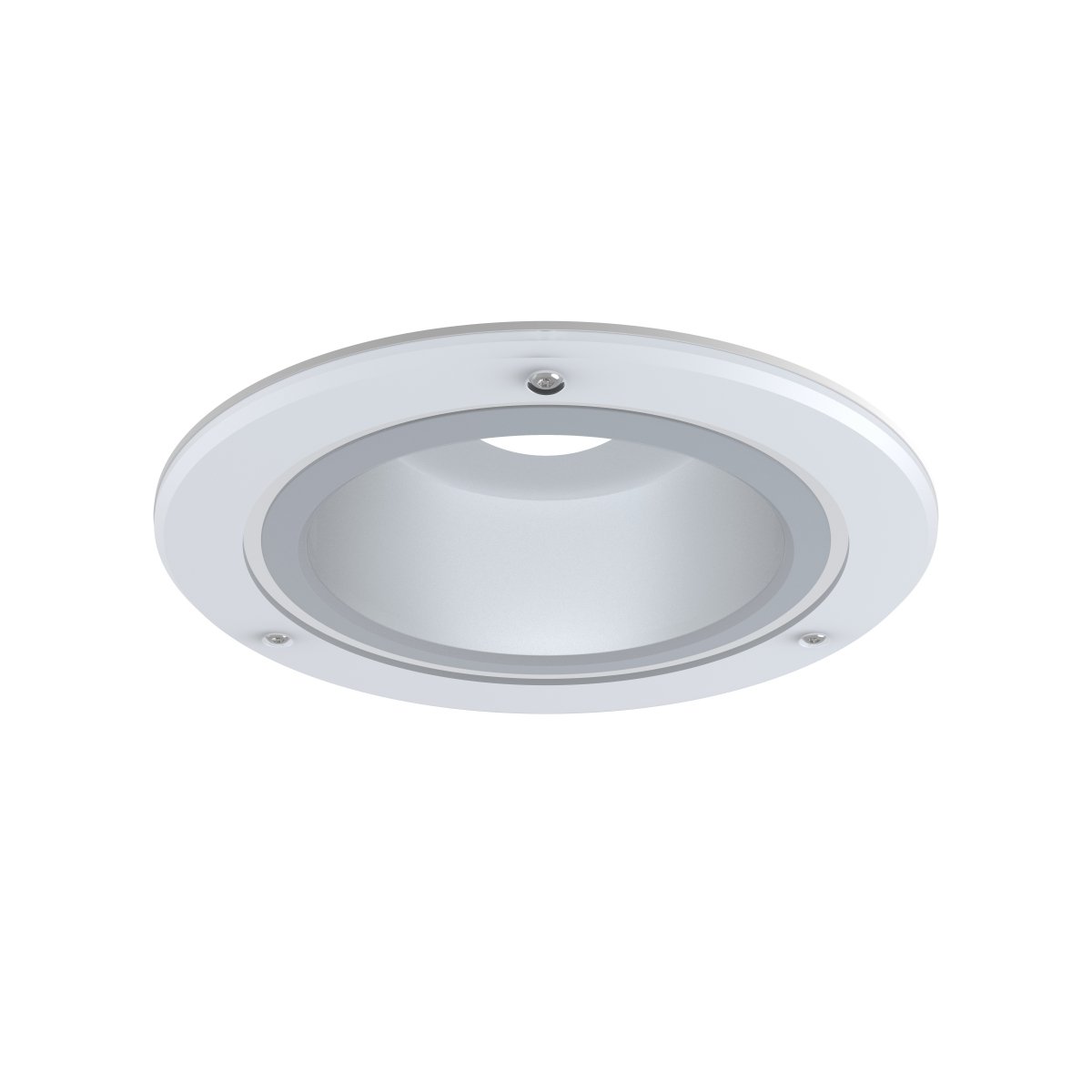

Mirage 3 MSU Kit

Mirage 3 MSU Kit

Mirage 3 MSU Kit

Overview

A robust protective kit comprising mounting frames, polycarbonate diffuser and tamperproof fixings. Independently tested and approved to comply the rigorous requirements of the Department of Health, Medium Secure Specification (MSS). Over and above IK10 impact rated and anti-ligature, the kit enables use of a standard luminaire in a Medium Secure Unit (MSU) environment.

Optics

  • 6mm thick clear polycarbonate
  • Tp(a) rated
  • Only 10% reduction in light output from standard luminaire

Body

  • To be used in conjunction with a standard Mirage 3 C165 luminaire
  • Luminaire to be specified separately (see Mirage 3 C165 web page)
  • 1.2mm thick sheet steel ceiling plates above and below the ceiling
  • Retained by tamperproof fixing screws and integrated cage nuts
  • Maximum ceiling thickness 40mm
  • Ceiling plates finished white RAL 9003
  • IP44 ingress protection when combined with Mirage 3
  • Requires special access tool for installation and maintenance

Customise your solution

Explore custom made

Create your own

Customise this product

Looking for a custom made solution?

Our Custom Made facility caters to your unique requirements, whether you need completely bespoke luminaires or adaptations to standard products. Please complete the form below and we will be in touch to discuss your unique requirements.

Mirage 3 MSU Kit

Description Order Code
Mirage 3 MSU Kit Only MSKITMIRAGE3

Luminaire to be ordered separately

Accessories

Description Order Code
Special access tool HAL-KEY3
Dimensions Diagram 1
VERSION KG Ø
Mirage 3 MSU Kit Only 1.5 237

Requires void depth of 110mm from ceiling face for installation.
See Mirage 3 C165 web page for luminaire dimensions.

Photometic Performance

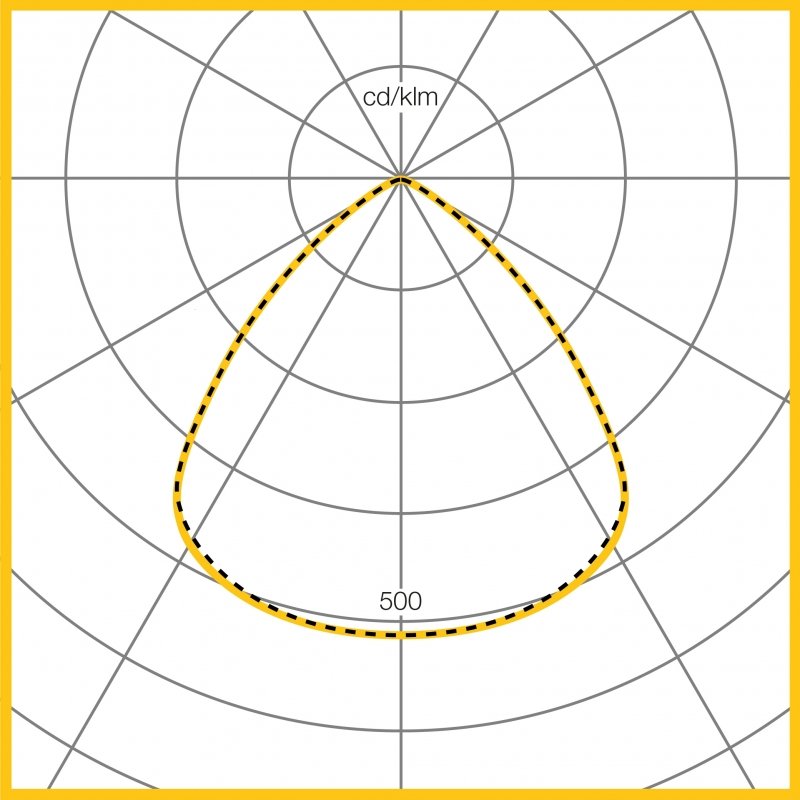

Photometic Performance Diagram - 4000K LED, 1776 lumen, wide beam
4000K LED, 1776 lumen, wide beam
LOR = 100%
SHR MAX = 1.62

Robust and protective kit for use with Mirage 3 downlighters in Medium Secure Units. Independently tested and approved in compliance with Department of Health, Medium Secure Specification - as Whitecroft Lighting MIRAGE 3 MSU KIT
